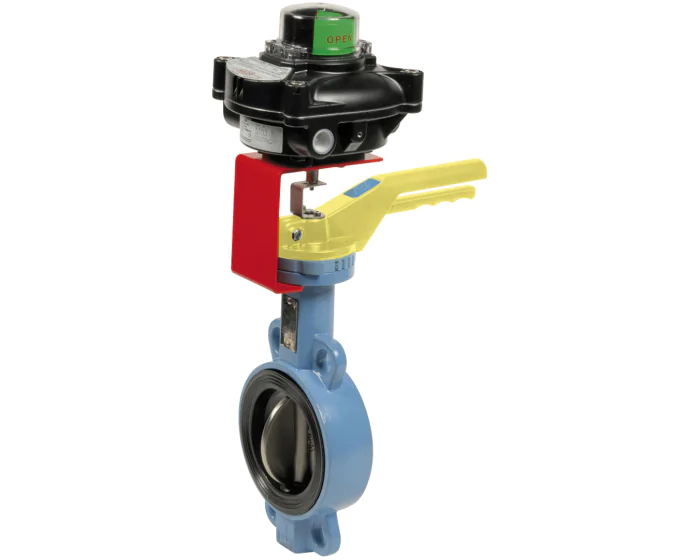

Ductile iron body (EN-GJS-500-7), 316 stainless steel disc, NBR seat. PS : 5 bar - TS : 60°C. NF-Rob-Gaz certification up to 5 bar. Mounting between flanges PN10/16. Limit switch box SK012, 2 dry contacts SPDT. ATEX II 2 G/D Ex d IIC T6.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| ATEX atmosphere | IIC |
| Shaft/stem matérial | Stainless steel 304 |
| Switch type | dry SPDT |
| DN | DN40 - 1''1/2 |
| Face to Face (mm) | 33.0 |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Seat | NBR - Gas |
| Body material | Ductile iron |
| ATEX protection mode | Ex d |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 |
| TS max (°C) | 90 |
| TS min (°C) | -10 |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
| CE | Risk category III |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 Ductile iron Concentric DN40 - 1''1/2 | 2605930477012 | S1009055 |
€533.79
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN50 - 2'' | 2605940477012 | S1009056 |
€537.97
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN65 - 2''1/2 | 2605950477012 | S1009057 |
€548.46
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN80 - 3'' | 2605960477012 | S1009058 |
€561.96
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN100 - 4'' | 2605970477012 | S1009059 |
€578.66
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN125 - 5'' | 2605980477012 | S1009060 |
€623.40
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN150 - 6'' | 2605990477012 | S1009061 |
€648.66
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN200 - 8'' | 2606000477012 | S1009062 |
€756.64
(excl. btw)
|
add to cart |
