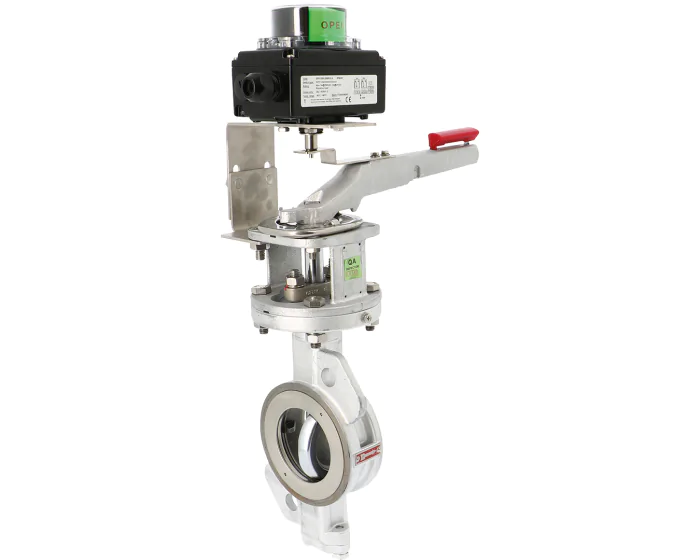

Double offset butterfly valve designed with stainless steel body, disc and shaft, PTFE seats and packing gland. PS: 25 bar. TS: -10°C / + 210°C. Mounting between flanges PN25. Fire safety. IP67 SF limit switch box.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Shaft/stem matérial | Stainless steel 316 |
| ATEX compatible | No |
| Switch type | dry SPDT |
| DN | DN65 - 2''1/2 |
| Face to Face (mm) | 46.0 |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| Packing gland | PTFE - Graphite |
| PS (bar) | 25 |
| Connections | Between flanges PN25 |
| Seats | PTFE-Graphite |
| TS max (°C) | 210 |
| TS min (°C) | -10 |
| Butterfly valve design | Double offset |
| Wafer/lug | Wafer |
| Warranty period | 1 year |
| CE | 2014/68/EU |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN25 Stainless steel CF8M (1.4408) Double offset DN65 - 2''1/2 | 2609710462012 | S1009112 |
€981.29
(excl. btw)
|
add to cart |
| Between flanges PN25 Stainless steel CF8M (1.4408) Double offset DN80 - 3'' | 2609720462012 | S1009113 |
€1,211.21
(excl. btw)
|
add to cart |
| Between flanges PN25 Stainless steel CF8M (1.4408) Double offset DN100 - 4'' | 2609730462012 | S1009114 |
€1,359.91
(excl. btw)
|
add to cart |
| Between flanges PN25 Stainless steel CF8M (1.4408) Double offset DN125 - 5'' | 2609740462012 | S1009115 |
€1,637.74
(excl. btw)
|
add to cart |
| Between flanges PN25 Stainless steel CF8M (1.4408) Double offset DN150 - 6'' | 2609750462012 | S1009116 |
€1,818.51
(excl. btw)
|
add to cart |
