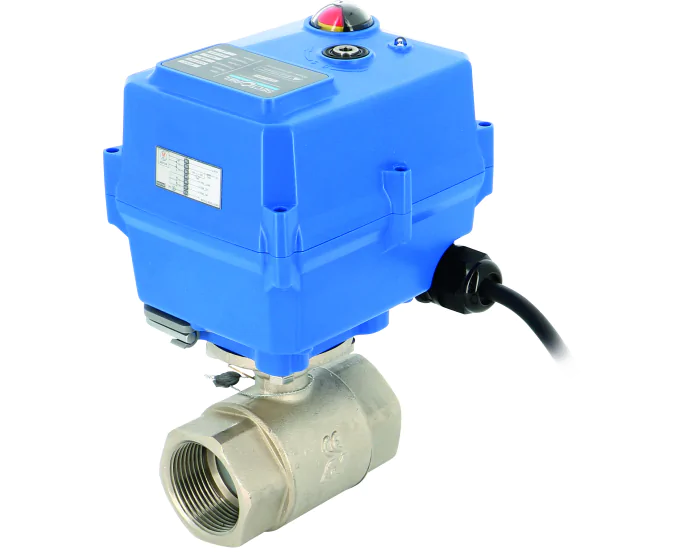

The 502 ball valve has a CW 617 N brass body and ball, PTFE seats. Actuation with electric actuator TCR-N-KT32 capacitor return. ACS approval from 1/2'' to 4''. PS: 16 bar, TS: 100°C. G threaded.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Manual override | By key |
| Declutchable | No |
| DN | DN15 - 1/2'' |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Body material | Brass CW617N |
| Number of ways | 2 |
| Bore | Full |
| PS (bar) | 16 |
| Connections | BSP FF |
| Anti-condensation heater | Standard |
| Positive safety | Yes |
| Function | On-off |
| Electric actuator type | TCR-02N-KT32 |
| Electric actuator series | TCR Series |
| Seats | PTFE |
| Voltage | 95-265 V AC/DC |
| TS max (°C) | 100 |
| TS min (°C) | -10 |
| Ball valve design | 2-piece body |
| Positive safety type | Super capacitor |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Brass CW617N Full 2-piece body DN15 - 1/2'' 95-265 V AC/DC | 270002024120 | S1004080 |
€327.09
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN15 - 1/2'' 24 V AC/DC | 270002024121 | S1004081 |
€327.09
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN20 - 3/4'' 95-265 V AC/DC | 270003024120 | S1004082 |
€331.16
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN20 - 3/4'' 24 V AC/DC | 270003024121 | S1004083 |
€331.16
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN25 - 1'' 95-265 V AC/DC | 270004024120 | S1004084 |
€341.71
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN25 - 1'' 24 V AC/DC | 270004024121 | S1004085 |
€341.71
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN32 - 1''1/4 95-265 V AC/DC | 270005024320 | S1004086 |
€415.49
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN32 - 1''1/4 24 V AC/DC | 270005024321 | S1004087 |
€415.49
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN40 - 1''1/2 95-265 V AC/DC | 270006024320 | S1004088 |
€430.56
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN40 - 1''1/2 24 V AC/DC | 270006024321 | S1004089 |
€430.56
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN50 - 2'' 95-265 V AC/DC | 270007024320 | S1004090 |
€466.71
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN50 - 2'' 24 V AC/DC | 270007024321 | S1004091 |
€466.71
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN65 - 2''1/2 95-265 V AC/DC | 270038024320 | S1004092 |
€532.51
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN65 - 2''1/2 24 V AC/DC | 270038024321 | S1004093 |
€532.51
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN80 - 3'' 95-265 V AC/DC | 270039024620 | S1004094 |
€728.96
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN80 - 3'' 24 V AC/DC | 270039024621 | S1004095 |
€728.96
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN100 - 4'' 95-265 V AC/DC | 270040024620 | S1004096 |
€1,018.37
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN100 - 4'' 24 V AC/DC | 270040024621 | S1004097 |
€1,018.37
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN8 - 1/4'' 95-265 V AC/DC | 270090024120 | S1004098 |
€355.37
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN8 - 1/4'' 24 V AC/DC | 270090024121 | S1004099 |
€355.37
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN10 - 3/8'' 95-265 V AC/DC | 270091024120 | S1004100 |
€350.01
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN10 - 3/8'' 24 V AC/DC | 270091024121 | S1004101 |
€350.01
(excl. btw)
|
add to cart |
