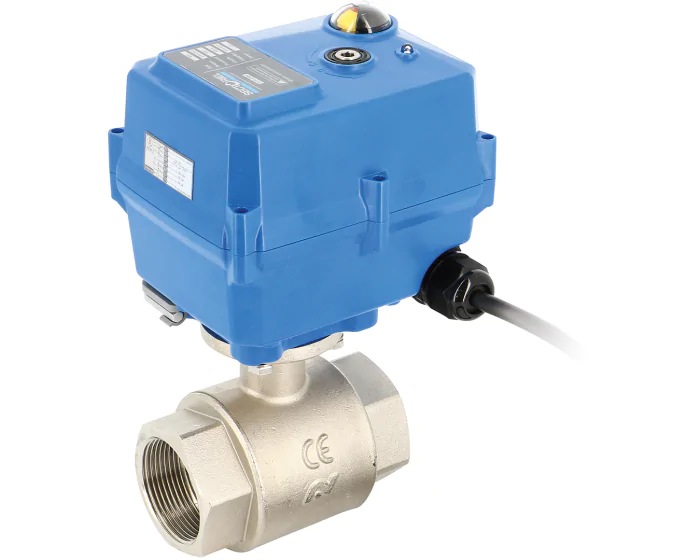

The 502 ball valve has a CW 617 N brass body and ball, PTFE seats. Actuation with TCR-N electric actuator. ACS approval from 1/2'' to 4''. PS: 16 bar, TS: 100°C. Threaded G.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Manual override | By key |
| Declutchable | No |
| DN | DN15 - 1/2'' |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Body material | Brass CW617N |
| Number of ways | 2 |
| Bore | Full |
| PS (bar) | 16 |
| Connections | BSP FF |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | TCR-02N |
| Electric actuator series | TCR Series |
| Seats | PTFE |
| Voltage | 95-265 V AC/DC |
| TS max (°C) | 100 |
| TS min (°C) | -10 |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Brass CW617N Full 2-piece body DN15 - 1/2'' 95-265 V AC/DC | 270002024110 | S1003823 |
€258.84
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN15 - 1/2'' 24 V AC/DC | 270002024111 | S1003824 |
€258.84
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN20 - 3/4'' 95-265 V AC/DC | 270003024110 | S1003825 |
€275.46
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN20 - 3/4'' 24 V AC/DC | 270003024111 | S1003826 |
€275.46
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN25 - 1'' 95-265 V AC/DC | 270004024110 | S1003827 |
€277.10
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN25 - 1'' 24 V AC/DC | 270004024111 | S1003828 |
€277.10
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN32 - 1''1/4 95-265 V AC/DC | 270005024310 | S1003829 |
€329.81
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN32 - 1''1/4 24 V AC/DC | 270005024311 | S1003830 |
€329.81
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN40 - 1''1/2 95-265 V AC/DC | 270006024310 | S1003831 |
€344.89
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN40 - 1''1/2 24 V AC/DC | 270006024311 | S1003832 |
€344.89
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN50 - 2'' 95-265 V AC/DC | 270007024310 | S1003833 |
€381.06
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN50 - 2'' 24 V AC/DC | 270007024311 | S1003834 |
€381.06
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN65 - 2''1/2 95-265 V AC/DC | 270038024310 | S1003835 |
€461.46
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN65 - 2''1/2 24 V AC/DC | 270038024311 | S1003836 |
€461.46
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN80 - 3'' 95-265 V AC/DC | 270039024610 | S1003837 |
€678.77
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN80 - 3'' 24 V AC/DC | 270039024611 | S1003838 |
€678.77
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN100 - 4'' 95-265 V AC/DC | 270040024610 | S1003839 |
€936.24
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN100 - 4'' 24 V AC/DC | 270040024611 | S1003840 |
€936.24
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN8 - 1/4'' 95-265 V AC/DC | 270090024110 | S1003841 |
€277.21
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN8 - 1/4'' 24 V AC/DC | 270090024111 | S1003842 |
€277.21
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN10 - 3/8'' 95-265 V AC/DC | 270091024110 | S1003843 |
€284.34
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN10 - 3/8'' 24 V AC/DC | 270091024111 | S1003844 |
€284.34
(excl. btw)
|
add to cart |
