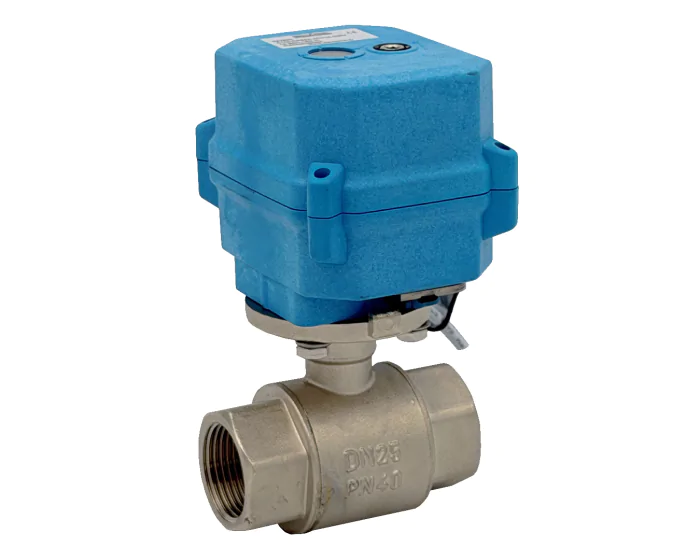

The 502 brass ball valve has a CW 617 N brass body and ball, PTFE seats. Actuation with 2-wire electric actuator RC (capacitor return) T15. ACS approval. PS: 16 bar, TS: 100°C. G threaded.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Manual override | By key |
| Declutchable | No |
| DN | DN15 - 1/2'' |
| Duty service | S4 duty service - 30% |
| Torque limiter | No |
| Recommended location | Indoor |
| Body material | Brass CW617N |
| Number of ways | 2 |
| Bore | Full |
| Power (W) | 30 |
| Connections | BSP FF |
| Positive safety | Yes |
| Function | On-off |
| Electric actuator type | T 15 |
| Operating time (s) | 12.0 |
| Voltage | 230 V AC |
| TS max (°C) | 100 |
| TS min (°C) | -10 |
| Ball valve design | 2-piece body |
| Positive safety type | Super capacitor |
| Warranty period | 1 year |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Brass CW617N Full 2-piece body DN15 - 1/2'' 230 V AC | 270002022500 | S1003807 |
€190.44
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN20 - 3/4'' 230 V AC | 270003022500 | S1003808 |
€194.79
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN25 - 1'' 230 V AC | 270004022500 | S1003809 |
€203.77
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body 230 V AC DN8 - 1/4'' | 270090022500 | S1003810 |
€215.36
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body 230 V AC DN10 - 3/8'' | 270091022500 | S1003811 |
€216.11
(excl. btw)
|
add to cart |
