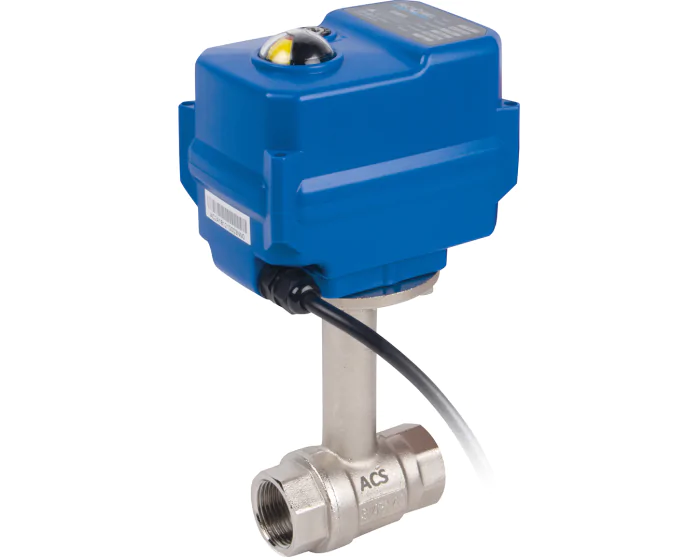

The 500 HC ball valve has a CW 617 N brass body and ball, PTFE seats. Actuation with TCR-N electric actuator. ACS approval from 1/2'' to 4''. PS: 16 bar, TS: 100°C. Threaded G
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Manual override | By key |
| Declutchable | No |
| DN | DN15 - 1/2'' |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Body material | Brass CW617N |
| Number of ways | 2 |
| Bore | Full |
| PS (bar) | 16 |
| Connections | BSP FF |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | TCR-02N |
| Electric actuator series | TCR Series |
| Seats | PTFE |
| Voltage | 95-265 V AC/DC |
| TS max (°C) | 100 |
| TS min (°C) | -10 |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Brass CW617N Full 2-piece body DN15 - 1/2'' 95-265 V AC/DC | 270102024110 | S1004550 |
€265.34
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN15 - 1/2'' 24 V AC/DC | 270102024111 | S1004551 |
€265.34
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN20 - 3/4'' 95-265 V AC/DC | 270103024110 | S1004552 |
€282.39
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN20 - 3/4'' 24 V AC/DC | 270103024111 | S1004553 |
€282.39
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN25 - 1'' 95-265 V AC/DC | 270104024110 | S1004554 |
€293.73
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN25 - 1'' 24 V AC/DC | 270104024111 | S1004555 |
€293.73
(excl. btw)
|
add to cart |
