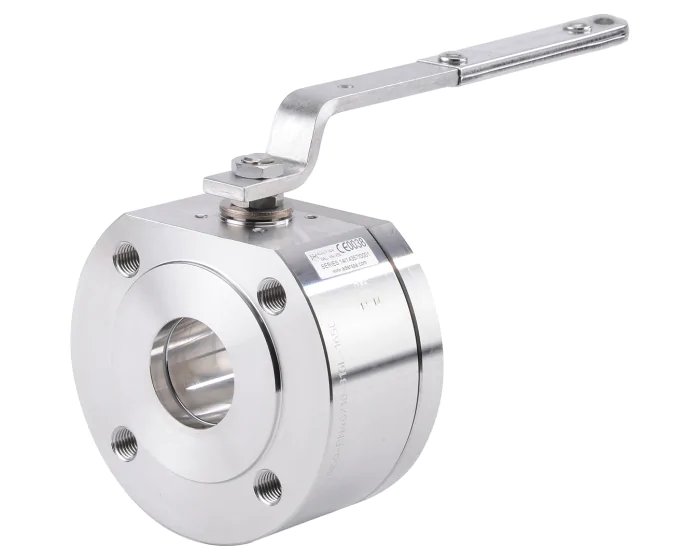

ADLER stainless steel ball valve 770 wafer RF PN16 + ISO pad
€232.81
(excl. btw)
The Sferaco 770 series ball valve, narrow 2-piece body, Wafer, between flanges PN16/40, fire safe, in stainless steel for chemical and pharmaceutical industries, hydraulic installations and compressed air.
Specification
Value
DN inches NPS
1/2''
Option certificate 3.1
Yes
Construction standard
BS EN 12516-2 - ISO 14313
CE risk category
III Module H
NACE MR0175
Yes
Fire safe standard
ISO 10497:2004
SIL
SIL 3
EN face-to-face standard
EN 558 Series 100
Face to face standard
EN 558 Series 100
Brand
ADLER
Tightness test standard
EN 12266-1 Rate A
Stem sealing material
15% Graphite filled PTFE gland packing
Antistatic device
Yes
Steam
Yes
Opening device
Handle
Fugitive emissions standard
ISO 15848-1 Class A
Application
Industry
ATEX atmosphere
Group II Cat. 2G/2D
Shaft/stem matérial
Stainless steel ASTM A479 type 316L
Square, star (mm)
MEP Ø10x6
ATEX compatible
Yes
Torque (Nm)
6
DN
DN15 - 1/2''
Face to Face (mm)
340.0
Fluid
Hydrocarbons. gas
Body material
Stainless steel F316/F316L
Number of ways
2
Bore
Full
ISO pad 5211
Yes
Packing gland
Yes
PS (bar)
40
Connections
Flanged PN10/40
Seats
PTFE
Ball material
Stainless steel ASTM A479 316L
TS max (°C)
200
TS min (°C)
-28
Ball valve design
Wafer
ATEX zone
1 & 21. 2 & 22
Warranty period
2 years
CE
Yes
Handle material
Carbon steel
Handle type
Yellow lever
Fire safe
Yes
If you have any questions about this product, please feel free to contact us .
Product Name
Product Number
EVAC Number
Price
Add to Cart
7885
Flanged PN10/40 Stainless steel F316/F316L Full Wafer DN15 - 1/2'' Flanged PN10/40
770015
S1007973
€232.81
(excl. btw)
add to cart
7886
Flanged PN10/40 Stainless steel F316/F316L Full Wafer DN20 - 3/4'' Flanged PN10/40
770020
S1007974
€260.87
(excl. btw)
add to cart
7887
Flanged PN10/40 Stainless steel F316/F316L Full Wafer DN25 - 1'' Flanged PN10/40
770025
S1007975
€316.97
(excl. btw)
add to cart
7888
Flanged PN10/40 Stainless steel F316/F316L Full Wafer DN32 - 1''1/4 Flanged PN10/40
770032
S1007976
€454.41
(excl. btw)
add to cart
7889
Flanged PN10/40 Stainless steel F316/F316L Full Wafer DN40 - 1''1/2 Flanged PN10/40
770040
S1007977
€600.27
(excl. btw)
add to cart
7890
Flanged PN10/40 Stainless steel F316/F316L Full Wafer DN50 - 2'' Flanged PN10/40
770050
S1007978
€914.43
(excl. btw)
add to cart
7891
Flanged PN10/40 Stainless steel F316/F316L Full Wafer DN65 - 2''1/2 Flanged PN10/16
770065
S1007979
€1,304.33
(excl. btw)
add to cart
7892
Flanged PN10/40 Stainless steel F316/F316L Full Wafer DN80 - 3'' Flanged PN10/40
770080
S1007980
€2,061.69
(excl. btw)
add to cart
7893
Flanged PN10/40 Stainless steel F316/F316L Full Wafer DN100 - 4'' Flanged PN10/16
770100
S1007981
€3,189.29
(excl. btw)
add to cart
7894
Flanged PN10/40 Stainless steel F316/F316L Full Wafer DN125 - 5'' Flanged PN10/16
770125
S1007982
€3,368.30
(excl. btw)
add to cart
7895
Flanged PN10/40 Stainless steel F316/F316L Full Wafer DN150 - 6'' Flanged PN10/16
770150
S1007983
€5,400.90
(excl. btw)
add to cart
7896
Flanged PN10/40 Stainless steel F316/F316L Full Wafer DN200 - 8'' Flanged PN16
770200
S1007984
€7,315.44
(excl. btw)
add to cart
