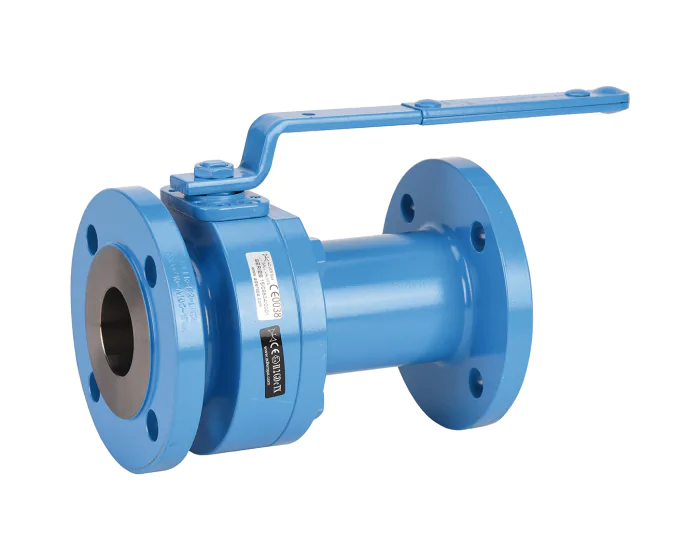

Name: ADLER carbon steel ball valve 754 2 piece body RF PN25
Brand: Adler
SKU: 6825
Price: 252.45714285714 EUR
Availability: InStock

ADLER carbon steel ball valve 754 2 piece body RF PN25

€252.46 (excl. btw)

The Sferaco 754 series ball valve, 2-piece body model with PN40 flanges, steel, ISO 10497 fire safety, adler FE2 type, motorizable, stuffing box, double tightness for industries and compressed air.

In stock Subject prior to sales
Categories : Kogelkranen

Documenten:

Certificate of conformity	Download
Manual	Download
Manual FR	Download
Other	Download
Technical datasheet	Download
Technical datasheet FR	Download

Description
Technical Specifications

Specification	Value
DN inches NPS	1/2''
Option certificate 3.1	Yes
Construction standard	BS EN 12516-2 - ISO 14313
CE risk category	III Module H
NACE MR0175	Yes
Fire safe standard	ISO 10497:2004
SIL	SIL 1
Type of paint	Epoxy
Paint coating thickness (µm)	35.00
EN face-to-face standard	EN 558 Series 1
DIN face-to-face standard	DIN 3202 F1
Face to face standard	EN 558 Series 1. DIN 3202 F1
Brand	ADLER
Tightness test standard	EN 12266-1 Rate A
Stem sealing material	15% Graphite filled PTFE gland packing
Antistatic device	Yes
Steam	Yes
Opening device	Handle
Fugitive emissions standard	ISO 15848-1 Class A
Application	Industry
ATEX atmosphere	Group II Cat. 2G/2D
Shaft/stem matérial	Stainless steel AISI 304
Square, star (mm)	MEP Ø10x6
ATEX compatible	Yes
Torque (Nm)	6
DN	DN15 - 1/2''
Face to Face (mm)	130.0
Fluid	Hydrocarbons. gas
Body material	Carbon steel ASTM A105 N
Number of ways	2
Bore	Full
ISO pad 5211	Yes
Packing gland	Yes
PS (bar)	25
Connections	Flanged PN25
Seats	PTFE
Ball material	Stainless steel ASTM A479 304L
TS max (°C)	200
TS min (°C)	-28
Ball valve design	Split body
ATEX zone	1 & 21. 2 & 22
Warranty period	2 years
CE	Yes
Main product colour	Blue
Handle material	Carbon steel
Handle type	Blue lever
Fire safe	Yes

If you have any questions about this product, please feel free to contact us.

Product Name	Product Number	EVAC Number	Price	Add to Cart
6826	Flanged PN25 Carbon steel ASTM A105 N Full Split body DN15 - 1/2'' Flanged PN25	754015	S1007024	€252.46 (excl. btw)	add to cart
6827	Flanged PN25 Carbon steel ASTM A105 N Full Split body DN20 - 3/4'' Flanged PN25	754020	S1007025	€283.31 (excl. btw)	add to cart
6828	Flanged PN25 Carbon steel ASTM A105 N Full Split body DN25 - 1'' Flanged PN25	754025	S1007026	€328.19 (excl. btw)	add to cart
6829	Flanged PN25 Carbon steel ASTM A105 N Full Split body DN32 - 1''1/4 Flanged PN25	754032	S1007027	€446.00 (excl. btw)	add to cart
6830	Flanged PN25 Carbon steel ASTM A105 N Full Split body DN40 - 1''1/2 Flanged PN25	754040	S1007028	€561.00 (excl. btw)	add to cart
6831	Flanged PN25 Carbon steel ASTM A105 N Full Split body DN50 - 2'' Flanged PN25	754050	S1007029	€715.29 (excl. btw)	add to cart
6832	Flanged PN25 Carbon steel ASTM A105 N Full Split body DN65 - 2''1/2 Flanged PN40	754065	S1007030	€1,037.86 (excl. btw)	add to cart
6833	Flanged PN25 Carbon steel ASTM A105 N Full Split body DN65 - 2''1/2 Flanged PN10/16	754066	S1007031	€1,037.86 (excl. btw)	add to cart
6834	Flanged PN25 Carbon steel ASTM A105 N Full Split body DN80 - 3'' Flanged PN25	754080	S1007032	€1,267.86 (excl. btw)	add to cart
6835	Flanged PN25 Carbon steel ASTM A105 N Full Split body DN100 - 4'' Flanged PN40	754100	S1007033	€2,805.00 (excl. btw)	add to cart
