Name: ADLER carbon steel ball valve 720 wafer RF PN16 + ISO pad
Brand: Adler
SKU: 7799
Price: 134.64285714286 EUR
Availability: InStock

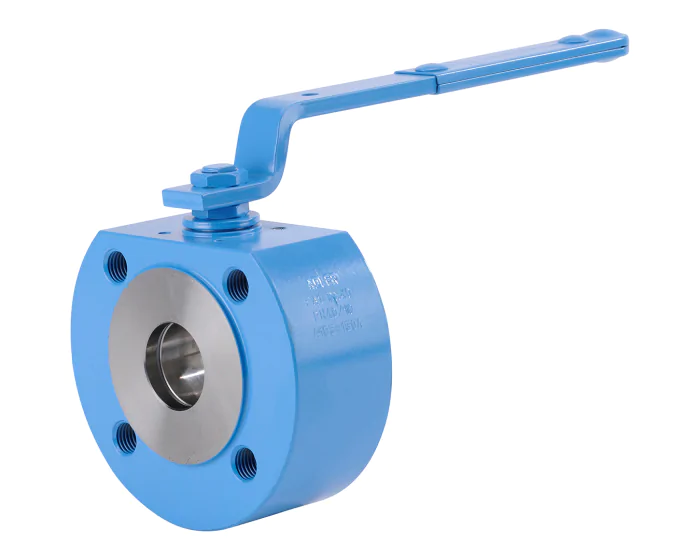

ADLER carbon steel ball valve 720 wafer RF PN16 + ISO pad

€134.64 (excl. btw)

The Sferaco 720 series ball valve, 2-piece body, Wafer, between flanges PN16/40, fire safety certified, in steel for chemical and pharmaceutical industries, hydraulic installations and compressed air.

In stock Subject prior to sales
Categories : Kogelkranen

Documenten:

Certificate of conformity	Download
Manual	Download
Manual FR	Download
Other	Download
Technical datasheet	Download
Technical datasheet FR	Download

Description
Technical Specifications

Specification	Value
DN inches NPS	1/2''
Option certificate 3.1	Yes
Construction standard	BS EN 12516-2 - ISO 14313
CE risk category	III Module H
NACE MR0175	Yes
Fire safe standard	ISO 10497:2004
SIL	SIL 1
Type of paint	Epoxy
Paint coating thickness (µm)	35.00
EN face-to-face standard	EN 558 Series 100
Face to face standard	EN 558 Series 100
Brand	ADLER
Tightness test standard	EN 12266-1 Rate A
Stem sealing material	15% Graphite filled PTFE gland packing
Antistatic device	Yes
Steam	Yes
Opening device	Handle
Fugitive emissions standard	ISO 15848-1 Class A
Application	Industry
ATEX atmosphere	Group II Cat. 2G/2D
Shaft/stem matérial	Stainless steel AISI 304
Square, star (mm)	MEP Ø10x6
ATEX compatible	Yes
Torque (Nm)	6
DN	DN15 - 1/2''
Face to Face (mm)	35.0
Fluid	Hydrocarbons. gas
Body material	Carbon steel ASTM A105 N
Number of ways	2
Bore	Full
ISO pad 5211	Yes
Packing gland	Yes
PS (bar)	40
Connections	Flanged PN10/40
Seats	PTFE
Ball material	Stainless steel ASTM A479 304L
TS max (°C)	200
TS min (°C)	-28
Ball valve design	Wafer
ATEX zone	1 & 21. 2 & 22
Warranty period	2 years
CE	Yes
Main product colour	Blue
Handle material	Carbon steel
Handle type	Blue lever
Fire safe	Yes

If you have any questions about this product, please feel free to contact us.

Product Name	Product Number	EVAC Number	Price	Add to Cart
7800	Flanged PN10/40 Carbon steel ASTM A105 N Full Wafer DN15 - 1/2'' Flanged PN10/40	720015	S1007895	€134.64 (excl. btw)	add to cart
7801	Flanged PN10/40 Carbon steel ASTM A105 N Full Wafer DN20 - 3/4'' Flanged PN10/40	720020	S1007896	€140.26 (excl. btw)	add to cart
7802	Flanged PN10/40 Carbon steel ASTM A105 N Full Wafer DN25 - 1'' Flanged PN10/40	720025	S1007897	€154.29 (excl. btw)	add to cart
7803	Flanged PN10/40 Carbon steel ASTM A105 N Full Wafer DN32 - 1''1/4 Flanged PN10/40	720032	S1007898	€213.19 (excl. btw)	add to cart
7804	Flanged PN10/40 Carbon steel ASTM A105 N Full Wafer DN40 - 1''1/2 Flanged PN10/40	720040	S1007899	€260.87 (excl. btw)	add to cart
7805	Flanged PN10/40 Carbon steel ASTM A105 N Full Wafer DN50 - 2'' Flanged PN10/40	720050	S1007900	€373.07 (excl. btw)	add to cart
7806	Flanged PN10/40 Carbon steel ASTM A105 N Full Wafer DN80 - 3'' Flanged PN40	720080	S1007901	€673.20 (excl. btw)	add to cart
7807	Flanged PN10/40 Carbon steel ASTM A105 N Full Wafer DN100 - 4'' Flanged PN10/16	720100	S1007902	€1,040.66 (excl. btw)	add to cart
7808	Flanged PN10/40 Carbon steel ASTM A105 N Full Wafer DN125 - 5'' Flanged PN10/16	720125	S1007903	€1,598.86 (excl. btw)	add to cart
7809	Flanged PN10/40 Carbon steel ASTM A105 N Full Wafer DN150 - 6'' Flanged PN10/16	720150	S1007904	€3,422.10 (excl. btw)	add to cart
7810	Flanged PN10/40 Carbon steel ASTM A105 N Full Wafer DN200 - 8'' Flanged PN16	720200	S1007905	€7,001.29 (excl. btw)	add to cart
