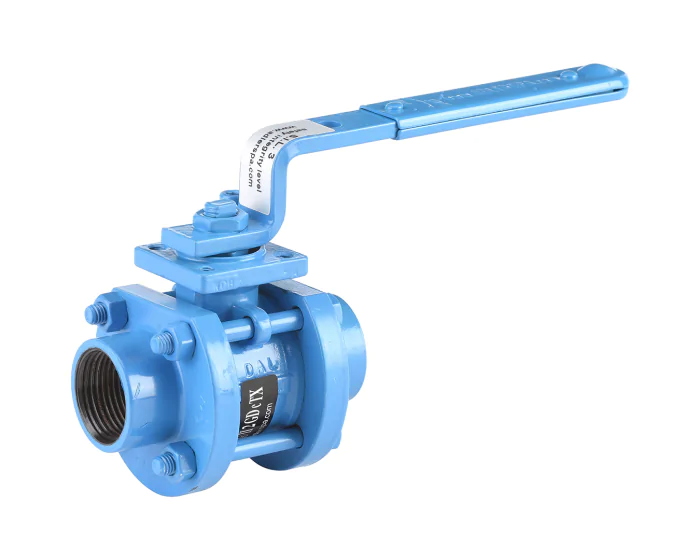

ADLER carbon steel ball valve 712 3-piece body + ISO pad Fire Safe
€117.81
(excl. btw)
The Sferaco 712 series ball valve, 3-piece body in steel from the ADLER range, BW, SW or BSP female connection (NPT on request), full bore, PTFE seats, ISO pad for chemical/compressed air industries.
Specification
Value
DN inches NPS
1/4''
Option certificate 3.1
Yes
CE risk category
III Module H
NACE MR0175
Yes
Fire safe standard
ISO 10497:2004
Type of paint
Epoxy
Paint coating thickness (µm)
35.00
EN face-to-face standard
EN 16722 M3 Series
DIN face-to-face standard
DINI 3202 M3
Face to face standard
EN 16722 M3. DIN 3202 M3
Brand
ADLER
Thread standard
ISO 7-1 Rp
Tightness test standard
EN 12266-1 Rate A
Stem sealing material
15% Graphite filled PTFE gland packing
Antistatic device
Yes
Steam
Yes
Opening device
Handle
Fugitive emissions standard
ISO 15848-1 Class A
Application
Industry
ATEX atmosphere
Group II Cat. 2G/2D
Shaft/stem matérial
Stainless steel ASTM A479 type 316L
Square, star (mm)
MEP Ø8x5
ATEX compatible
Yes
Torque (Nm)
6
DN
DN8 - 1/4''
Face to Face (mm)
50.0
Fluid
Hydrocarbons. gas
Body material
Stainless steel CF8M (1.4408)
Number of ways
2
Bore
Full
ISO pad 5211
Yes
Packing gland
Yes
PS (bar)
100
Connections
BSP FF
Seats
PTFE
Ball material
Stainless steel ASTM A479 316L
TS max (°C)
200
TS min (°C)
-28
Ball valve design
3-piece body
ATEX zone
1 & 21. 2 & 22
Warranty period
2 years
CE
Yes
Handle material
Carbon steel
Handle type
Yellow lever
Fire safe
Yes
If you have any questions about this product, please feel free to contact us .
Product Name
Product Number
EVAC Number
Price
Add to Cart
8553
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body BSP FF DN8 - 1/4''
712002
S1008581
€117.81
(excl. btw)
add to cart
8554
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body BSP FF DN10 - 3/8''
712003
S1008582
€117.81
(excl. btw)
add to cart
8555
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' BSP FF
712004
S1008583
€120.61
(excl. btw)
add to cart
8556
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' BSP FF
712005
S1008584
€131.86
(excl. btw)
add to cart
8557
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' BSP FF
712006
S1008585
€145.86
(excl. btw)
add to cart
8558
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 BSP FF
712007
S1008586
€162.69
(excl. btw)
add to cart
8559
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 BSP FF
712008
S1008587
€252.46
(excl. btw)
add to cart
8560
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' BSP FF
712009
S1008588
€370.26
(excl. btw)
add to cart
8561
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN8 - 1/4'' Welding BW
712108
S1008589
€117.81
(excl. btw)
add to cart
8562
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body Welding BW DN10 - 3/8''
712110
S1008590
€117.81
(excl. btw)
add to cart
8563
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' Welding BW
712115
S1008591
€120.61
(excl. btw)
add to cart
8564
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' Welding BW
712120
S1008592
€131.86
(excl. btw)
add to cart
8565
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' Welding BW
712125
S1008593
€145.86
(excl. btw)
add to cart
8566
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 Welding BW
712132
S1008594
€162.69
(excl. btw)
add to cart
8567
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 Welding BW
712140
S1008595
€252.46
(excl. btw)
add to cart
8568
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' Welding BW
712150
S1008596
€370.26
(excl. btw)
add to cart
8569
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN8 - 1/4'' Welding SW
712208
S1008597
€117.81
(excl. btw)
add to cart
8570
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN10 - 3/8'' Welding SW
712210
S1008598
€117.81
(excl. btw)
add to cart
8571
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' Welding SW
712215
S1008599
€120.61
(excl. btw)
add to cart
8572
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' Welding SW
712220
S1008600
€131.86
(excl. btw)
add to cart
8573
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' Welding SW
712225
S1008601
€145.86
(excl. btw)
add to cart
8574
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 Welding SW
712232
S1008602
€162.69
(excl. btw)
add to cart
8575
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 Welding SW
712240
S1008603
€252.46
(excl. btw)
add to cart
8576
BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' Welding SW
712250
S1008604
€370.26
(excl. btw)
add to cart
