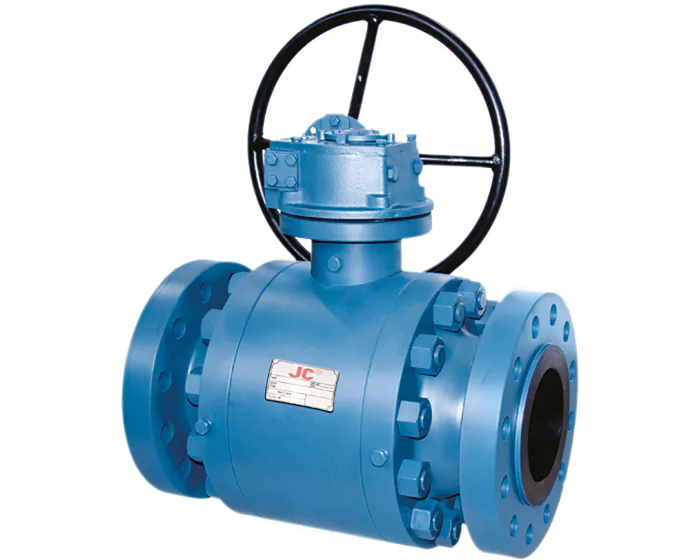

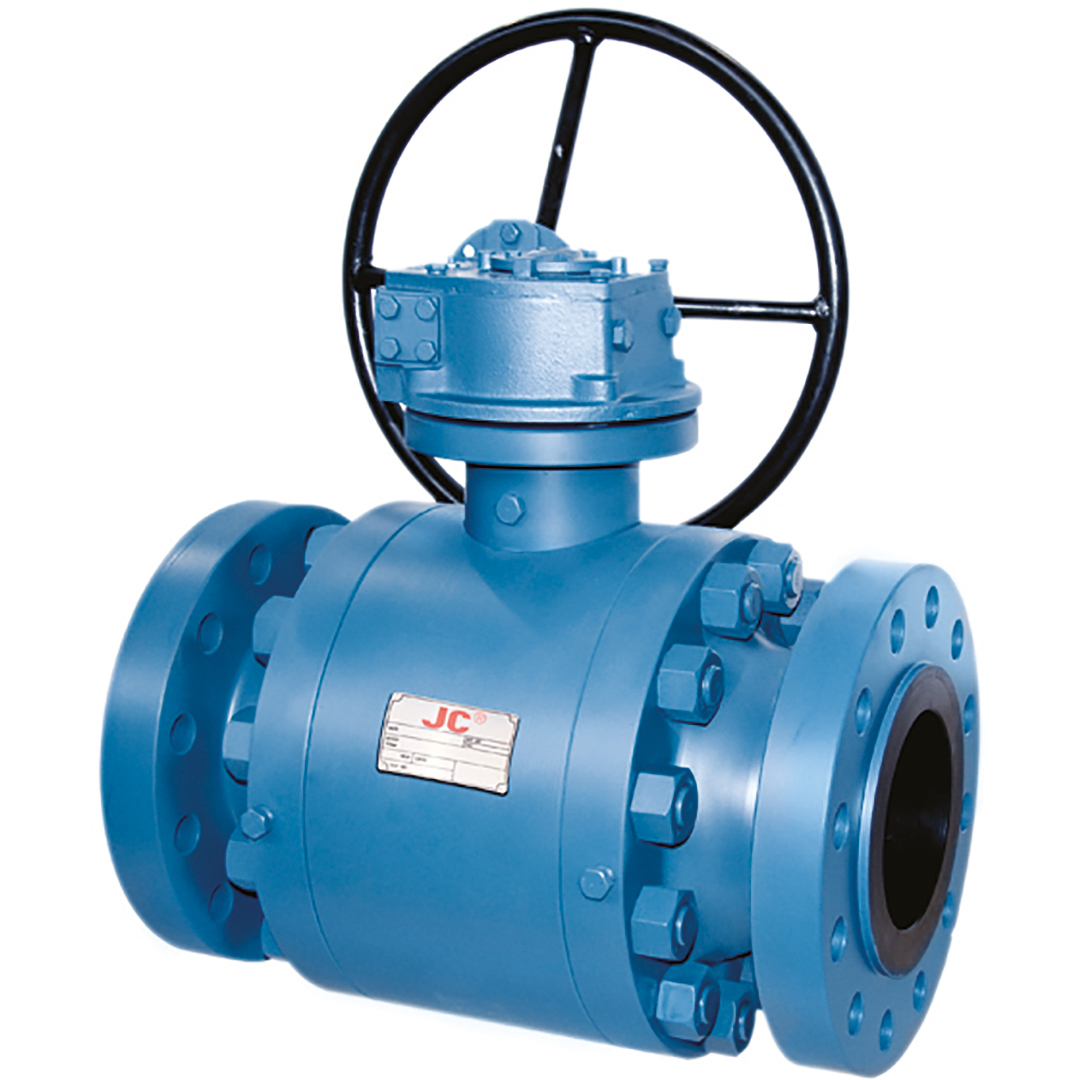

The SFERACO 6030AICG flanged ball valve with steel Class 300 PN50 ISO pad, fire safe, stainless steel ball, PTFE seats filled with graphite, long gap for fluid shut-off - JC range
| Specification | Value |
|---|---|
| DN inches NPS | 2'' |
| Option certificate 3.1 | Yes |
| Fire safe standard | ISO 10497:2004. API 607 V5. API 6FA. BS 6755-2 |
| SIL | SIL 3 |
| Brand | JC VALVES |
| Antistatic device | Yes |
| Steam | Yes |
| Degassing hole | Yes |
| Opening device | Handle |
| Fugitive emissions standard | ISO 15848-1 Class B. TA LUFT VDI 2440 |
| ATEX compatible | Yes |
| DN | DN50 - 2'' |
| Face to Face (mm) | 216.0 |
| Fluid | Hydrocarbons. gas |
| Body material | Carbon steel ASTM A105 N |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | Yes |
| Packing gland | Yes |
| PS (bar) | 50 |
| Connections | Flanged #300 PN50 |
| Seats | PTFE-Graphite |
| TS max (°C) | 260 |
| TS min (°C) | -29 |
| Ball valve design | Split body |
| Warranty period | 5 years |
| Handle type | Red lever |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged #300 PN50 Carbon steel ASTM A105 N Full Split body DN50 - 2'' | 6030AICG050 | S1007124 |
€1,456.36
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel ASTM A105 N Full Split body DN80 - 3'' | 6030AICG080 | S1007125 |
€2,316.93
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel ASTM A105 N Full Split body DN100 - 4'' | 6030AICG100 | S1007126 |
€3,373.86
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel ASTM A105 N Full Split body DN200 - 8'' | 6030AICG200 | S1007127 |
€10,238.26
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel ASTM A105 N Full Split body DN250 - 10'' | 6030AICG250 | S1007128 |
€15,118.96
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel ASTM A105 N Full Split body DN300 - 12'' | 6030AICG300 | S1007129 |
€23,302.81
(excl. btw)
|
add to cart |
