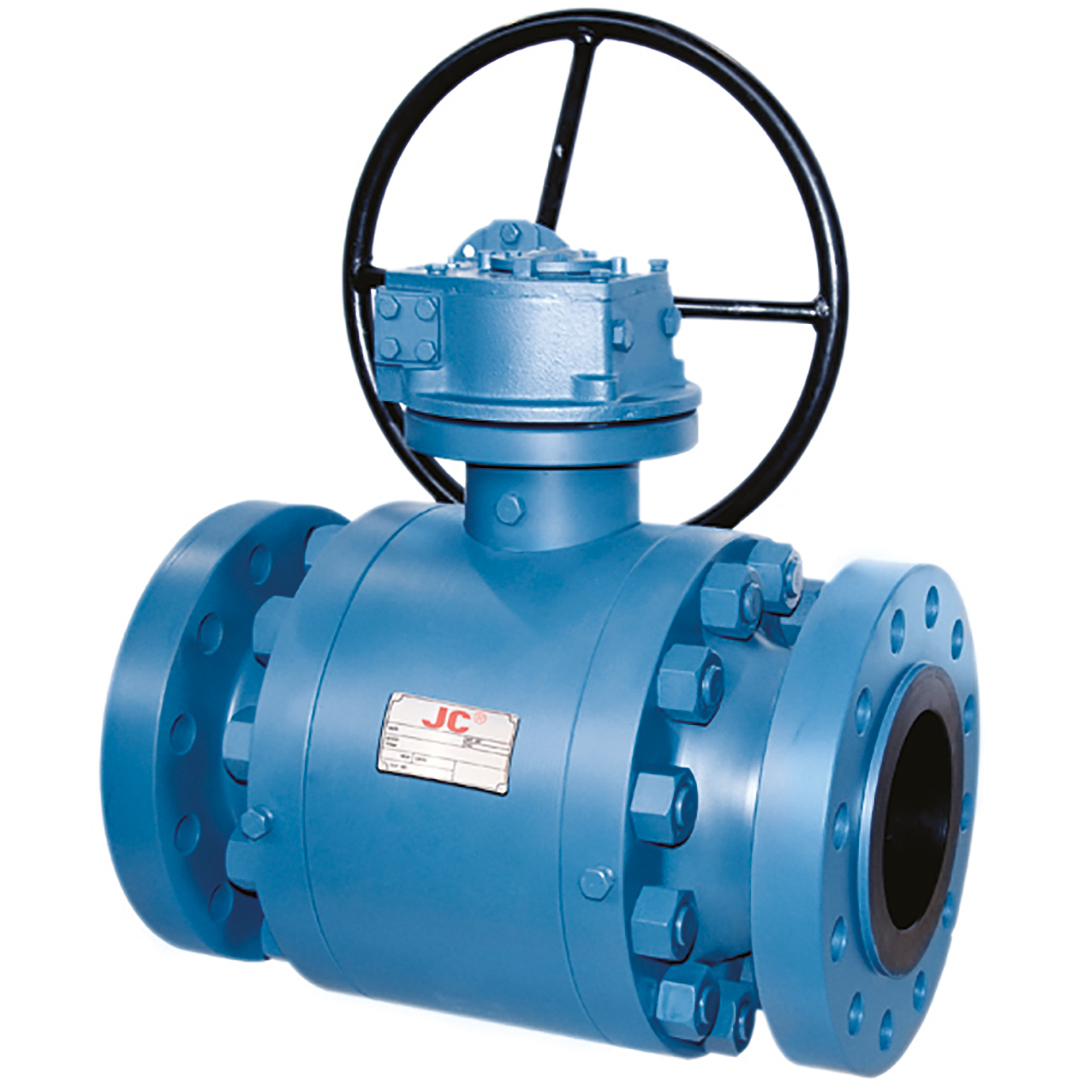

The SFERACO 6015AICG flanged trunnion mounted ball valve Class150 PN20, ISO plate, fire safe, stainless steel ball, PTFE seats filled with graphite, long gap for fluid shut-off - JC range
| Specification | Value |
|---|---|
| DN inches NPS | 2'' |
| Option certificate 3.1 | Yes |
| Fire safe standard | ISO 10497:2004. API 607 V5. API 6FA. BS 6755-2 |
| SIL | SIL 3 |
| Brand | JC VALVES |
| Antistatic device | Yes |
| Steam | Yes |
| Degassing hole | Yes |
| Opening device | Handle |
| Fugitive emissions standard | ISO 15848-1 Class B. TA LUFT VDI 2440 |
| ATEX compatible | Yes |
| DN | DN50 - 2'' |
| Face to Face (mm) | 178.0 |
| Fluid | Hydrocarbons. gas |
| Body material | Carbon steel ASTM A105 N |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | Yes |
| Packing gland | Yes |
| PS (bar) | 20 |
| Connections | Flanged #150 PN20 |
| Seats | PTFE-Graphite |
| TS max (°C) | 260 |
| TS min (°C) | -29 |
| Ball valve design | Split body |
| Warranty period | 5 years |
| Handle type | Red lever |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged #150 PN20 Carbon steel ASTM A105 N Full Split body DN50 - 2'' | 6015AICG050 | S1007117 |
€1,372.21
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel ASTM A105 N Full Split body DN80 - 3'' | 6015AICG080 | S1007118 |
€2,005.01
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel ASTM A105 N Full Split body DN100 - 4'' | 6015AICG100 | S1007119 |
€2,725.34
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel ASTM A105 N Full Split body DN150 - 6'' | 6015AICG150 | S1007120 |
€6,122.76
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel ASTM A105 N Full Split body DN200 - 8'' | 6015AICG200 | S1007121 |
€9,740.09
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel ASTM A105 N Full Split body DN250 - 10'' | 6015AICG250 | S1007122 |
€14,074.37
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel ASTM A105 N Full Split body DN300 - 12'' | 6015AICG300 | S1007123 |
€22,077.59
(excl. btw)
|
add to cart |
