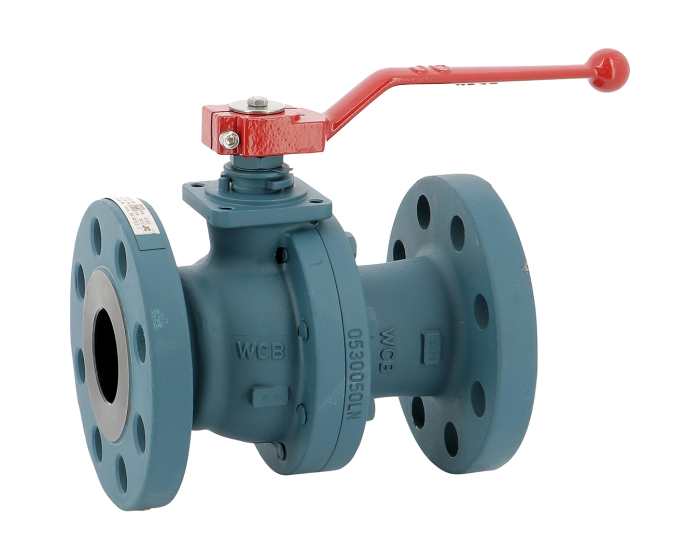

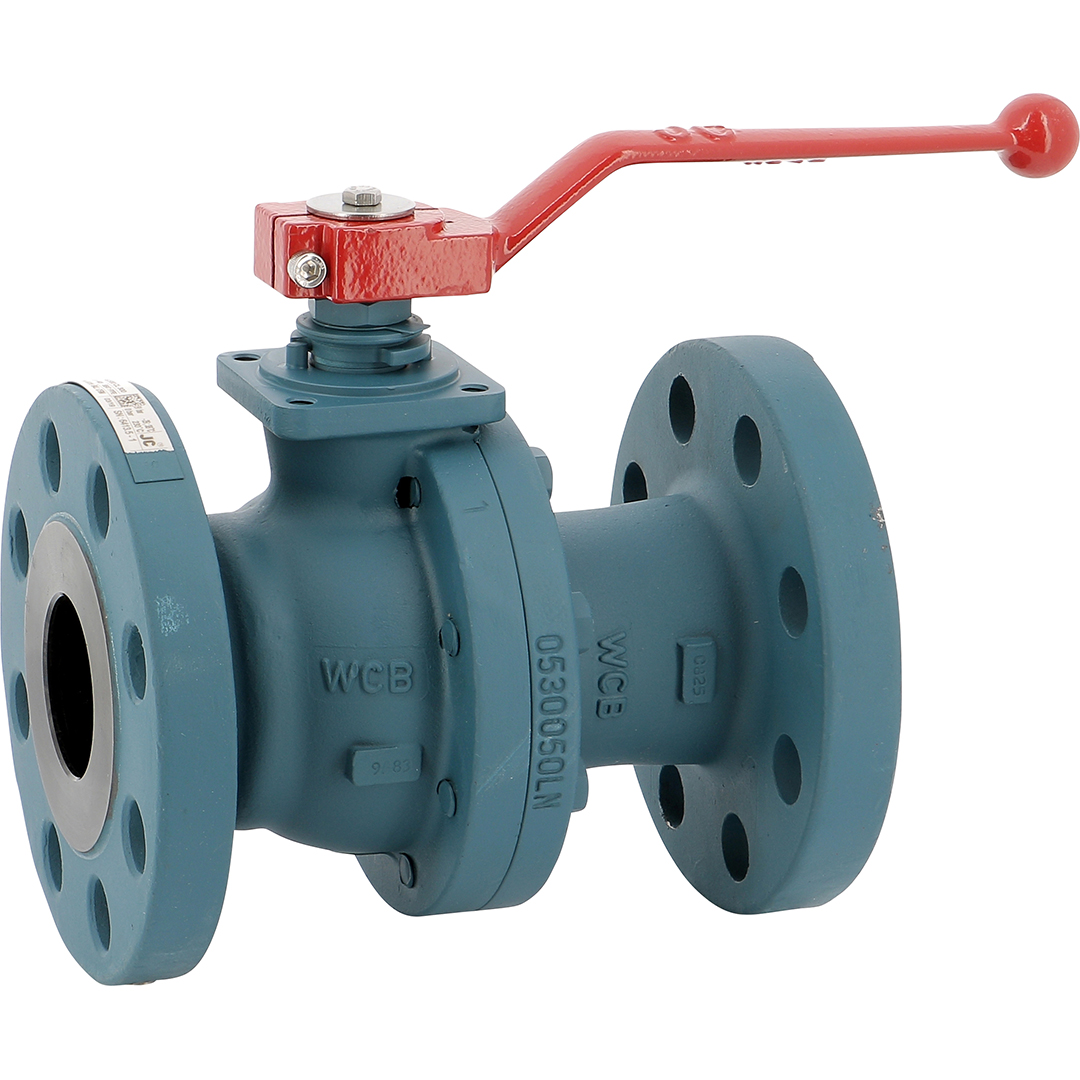

The Sferaco 515AIGF series ball valve, 2-piece body with steel body and glass-filled PTFE seat for high temperature resistance, ATEX compatible, Split Body JC range, full bore, for chemicals.
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Option certificate 3.1 | Yes |
| Construction standard | EN 1983 - ISO 17292 - ASME B16.34 - API 6D |
| NACE MR0175 | Yes |
| Fire safe standard | ISO 10497:2004. API 607 V5. API 6FA. BS 6755-2 |
| SIL | SIL 3 |
| EN face-to-face standard | EN 558 Series 3 |
| ASME face-to-face standard | ASME B16.10 |
| Brand | JC VALVES |
| Antistatic device | Yes |
| Steam | Yes |
| Degassing hole | Yes |
| Opening device | Handle |
| Fugitive emissions standard | ISO 15848-1 Class B. TA LUFT VDI 2440 |
| Application | Industry |
| Square, star (mm) | MEP M12x9 |
| ATEX compatible | Yes |
| Torque (Nm) | 9 |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 108.0 |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 20 |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | Yes |
| Packing gland | Yes |
| PS (bar) | 20 |
| Connections | Flanged #150 PN20 |
| Seats | PTFE-Glass |
| Ball material | Stainless steel ASTM A479 Tp 316 |
| TS max (°C) | 230 |
| TS min (°C) | -29 |
| Ball valve design | Split body |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 5 years |
| CE | Yes |
| Main product colour | Blue |
| Handle material | Ductile iron |
| Handle type | Red lever |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN15 - 1/2'' | 515AIGF015 | S1006956 |
€155.34
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN20 - 3/4'' | 515AIGF020 | S1006957 |
€175.66
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN25 - 1'' | 515AIGF025 | S1006958 |
€201.39
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN40 - 1''1/2 | 515AIGF040 | S1006959 |
€281.93
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN50 - 2'' | 515AIGF050 | S1006960 |
€354.76
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN80 - 3'' | 515AIGF080 | S1006961 |
€632.30
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN100 - 4'' | 515AIGF100 | S1006962 |
€965.39
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN150 - 6'' | 515AIGF150 | S1006963 |
€2,225.51
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN200 - 8'' | 515AIGF200 | S1006964 |
€3,997.17
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN250 - 10'' | 515AIGF250 | S1006965 |
€7,572.51
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN300 - 12'' | 515AIGF300 | S1006966 |
€12,931.73
(excl. btw)
|
add to cart |
