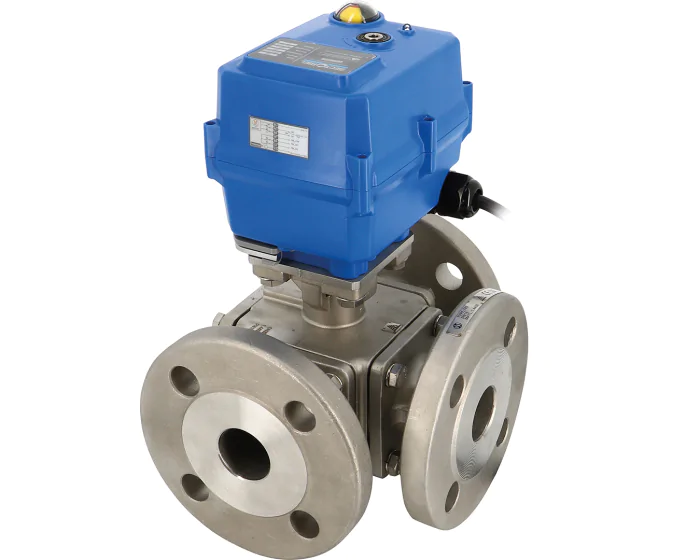

The 785L or 786T 3-way ball valve has a CF8M (1.4408) stainless steel body and ball and PTFE seats. It is actuated with a TCR-N electric actuator. PS: 16 bar, TS: 150°C. Flanged attachments PN16 RF.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Manual override | By key |
| Declutchable | No |
| DN | DN25 - 1'' |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 3 |
| Bore | Full |
| PS (bar) | 16 |
| Connections | Flanged PN16 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | TCR-05N |
| Electric actuator series | TCR Series |
| Seats | PTFE-Glass |
| Voltage | 95-265 V AC/DC |
| TS max (°C) | 150 |
| TS min (°C) | -30 |
| 3-way type | L-port |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16 Stainless steel CF8M (1.4408) Full DN25 - 1'' L-port 95-265 V AC/DC | 275374024310 | S1003741 |
€774.39
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full DN25 - 1'' L-port 24 V AC/DC | 275374024311 | S1003742 |
€774.39
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full DN32 - 1''1/4 L-port 95-265 V AC/DC | 275375024310 | S1003743 |
€827.36
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full DN32 - 1''1/4 L-port 24 V AC/DC | 275375024311 | S1003744 |
€827.36
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full DN40 - 1''1/2 L-port 95-265 V AC/DC | 275376024610 | S1003745 |
€1,368.43
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full DN40 - 1''1/2 L-port 24 V AC/DC | 275376024611 | S1003746 |
€1,368.43
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full DN50 - 2'' L-port 95-265 V AC/DC | 275377024700 | S1003747 |
€1,989.47
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full DN65 - 2''1/2 L-port 95-265 V AC/DC | 275378024720 | S1003748 |
€2,607.69
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full DN80 - 3'' L-port 95-265 V AC/DC | 275379024720 | S1003749 |
€3,173.91
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full DN100 - 4'' L-port 95-265 V AC/DC | 275380024720 | S1003750 |
€5,793.39
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full DN25 - 1'' T-port 95-265 V AC/DC | 275384024310 | S1003751 |
€774.39
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full DN25 - 1'' T-port 24 V AC/DC | 275384024311 | S1003752 |
€762.96
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full DN32 - 1''1/4 T-port 95-265 V AC/DC | 275385024310 | S1003753 |
€827.36
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full DN32 - 1''1/4 T-port 24 V AC/DC | 275385024311 | S1003754 |
€920.04
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full DN40 - 1''1/2 T-port 95-265 V AC/DC | 275386024610 | S1003755 |
€1,368.43
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full DN40 - 1''1/2 T-port 24 V AC/DC | 275386024611 | S1003756 |
€1,285.20
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full DN50 - 2'' T-port 95-265 V AC/DC | 275387024700 | S1003757 |
€1,989.47
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full DN65 - 2''1/2 T-port 95-265 V AC/DC | 275388024720 | S1003758 |
€2,607.69
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full DN80 - 3'' T-port 95-265 V AC/DC | 275389024720 | S1003759 |
€3,173.91
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full DN100 - 4'' T-port 95-265 V AC/DC | 275390024720 | S1003760 |
€5,793.39
(excl. btw)
|
add to cart |
