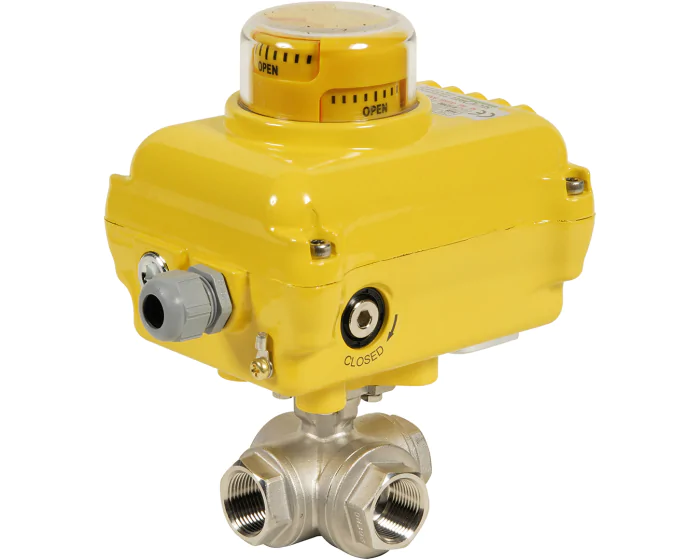

The 780L or 781T 3-way ball valve has a 1.4408 stainless steel body and ball and PTFE seats. It is actuated with an SA05 electric actuator. PS: 63 bar, TS: -30 / +180°C. G threaded fittings.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 316 |
| Manual override | By key |
| Declutchable | No |
| DN | DN50 - 2'' |
| Duty service | S4 duty service - 50% |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 3 |
| Bore | Reduced |
| Packing gland | PTFE |
| PS (bar) | 63 |
| Power (W) | 6 |
| Connections | BSP FF |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | SA 05 |
| Electric actuator series | SA/NA series |
| Seats | PTFE |
| Operating time (s) | 17.0 |
| Voltage | 230 V AC |
| TS max (°C) | 180 |
| TS min (°C) | -30 |
| 3-way type | T-port |
| Warranty period | 1 year |
| CE | Risk category III |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) Reduced BSP FF 230 V AC DN8 - 1/4'' | 275400023010 | S1004646 |
€536.96
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced BSP FF 230 V AC DN10 - 3/8'' | 275401023010 | S1004647 |
€537.83
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN15 - 1/2'' BSP FF 230 V AC | 275402023010 | S1004648 |
€537.83
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN20 - 3/4'' BSP FF 230 V AC | 275403023010 | S1004649 |
€537.83
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN25 - 1'' BSP FF 230 V AC | 275404023010 | S1004650 |
€621.63
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN32 - 1''1/4 BSP FF 230 V AC | 275405023010 | S1004651 |
€652.59
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN40 - 1''1/2 BSP FF 230 V AC | 275406023010 | S1004652 |
€779.00
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN50 - 2'' BSP FF L-port | 275407023010 | S1004653 |
€869.86
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN50 - 2'' BSP FF 230 V AC | 275407023011 | S1004654 |
€869.86
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced BSP FF 230 V AC DN8 - 1/4'' | 275420023010 | S1004655 |
€519.34
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced BSP FF 230 V AC DN10 - 3/8'' | 275421023010 | S1004656 |
€519.34
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN15 - 1/2'' BSP FF 230 V AC | 275422023010 | S1004657 |
€519.34
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN20 - 3/4'' BSP FF 230 V AC | 275423023010 | S1004658 |
€555.90
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN25 - 1'' BSP FF 230 V AC | 275424023010 | S1004659 |
€609.96
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN32 - 1''1/4 BSP FF 230 V AC | 275425023010 | S1004660 |
€644.64
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN40 - 1''1/2 BSP FF 230 V AC | 275426023010 | S1004661 |
€719.99
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN50 - 2'' BSP FF 230 V AC | 275427023010 | S1004662 |
€856.80
(excl. btw)
|
add to cart |
