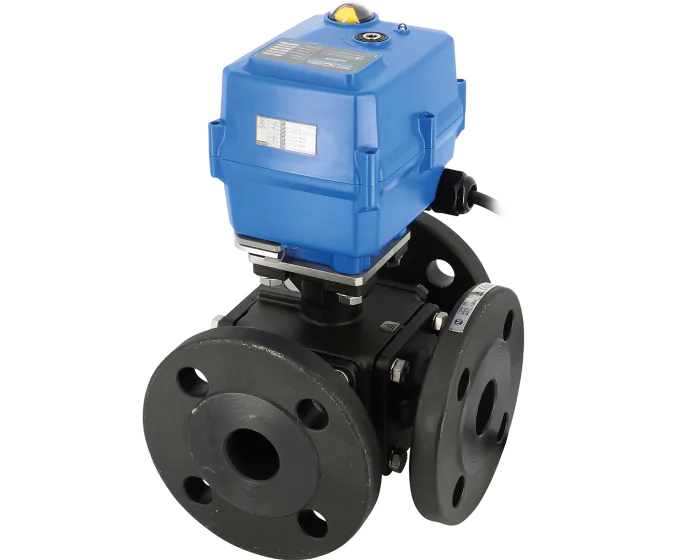

The 783L or 784T 3-way ball valve has a carbon steel body (1.0619), a stainless steel ball and PTFE seats. It is actuated with a TCR-N electric actuator. PS: 16 bar, TS: 150°C. Flanged attachments PN16 RF
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Manual override | By key |
| Declutchable | No |
| DN | DN25 - 1'' |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 3 |
| Bore | Full |
| PS (bar) | 16 |
| Connections | Flanged PN16 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | TCR-05N |
| Electric actuator series | TCR Series |
| Seats | PTFE-Glass |
| Voltage | 95-265 V AC/DC |
| TS max (°C) | 150 |
| TS min (°C) | -20 |
| 3-way type | L-port |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN25 - 1'' L-port 95-265 V AC/DC | 275674024310 | S1004043 |
€663.00
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN25 - 1'' L-port 24 V AC/DC | 275674024311 | S1004044 |
€663.00
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN32 - 1''1/4 L-port 95-265 V AC/DC | 275675024310 | S1004045 |
€816.81
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN32 - 1''1/4 L-port 24 V AC/DC | 275675024311 | S1004046 |
€816.81
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN40 - 1''1/2 L-port 95-265 V AC/DC | 275676024610 | S1004047 |
€1,001.64
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN40 - 1''1/2 L-port 24 V AC/DC | 275676024611 | S1004048 |
€1,001.64
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN50 - 2'' L-port 95-265 V AC/DC | 275677024700 | S1004049 |
€1,720.51
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN65 - 2''1/2 L-port 95-265 V AC/DC | 275678024720 | S1004050 |
€2,229.17
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN80 - 3'' L-port 95-265 V AC/DC | 275679024720 | S1004051 |
€2,583.59
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN100 - 4'' L-port 95-265 V AC/DC | 275680024720 | S1004052 |
€4,734.06
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN25 - 1'' T-port 95-265 V AC/DC | 275684024310 | S1004053 |
€663.00
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN25 - 1'' T-port 24 V AC/DC | 275684024311 | S1004054 |
€663.00
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN32 - 1''1/4 T-port 95-265 V AC/DC | 275685024310 | S1004055 |
€816.81
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN32 - 1''1/4 T-port 24 V AC/DC | 275685024311 | S1004056 |
€816.81
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN40 - 1''1/2 T-port 95-265 V AC/DC | 275686024610 | S1004057 |
€1,001.64
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN40 - 1''1/2 T-port 24 V AC/DC | 275686024611 | S1004058 |
€1,001.64
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN50 - 2'' T-port 95-265 V AC/DC | 275687024700 | S1004059 |
€1,720.51
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN65 - 2''1/2 T-port 95-265 V AC/DC | 275688024720 | S1004060 |
€2,229.17
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN80 - 3'' T-port 95-265 V AC/DC | 275689024720 | S1004061 |
€2,583.59
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN100 - 4'' T-port 95-265 V AC/DC | 275690024720 | S1004062 |
€4,734.06
(excl. btw)
|
add to cart |
