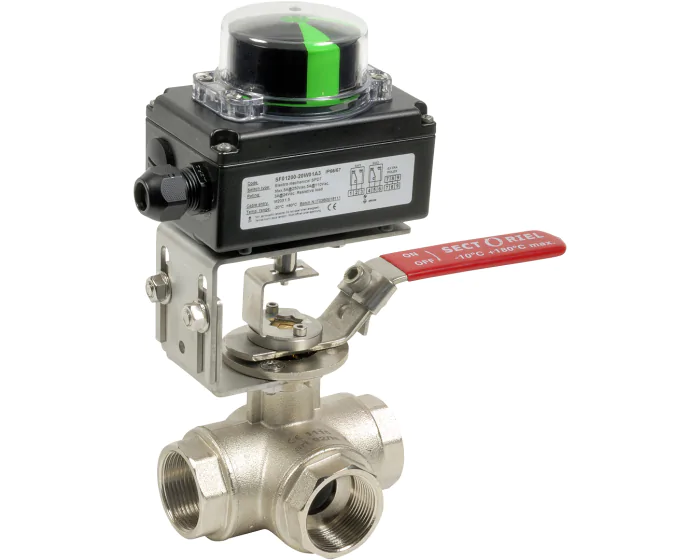

The brass ball valves 513 (3-way L) and 514 (3-way T) feature CW617N body and ball with PTFE seats and reduced bore. Rated PS 16 bar, TS -10°C to +100°C, with G threaded connections and SF012 limit switch box.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Shaft/stem matérial | Brass 614N |
| Switch type | dry SPDT |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 76.0 |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Gasket | FKM |
| Body material | Brass CW614N |
| Number of ways | 3 |
| PS (bar) | 16 |
| Connections | BSP FF |
| Seats | PTFE |
| TS max (°C) | 100 |
| TS min (°C) | -10 |
| 3-way type | L-port |
| Warranty period | 1 year |
| CE | Risk category II |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Brass CW614N DN8 - 1/4'' L-port | 2750100462012 | S1009907 |
€348.24
(excl. btw)
|
add to cart |
| BSP FF Brass CW614N DN10 - 3/8'' L-port | 2750110462012 | S1009908 |
€348.24
(excl. btw)
|
add to cart |
| BSP FF Brass CW614N DN15 - 1/2'' L-port | 2750120462012 | S1009909 |
€348.24
(excl. btw)
|
add to cart |
| BSP FF Brass CW614N DN20 - 3/4'' L-port | 2750130462012 | S1009910 |
€352.40
(excl. btw)
|
add to cart |
| BSP FF Brass CW614N DN25 - 1'' L-port | 2750140462012 | S1009911 |
€389.70
(excl. btw)
|
add to cart |
| BSP FF Brass CW614N DN32 - 1''1/4 L-port | 2750150462012 | S1009912 |
€389.70
(excl. btw)
|
add to cart |
| BSP FF Brass CW614N DN40 - 1''1/2 L-port | 2750160462012 | S1009913 |
€457.99
(excl. btw)
|
add to cart |
| BSP FF Brass CW614N DN50 - 2'' L-port | 2750170462012 | S1009914 |
€563.83
(excl. btw)
|
add to cart |
| BSP FF Brass CW614N DN8 - 1/4'' T-port | 2750300462012 | S1009915 |
€348.24
(excl. btw)
|
add to cart |
| BSP FF Brass CW614N DN10 - 3/8'' T-port | 2750310462012 | S1009916 |
€348.24
(excl. btw)
|
add to cart |
| BSP FF Brass CW614N DN15 - 1/2'' T-port | 2750320462012 | S1009917 |
€348.24
(excl. btw)
|
add to cart |
| BSP FF Brass CW614N DN20 - 3/4'' T-port | 2750330462012 | S1009918 |
€352.40
(excl. btw)
|
add to cart |
| BSP FF Brass CW614N DN25 - 1'' T-port | 2750340462012 | S1009919 |
€389.70
(excl. btw)
|
add to cart |
| BSP FF Brass CW614N DN32 - 1''1/4 T-port | 2750350462012 | S1009920 |
€389.70
(excl. btw)
|
add to cart |
| BSP FF Brass CW614N DN40 - 1''1/2 T-port | 2750360462012 | S1009921 |
€457.99
(excl. btw)
|
add to cart |
| BSP FF Brass CW614N DN50 - 2'' T-port | 2750370462012 | S1009922 |
€563.83
(excl. btw)
|
add to cart |
