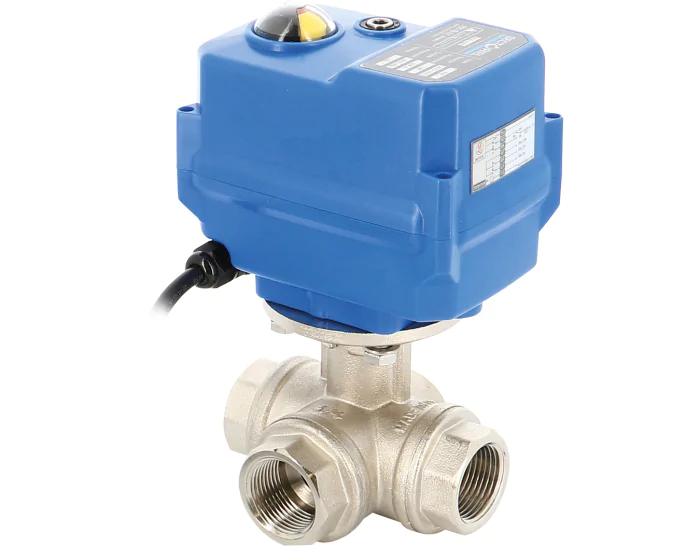

The 513L/514T 3-way ball valve has a CW 617 N brass body and ball, PTFE seats. It is actuated with a TCR-N electric actuator. ACS approval. PS: 16 bar, TS: 100°C. Threaded G.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Manual override | By key |
| Declutchable | No |
| DN | DN8 - 1/4'' |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Body material | Brass CW617N |
| Number of ways | 3 |
| Bore | Reduced |
| PS (bar) | 16 |
| Connections | BSP FF |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | TCR-02N |
| Electric actuator series | TCR Series |
| Seats | PTFE |
| Voltage | 95-265 V AC/DC |
| TS max (°C) | 100 |
| TS min (°C) | -10 |
| 3-way type | L-port |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Brass CW617N Reduced DN8 - 1/4'' L-port 95-265 V AC/DC | 275010024110 | S1004284 |
€288.30
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN8 - 1/4'' L-port 24 V AC/DC | 275010024111 | S1004285 |
€288.30
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN10 - 3/8'' L-port 95-265 V AC/DC | 275011024110 | S1004286 |
€289.60
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN10 - 3/8'' L-port 24 V AC/DC | 275011024111 | S1004287 |
€289.60
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN15 - 1/2'' L-port 95-265 V AC/DC | 275012024110 | S1004288 |
€289.60
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN15 - 1/2'' L-port 24 V AC/DC | 275012024111 | S1004289 |
€289.60
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN20 - 3/4'' L-port 95-265 V AC/DC | 275013024110 | S1004290 |
€292.03
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN20 - 3/4'' L-port 24 V AC/DC | 275013024111 | S1004291 |
€292.03
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN25 - 1'' L-port 95-265 V AC/DC | 275014024110 | S1004292 |
€328.16
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN25 - 1'' L-port 24 V AC/DC | 275014024111 | S1004293 |
€328.16
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN32 - 1''1/4 L-port 95-265 V AC/DC | 275015024310 | S1004294 |
€381.89
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN32 - 1''1/4 L-port 24 V AC/DC | 275015024311 | S1004295 |
€381.89
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN40 - 1''1/2 L-port 95-265 V AC/DC | 275016024310 | S1004296 |
€445.19
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN40 - 1''1/2 L-port 24 V AC/DC | 275016024311 | S1004297 |
€445.19
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN50 - 2'' L-port 95-265 V AC/DC | 275017024310 | S1004298 |
€555.67
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN50 - 2'' L-port 24 V AC/DC | 275017024311 | S1004299 |
€555.67
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN8 - 1/4'' T-port 95-265 V AC/DC | 275030024110 | S1004300 |
€288.30
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN8 - 1/4'' T-port 24 V AC/DC | 275030024111 | S1004301 |
€288.30
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN10 - 3/8'' T-port 95-265 V AC/DC | 275031024110 | S1004302 |
€289.60
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN10 - 3/8'' T-port 24 V AC/DC | 275031024111 | S1004303 |
€289.60
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN15 - 1/2'' T-port 95-265 V AC/DC | 275032024110 | S1004304 |
€289.60
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN15 - 1/2'' T-port 24 V AC/DC | 275032024111 | S1004305 |
€289.60
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN20 - 3/4'' T-port 95-265 V AC/DC | 275033024110 | S1004306 |
€292.03
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN20 - 3/4'' T-port 24 V AC/DC | 275033024111 | S1004307 |
€292.03
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN25 - 1'' T-port 95-265 V AC/DC | 275034024110 | S1004308 |
€328.16
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN25 - 1'' T-port 24 V AC/DC | 275034024111 | S1004309 |
€328.16
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN32 - 1''1/4 T-port 95-265 V AC/DC | 275035024310 | S1004310 |
€381.89
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN32 - 1''1/4 T-port 24 V AC/DC | 275035024311 | S1004311 |
€381.89
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN40 - 1''1/2 T-port 95-265 V AC/DC | 275036024310 | S1004312 |
€445.19
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN40 - 1''1/2 T-port 24 V AC/DC | 275036024311 | S1004313 |
€445.19
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN50 - 2'' T-port 95-265 V AC/DC | 275037024310 | S1004314 |
€555.67
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN50 - 2'' T-port 24 V AC/DC | 275037024311 | S1004315 |
€555.67
(excl. btw)
|
add to cart |
