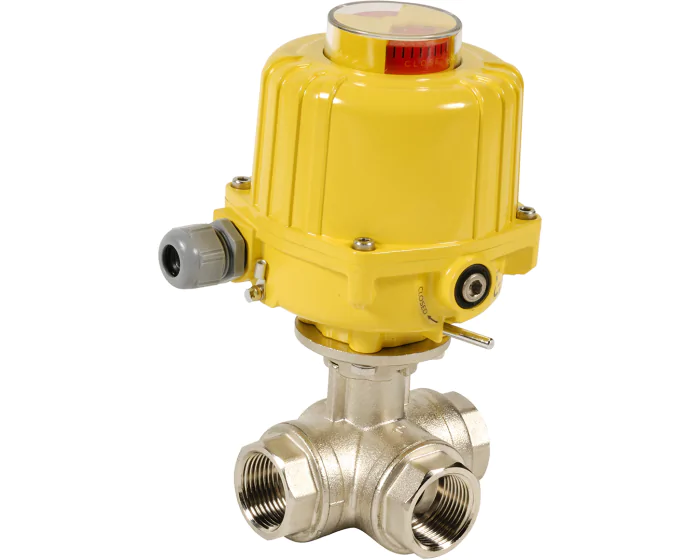

The 513L/514T 3-way ball valve has a CW 617 N brass body and ball, PTFE seats. It is actuated by an SA03 electric actuator. ACS approval. PS: 16 bar, TS: 100°C. Threaded G.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Brass 614N |
| Manual override | By key |
| Declutchable | Yes |
| DN | DN8 - 1/4'' |
| Duty service | S4 duty service - 50% |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Brass CW617N |
| Number of ways | 3 |
| Bore | Reduced |
| PS (bar) | 16 |
| Power (W) | 18 |
| Connections | BSP FF |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | SA 03 |
| Electric actuator series | SA/NA series |
| Seats | PTFE |
| Operating time (s) | 12.0 |
| Voltage | 230 V AC |
| TS max (°C) | 100 |
| TS min (°C) | -10 |
| 3-way type | L-port |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Brass CW617N Reduced 230 V AC DN8 - 1/4'' L-port | 275010023000 | S1004386 |
€328.86
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN8 - 1/4'' L-port 24 V AC/DC | 275010023001 | S1004387 |
€328.86
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced 230 V AC DN10 - 3/8'' L-port | 275011023000 | S1004388 |
€334.16
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN15 - 1/2'' 230 V AC L-port | 275012023000 | S1004389 |
€334.16
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN20 - 3/4'' 230 V AC L-port | 275013023000 | S1004390 |
€339.46
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced 230 V AC DN8 - 1/4'' T-port | 275030023000 | S1004391 |
€328.86
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced 230 V AC DN10 - 3/8'' T-port | 275031023000 | S1004392 |
€334.16
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN15 - 1/2'' 230 V AC T-port | 275032023000 | S1004393 |
€334.16
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN20 - 3/4'' 230 V AC T-port | 275033023000 | S1004394 |
€339.46
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN25 - 1'' 230 V AC T-port | 275034023000 | S1004395 |
€371.29
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN25 - 1'' T-port 24 V AC/DC | 275034023001 | S1004396 |
€371.29
(excl. btw)
|
add to cart |
