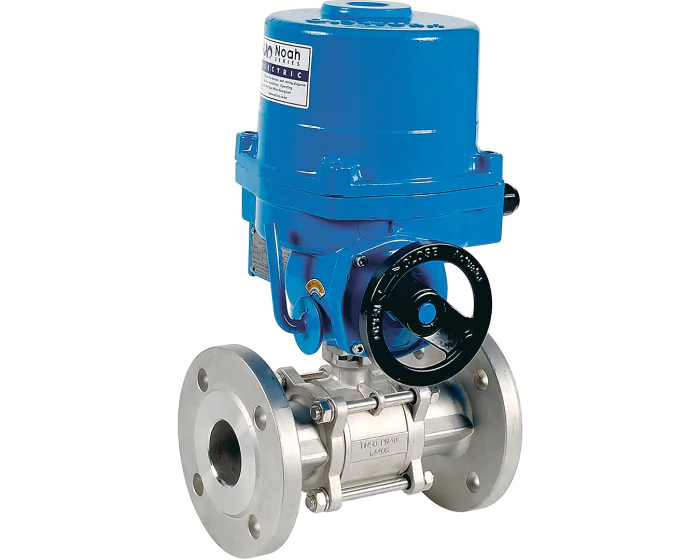

The 3-piece ball valve 711 XS has a CF8M (1.4408) stainless steel body and ball and PTFE/stainless steel seats. Electric actuator SA/NA. PS: 40 bar, TS: -30/+200°C. Flanged attachments PN40 RF.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 316 |
| Manual override | By handwheel |
| Declutchable | Yes |
| DN | DN100 - 4'' |
| Duty service | S2 duty service - 70% |
| Face to Face (mm) | 350.0 |
| Protection index (IP) | IP 67 |
| Torque limiter | Yes |
| Recommended location | Outdoor |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 40 |
| Power (W) | 40 |
| Connections | Flanged PN40 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | NA 15 |
| Electric actuator series | SA/NA series |
| Seats | PTFE-Stainless steel |
| Operating time (s) | 20.0 |
| Voltage | 230 V AC |
| TS max (°C) | 200 |
| TS min (°C) | -30 |
| Ball valve design | 3-piece body |
| Warranty period | 1 year |
| CE | Risk category III |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN40 Stainless steel CF8M (1.4408) Full 3-piece body 65 | 272108023120X | S1004140 |
€1,632.39
(excl. btw)
|
add to cart |
| Flanged PN40 Stainless steel CF8M (1.4408) Full 3-piece body 80 | 272109023120X | S1004141 |
€1,922.91
(excl. btw)
|
add to cart |
| Flanged PN40 Stainless steel CF8M (1.4408) Full 3-piece body 100 | 272110023130X | S1004142 |
€2,641.89
(excl. btw)
|
add to cart |
