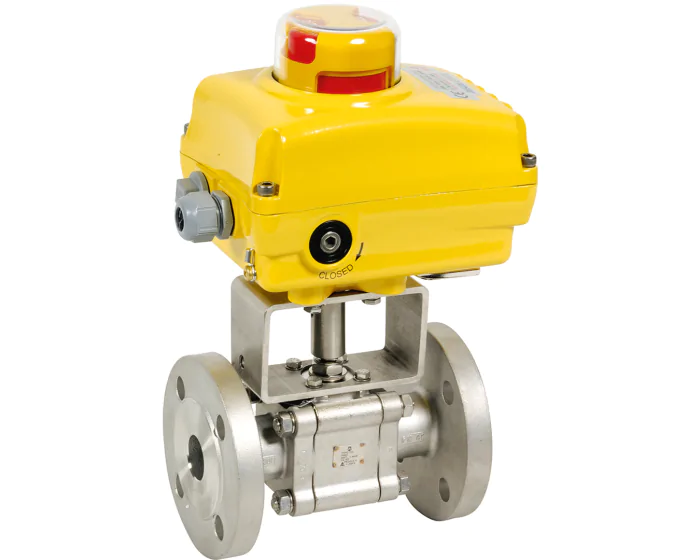

The 703B 3-piece ball valve has aCF8M (1.4408) stainless steel body and ball and PTFE/carbon seats. Electric actuator SA05. PS: 40 bar, TS: -30/+220°C. Flanged attachments PN40 RF.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 316 |
| Manual override | By key |
| Declutchable | No |
| DN | DN15 - 1/2'' |
| Duty service | S4 duty service - 50% |
| Face to Face (mm) | 130.0 |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 40 |
| Power (W) | 6 |
| Connections | Flanged PN40 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | SA 05 |
| Electric actuator series | SA/NA series |
| Seats | PTFE-Carbon |
| Operating time (s) | 17.0 |
| Voltage | 230 V AC |
| TS max (°C) | 220 |
| TS min (°C) | -30 |
| Ball valve design | 3-piece body |
| Warranty period | 1 year |
| CE | Risk category III |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN40 Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' | 272232023010 | S1003892 |
€719.37
(excl. btw)
|
add to cart |
| Flanged PN40 Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' | 272233023010 | S1003893 |
€753.17
(excl. btw)
|
add to cart |
| Flanged PN40 Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' | 272234023010 | S1003894 |
€845.67
(excl. btw)
|
add to cart |
| Flanged PN40 Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 | 272235023010 | S1003895 |
€990.76
(excl. btw)
|
add to cart |
| Flanged PN40 Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 | 272236023010 | S1003896 |
€1,090.83
(excl. btw)
|
add to cart |
| Flanged PN40 Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' | 272237023010 | S1003897 |
€1,449.81
(excl. btw)
|
add to cart |
