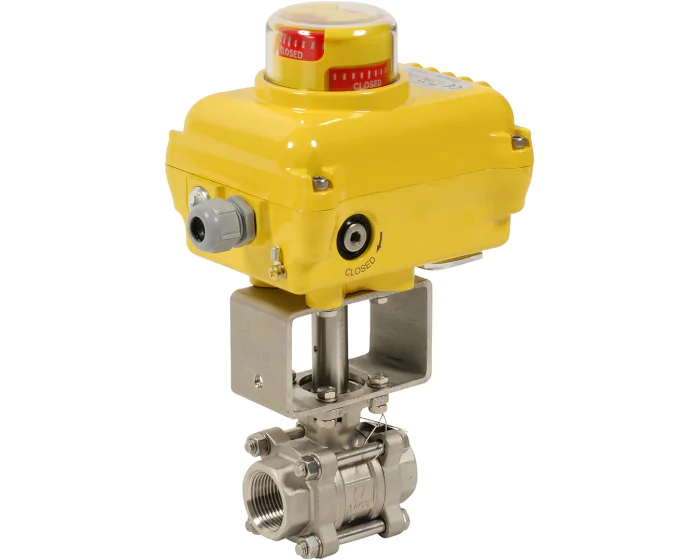

The 747 XS 3-piece ball valve has a 1.4408 stainless steel body and ball and PTFE/stainless steel seats. It is actuated with an SA05 electric actuator. PS: 63 bar, TS: 200°C. Threaded G, welding BW or SW.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 316 |
| Manual override | By key |
| Declutchable | No |
| DN | DN15 - 1/2'' |
| Duty service | S4 duty service - 50% |
| Face to Face (mm) | 75.0 |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 63 |
| Power (W) | 6 |
| Connections | BSP FF |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | SA 05 |
| Electric actuator series | SA/NA series |
| Seats | PTFE-Stainless steel |
| Operating time (s) | 17.0 |
| Voltage | 230 V AC |
| TS max (°C) | 220 |
| TS min (°C) | -40 |
| Ball valve design | 3-piece body |
| Warranty period | 1 year |
| CE | Risk category III |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' BSP FF 230 V AC | 272702023010 | S1005169 |
€557.01
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' BSP FF 230 V AC | 272703023010 | S1005170 |
€573.96
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' BSP FF 230 V AC | 272704023010 | S1005171 |
€583.44
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 BSP FF 230 V AC | 272705023010 | S1005172 |
€613.89
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 BSP FF 230 V AC | 272706023010 | S1005173 |
€712.86
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' BSP FF 230 V AC | 272707023010 | S1005174 |
€795.60
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' 230 V AC Welding BW | 272732023010 | S1005175 |
€557.01
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' 230 V AC Welding BW | 272733023010 | S1005176 |
€573.96
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' 230 V AC Welding BW | 272734023010 | S1005177 |
€583.44
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 230 V AC Welding BW | 272735023010 | S1005178 |
€613.89
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 230 V AC Welding BW | 272736023010 | S1005179 |
€712.86
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' 230 V AC Welding BW | 272737023010 | S1005180 |
€795.60
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' 230 V AC Welding SW | 272752023010 | S1005181 |
€542.64
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' 230 V AC Welding SW | 272753023010 | S1005182 |
€551.81
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' 230 V AC Welding SW | 272754023010 | S1005183 |
€569.16
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 230 V AC Welding SW | 272755023010 | S1005184 |
€585.49
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 230 V AC Welding SW | 272756023010 | S1005185 |
€657.90
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' 230 V AC Welding SW | 272757023010 | S1005186 |
€785.40
(excl. btw)
|
add to cart |
