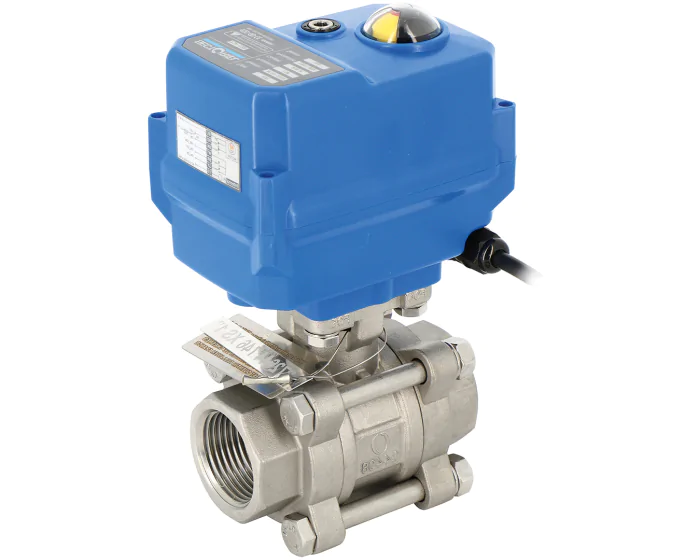

3-piece stainless steel ball valve designed with stainless steel body and ball, PTFE seats and PTFE/FKM shaft tightness. Full bore. G threaded fittings. PS: 64 bar. TCR-N standard 3-wire 230V electric actuator.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Manual override | By key |
| Declutchable | No |
| DN | DN8 - 1/4'' |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| PS (bar) | 64 |
| Connections | BSP FF |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | TCR-02N |
| Electric actuator series | TCR Series |
| Seats | PTFE-Glass |
| Voltage | 95-265 V AC/DC |
| TS max (°C) | 180 |
| TS min (°C) | -40 |
| Ball valve design | 3-piece body |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body BSP FF DN8 - 1/4'' 95-265 V AC/DC | 272500024110 | S1004797 |
€294.10
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body BSP FF DN8 - 1/4'' 24 V AC/DC | 272500024111 | S1004798 |
€294.10
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body BSP FF DN10 - 3/8'' 95-265 V AC/DC | 272501024110 | S1004799 |
€294.10
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body BSP FF DN10 - 3/8'' 24 V AC/DC | 272501024111 | S1004800 |
€294.10
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' BSP FF 95-265 V AC/DC | 272642024110 | S1004801 |
€294.10
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' BSP FF 24 V AC/DC | 272642024111 | S1004802 |
€294.10
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' BSP FF 95-265 V AC/DC | 272643024110 | S1004803 |
€303.69
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' BSP FF 24 V AC/DC | 272643024111 | S1004804 |
€303.69
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' BSP FF 95-265 V AC/DC | 272644024110 | S1004805 |
€328.10
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' BSP FF 24 V AC/DC | 272644024111 | S1004806 |
€328.10
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 BSP FF 95-265 V AC/DC | 272645024310 | S1004807 |
€413.71
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 BSP FF 24 V AC/DC | 272645024311 | S1004808 |
€413.71
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 BSP FF 95-265 V AC/DC | 272646024310 | S1004809 |
€456.14
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 BSP FF 24 V AC/DC | 272646024311 | S1004810 |
€456.14
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' BSP FF 95-265 V AC/DC | 272647024310 | S1004811 |
€509.19
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' BSP FF 24 V AC/DC | 272647024311 | S1004812 |
€509.19
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN65 - 2''1/2 BSP FF 95-265 V AC/DC | 272648024610 | S1004813 |
€933.50
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN65 - 2''1/2 BSP FF 24 V AC/DC | 272648024611 | S1004814 |
€933.50
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN80 - 3'' BSP FF 95-265 V AC/DC | 272649024610 | S1004815 |
€1,113.84
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN80 - 3'' BSP FF 24 V AC/DC | 272649024611 | S1004816 |
€1,113.84
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN100 - 4'' BSP FF 95-265 V AC/DC | 272650024610 | S1004817 |
€1,442.69
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN100 - 4'' BSP FF 24 V AC/DC | 272650024611 | S1004818 |
€1,442.69
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN8 - 1/4'' Welding BW 95-265 V AC/DC | 272660024110 | S1004819 |
€294.10
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN8 - 1/4'' Welding BW 24 V AC/DC | 272660024111 | S1004820 |
€294.10
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body Welding BW DN10 - 3/8'' 95-265 V AC/DC | 272661024110 | S1004821 |
€294.10
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body Welding BW DN10 - 3/8'' 24 V AC/DC | 272661024111 | S1004822 |
€294.10
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' Welding BW 95-265 V AC/DC | 272662024110 | S1004823 |
€294.10
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' Welding BW 24 V AC/DC | 272662024111 | S1004824 |
€294.10
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' Welding BW 95-265 V AC/DC | 272663024110 | S1004825 |
€303.69
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' Welding BW 24 V AC/DC | 272663024111 | S1004826 |
€303.69
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' Welding BW 95-265 V AC/DC | 272664024110 | S1004827 |
€328.10
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' Welding BW 24 V AC/DC | 272664024111 | S1004828 |
€328.10
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 Welding BW 95-265 V AC/DC | 272665024310 | S1004829 |
€413.71
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 Welding BW 24 V AC/DC | 272665024311 | S1004830 |
€413.71
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 Welding BW 95-265 V AC/DC | 272666024310 | S1004831 |
€456.14
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 Welding BW 24 V AC/DC | 272666024311 | S1004832 |
€456.14
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' Welding BW 95-265 V AC/DC | 272667024310 | S1004833 |
€509.19
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' Welding BW 24 V AC/DC | 272667024311 | S1004834 |
€509.19
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN65 - 2''1/2 Welding BW 95-265 V AC/DC | 272668024610 | S1004835 |
€933.50
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN65 - 2''1/2 Welding BW 24 V AC/DC | 272668024611 | S1004836 |
€933.50
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN80 - 3'' Welding BW 95-265 V AC/DC | 272669024610 | S1004837 |
€1,113.84
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN80 - 3'' Welding BW 24 V AC/DC | 272669024611 | S1004838 |
€1,113.84
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN100 - 4'' Welding BW 95-265 V AC/DC | 272670024610 | S1004839 |
€1,442.69
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN100 - 4'' Welding BW 24 V AC/DC | 272670024611 | S1004840 |
€1,285.47
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' Welding SW 95-265 V AC/DC | 272682024110 | S1004841 |
€294.10
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' Welding SW 24 V AC/DC | 272682024111 | S1004842 |
€294.10
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' Welding SW 95-265 V AC/DC | 272683024110 | S1004843 |
€303.69
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' Welding SW 24 V AC/DC | 272683024111 | S1004844 |
€303.69
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' Welding SW 95-265 V AC/DC | 272684024110 | S1004845 |
€328.10
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' Welding SW 24 V AC/DC | 272684024111 | S1004846 |
€328.10
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 Welding SW 95-265 V AC/DC | 272685024310 | S1004847 |
€413.71
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 Welding SW 24 V AC/DC | 272685024311 | S1004848 |
€413.71
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 Welding SW 95-265 V AC/DC | 272686024310 | S1004849 |
€456.14
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 Welding SW 24 V AC/DC | 272686024311 | S1004850 |
€456.14
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' Welding SW 95-265 V AC/DC | 272687024310 | S1004851 |
€509.19
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' Welding SW 24 V AC/DC | 272687024311 | S1004852 |
€509.19
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN65 - 2''1/2 Welding SW 95-265 V AC/DC | 272688024610 | S1004853 |
€933.50
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN65 - 2''1/2 Welding SW 24 V AC/DC | 272688024611 | S1004854 |
€933.50
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN80 - 3'' Welding SW 95-265 V AC/DC | 272689024610 | S1004855 |
€1,113.84
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN80 - 3'' Welding SW 24 V AC/DC | 272689024611 | S1004856 |
€1,113.84
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN100 - 4'' Welding SW 95-265 V AC/DC | 272690024610 | S1004857 |
€1,442.69
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN100 - 4'' Welding SW 24 V AC/DC | 272690024611 | S1004858 |
€1,285.47
(excl. btw)
|
add to cart |
