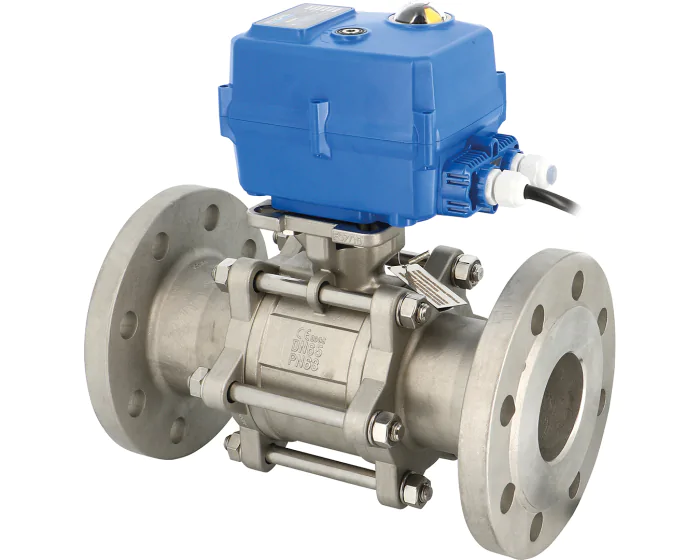

The 3-piece ball valve 711 XS has a CF8M (1.4408) stainless steel body and ball and PTFE/stainless steel seats. Electric actuator TCR-N. PS: 40 bar, TS: -30/+200°C. Flanged attachments PN40 RF.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Manual override | By key |
| Declutchable | No |
| DN | DN65 - 2''1/2 |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| PS (bar) | 40 |
| Connections | Flanged PN40 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | TCR-11N |
| Electric actuator series | TCR Series |
| Seats | PTFE-Stainless steel |
| Voltage | 95-265 V AC/DC |
| TS max (°C) | 200 |
| TS min (°C) | -30 |
| Ball valve design | 3-piece body |
| Warranty period | 1 year |
| CE | Risk category III |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN40 Stainless steel CF8M (1.4408) Full 3-piece body DN65 - 2''1/2 95-265 V AC/DC | 272108024610 | S1004073 |
€1,247.00
(excl. btw)
|
add to cart |
| Flanged PN40 Stainless steel CF8M (1.4408) Full 3-piece body DN65 - 2''1/2 24 V AC/DC | 272108024611 | S1004074 |
€1,247.00
(excl. btw)
|
add to cart |
| Flanged PN40 Stainless steel CF8M (1.4408) Full 3-piece body DN80 - 3'' 95-265 V AC/DC | 272109024610 | S1004075 |
€1,537.53
(excl. btw)
|
add to cart |
| Flanged PN40 Stainless steel CF8M (1.4408) Full 3-piece body DN80 - 3'' 24 V AC/DC | 272109024611 | S1004076 |
€1,537.53
(excl. btw)
|
add to cart |
| Flanged PN40 Stainless steel CF8M (1.4408) Full 3-piece body DN100 - 4'' 95-265 V AC/DC | 272110024700 | S1004077 |
€2,373.31
(excl. btw)
|
add to cart |
