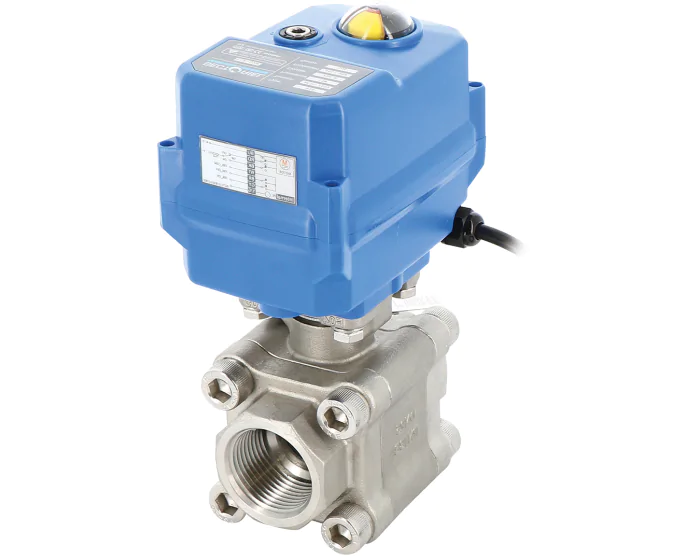

The 703 XS 3-piece body ball valve has a CF8M (1.4408) stainless steel body and ball, PTFE seats. Electric actuation TCR-N. PS: 137bar, TS: -30/+180°C. Fire safety. G or BW threaded fittings.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Manual override | By key |
| Declutchable | No |
| DN | DN15 - 1/2'' |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| PS (bar) | 137 |
| Connections | BSP FF |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | TCR-02N |
| Electric actuator series | TCR Series |
| Seats | PTFE-Glass |
| Voltage | 95-265 V AC/DC |
| TS max (°C) | 180 |
| TS min (°C) | -40 |
| Ball valve design | 3-piece body |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' BSP FF 95-265 V AC/DC | 271372024110 | S1005753 |
€301.34
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' BSP FF 24 V AC/DC | 271372024111 | S1005754 |
€301.34
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' BSP FF 95-265 V AC/DC | 271373024110 | S1005755 |
€317.76
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' BSP FF 24 V AC/DC | 271373024111 | S1005756 |
€317.76
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' BSP FF 95-265 V AC/DC | 271374024110 | S1005757 |
€342.67
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' BSP FF 24 V AC/DC | 271374024111 | S1005758 |
€342.67
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 BSP FF 95-265 V AC/DC | 271375024310 | S1005759 |
€432.53
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 BSP FF 24 V AC/DC | 271375024311 | S1005760 |
€432.53
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 BSP FF 95-265 V AC/DC | 271376024310 | S1005761 |
€482.66
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 BSP FF 24 V AC/DC | 271376024311 | S1005762 |
€482.66
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' BSP FF 95-265 V AC/DC | 271377024310 | S1005763 |
€626.56
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' BSP FF 24 V AC/DC | 271377024311 | S1005764 |
€626.56
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' Welding BW 95-265 V AC/DC | 271382024110 | S1005765 |
€301.34
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' Welding BW 24 V AC/DC | 271382024111 | S1005766 |
€301.34
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' Welding BW 95-265 V AC/DC | 271383024110 | S1005767 |
€317.76
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' Welding BW 24 V AC/DC | 271383024111 | S1005768 |
€317.76
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' Welding BW 95-265 V AC/DC | 271384024110 | S1005769 |
€342.67
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' Welding BW 24 V AC/DC | 271384024111 | S1005770 |
€342.67
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 Welding BW 95-265 V AC/DC | 271385024310 | S1005771 |
€432.53
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 Welding BW 24 V AC/DC | 271385024311 | S1005772 |
€432.53
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 Welding BW 95-265 V AC/DC | 271386024310 | S1005773 |
€482.66
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 Welding BW 24 V AC/DC | 271386024311 | S1005774 |
€482.66
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' Welding BW 95-265 V AC/DC | 271387024310 | S1005775 |
€626.56
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' Welding BW 24 V AC/DC | 271387024311 | S1005776 |
€626.56
(excl. btw)
|
add to cart |
