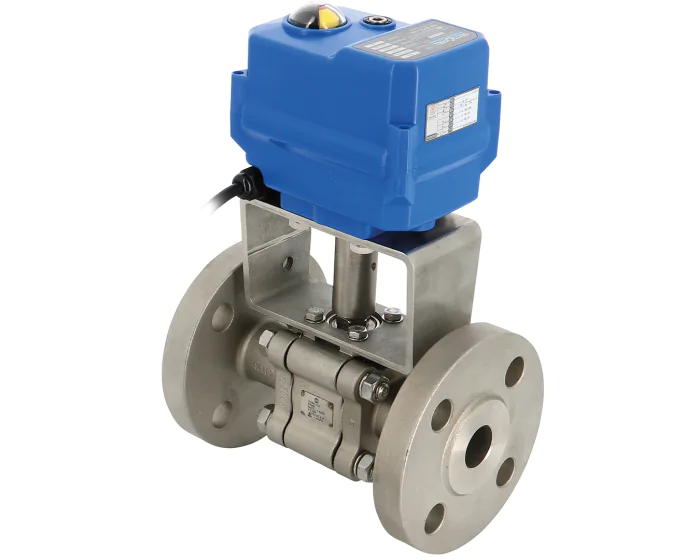

The 703 B 3-piece ball valve has a CF8M (1.4408) stainless steel body and ball and PTFE/carbon seats. Electric actuator TCR-N. PS: 40 bar, TS: -30/+220°C. Flanged attachments PN40 RF.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Manual override | By key |
| Declutchable | No |
| DN | DN15 - 1/2'' |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| PS (bar) | 40 |
| Connections | Flanged PN40 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | TCR-02N |
| Electric actuator series | TCR Series |
| Seats | PTFE-Carbon |
| Voltage | 95-265 V AC/DC |
| TS max (°C) | 220 |
| TS min (°C) | -30 |
| Ball valve design | 3-piece body |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN40 Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' 95-265 V AC/DC | 272232024110 | S1003713 |
€531.39
(excl. btw)
|
add to cart |
| Flanged PN40 Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' 95-265 V AC/DC | 272233024110 | S1003714 |
€563.26
(excl. btw)
|
add to cart |
| Flanged PN40 Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' 95-265 V AC/DC | 272234024110 | S1003715 |
€657.79
(excl. btw)
|
add to cart |
| Flanged PN40 Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 95-265 V AC/DC | 272235024310 | S1003716 |
€849.46
(excl. btw)
|
add to cart |
| Flanged PN40 Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 95-265 V AC/DC | 272236024310 | S1003717 |
€949.09
(excl. btw)
|
add to cart |
| Flanged PN40 Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' 95-265 V AC/DC | 272237024610 | S1003718 |
€1,464.23
(excl. btw)
|
add to cart |
