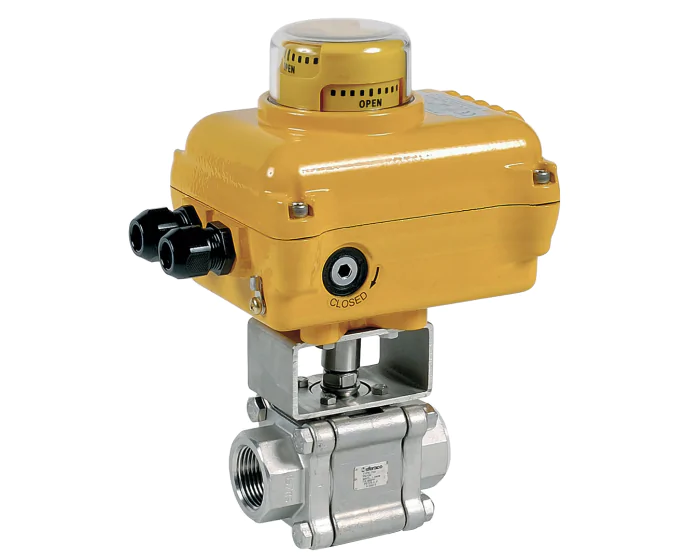

The 703 3-piece ball valve has a CF8M (1.4408) stainless steel body and ball and PTFE/carbon seats. It is actuated with an SA electric actuator. PS: 100 bar, TS: 220°C. Threaded G, NPT or welding BW, SW.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 316 |
| Manual override | By key |
| Declutchable | No |
| DN | DN8 - 1/4'' |
| Duty service | S4 duty service - 50% |
| Face to Face (mm) | 64.8 |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 137 |
| Power (W) | 6 |
| Connections | BSP FF |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | SA 05 |
| Electric actuator series | SA/NA series |
| Seats | PTFE-Carbon |
| Operating time (s) | 17.0 |
| Voltage | 230 V AC |
| TS max (°C) | 220 |
| TS min (°C) | -30 |
| Ball valve design | 3-piece body |
| Warranty period | 1 year |
| CE | Risk category III |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body BSP FF 230 V AC DN8 - 1/4'' | 272240023010 | S1005588 |
€591.61
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body BSP FF 230 V AC DN10 - 3/8'' | 272241023010 | S1005589 |
€593.20
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' BSP FF 230 V AC | 272242023010 | S1005590 |
€599.36
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' BSP FF 230 V AC | 272243023010 | S1005591 |
€596.17
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' BSP FF 24 V AC/DC | 272243023011 | S1005592 |
€596.17
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' BSP FF 230 V AC | 272244023010 | S1005593 |
€651.19
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 BSP FF 230 V AC | 272245023010 | S1005594 |
€713.27
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 BSP FF 230 V AC | 272246023010 | S1005595 |
€793.03
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' BSP FF 230 V AC | 272247023010 | S1005596 |
€1,055.50
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' BSP FF 24 V AC/DC | 272247023011 | S1005597 |
€1,055.50
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body NPT FF 230 V AC DN8 - 1/4'' | 272250023010 | S1005598 |
€591.61
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body NPT FF 230 V AC DN10 - 3/8'' | 272251023010 | S1005599 |
€593.20
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' NPT FF 230 V AC | 272252023010 | S1005600 |
€599.36
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' NPT FF 230 V AC | 272253023010 | S1005601 |
€596.17
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' NPT FF 230 V AC | 272254023010 | S1005602 |
€651.19
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 NPT FF 230 V AC | 272255023010 | S1005603 |
€713.27
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 NPT FF 230 V AC | 272256023010 | S1005604 |
€793.03
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' NPT FF 230 V AC | 272257023010 | S1005605 |
€1,055.50
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' NPT FF 24 V AC/DC | 272257023011 | S1005606 |
€1,055.50
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body 230 V AC DN8 - 1/4'' Welding BW | 272260023010 | S1005607 |
€591.61
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body 230 V AC Welding BW DN10 - 3/8'' | 272261023010 | S1005608 |
€593.20
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' 230 V AC Welding BW | 272262023010 | S1005609 |
€599.36
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' 230 V AC Welding BW | 272263023010 | S1005610 |
€596.17
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' 230 V AC Welding BW | 272264023010 | S1005611 |
€651.19
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 230 V AC Welding BW | 272265023010 | S1005612 |
€713.27
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 230 V AC Welding BW | 272266023010 | S1005613 |
€793.03
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' 230 V AC Welding BW | 272267023010 | S1005614 |
€1,055.50
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' Welding BW 24 V AC/DC | 272267023011 | S1005615 |
€1,055.50
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body 230 V AC DN8 - 1/4'' Welding SW | 272280023010 | S1005616 |
€591.61
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body 230 V AC DN10 - 3/8'' Welding SW | 272281023010 | S1005617 |
€593.20
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' 230 V AC Welding SW | 272282023010 | S1005618 |
€599.36
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' 230 V AC Welding SW | 272283023010 | S1005619 |
€596.17
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 230 V AC Welding SW | 272285023010 | S1005620 |
€713.27
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 230 V AC Welding SW | 272286023010 | S1005621 |
€793.03
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' 230 V AC Welding SW | 272287023010 | S1005622 |
€1,055.50
(excl. btw)
|
add to cart |
