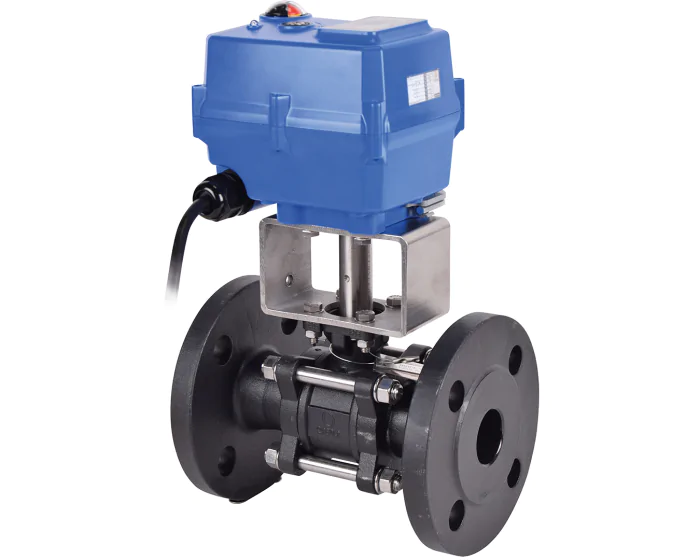

The 710 XS 3-piece body ball valve has a 1.0619 carbon steel body, stainless steel ball and PTFE/stainless steel seats. Electric actuator TCR-N. PS: 40 bar, TS: -20/+200°C. Flanged attachments PN40 RF.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Manual override | By key |
| Declutchable | No |
| DN | DN65 - 2''1/2 |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| Bore | Full |
| PS (bar) | 40 |
| Connections | Flanged PN40 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | TCR-11N |
| Electric actuator series | TCR Series |
| Seats | PTFE-Stainless steel |
| Voltage | 95-265 V AC/DC |
| TS max (°C) | 200 |
| TS min (°C) | -20 |
| Ball valve design | 3-piece body |
| Warranty period | 1 year |
| CE | Risk category III |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body 15 | 271312024110 | S1004346 |
€410.24
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body 20 | 271313024110 | S1004347 |
€441.09
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body 25 | 271314024310 | S1004348 |
€500.39
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body 32 | 271315024310 | S1004349 |
€550.06
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body 40 | 271316024310 | S1004350 |
€573.99
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body 50 | 271317024310 | S1004351 |
€657.71
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body 65 | 271318024610 | S1004352 |
€1,060.59
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body 80 | 271319024610 | S1004353 |
€1,292.60
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body 65 | 271320024700 | S1004354 |
€1,938.06
(excl. btw)
|
add to cart |
