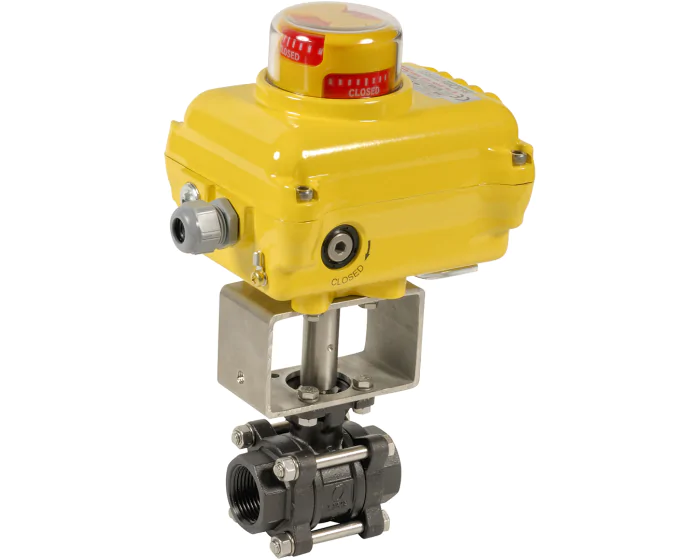

3 piece carbon steel ball valve 737-8-9XS + SA05 electric actuator
€550.59
(excl. btw)
The 3-piece body 737 XS steel ball valve has a 1.0619 steel body, a stainless steel ball and PTFE/stainless steel seats. It is actuated with an electric actuator SA05. PS: 63 bar, TS: -25/+220°C. Threaded or weldable.
Specification
Value
Option certificate 3.1
Yes
Maximum delta P (bar)
10
Shaft/stem matérial
Stainless steel 316
Manual override
By key
Declutchable
No
DN
DN15 - 1/2''
Duty service
S4 duty service - 50%
Face to Face (mm)
75.0
Protection index (IP)
IP 67
Torque limiter
No
Recommended location
Outdoor
Body material
Carbon steel A216 WCB (1.0619)
Number of ways
2
Bore
Full
Packing gland
Graphite
PS (bar)
63
Power (W)
6
Connections
BSP FF
Anti-condensation heater
Standard
Positive safety
No
Function
On-off
Electric actuator type
SA 05
Electric actuator series
SA/NA series
Seats
PTFE-Stainless steel
Operating time (s)
17.0
Voltage
230 V AC
TS max (°C)
220
TS min (°C)
-25
Ball valve design
3-piece body
Warranty period
1 year
CE
Risk category III
Fire safe
Yes
If you have any questions about this product, please feel free to contact us .
Product Name
Product Number
EVAC Number
Price
Add to Cart
4885
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' BSP FF 230 V AC
271202023010
S1005063
€550.59
(excl. btw)
add to cart
4886
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' BSP FF 230 V AC
271203023010
S1005064
€562.13
(excl. btw)
add to cart
4887
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' BSP FF 230 V AC
271204023010
S1005065
€562.57
(excl. btw)
add to cart
4888
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 BSP FF 230 V AC
271205023010
S1005066
€595.11
(excl. btw)
add to cart
4889
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 BSP FF 230 V AC
271206023010
S1005067
€682.24
(excl. btw)
add to cart
4890
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' BSP FF 230 V AC
271207023010
S1005068
€723.87
(excl. btw)
add to cart
4891
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' 230 V AC Welding BW
271212023010
S1005069
€550.59
(excl. btw)
add to cart
4892
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' 230 V AC Welding BW
271213023010
S1005070
€562.13
(excl. btw)
add to cart
4893
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' 230 V AC Welding BW
271214023010
S1005071
€562.57
(excl. btw)
add to cart
4894
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 230 V AC Welding BW
271215023010
S1005072
€595.11
(excl. btw)
add to cart
4895
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 230 V AC Welding BW
271216023010
S1005073
€682.24
(excl. btw)
add to cart
4896
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' 230 V AC Welding BW
271217023010
S1005074
€723.87
(excl. btw)
add to cart
4897
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' 230 V AC Welding SW
271232023010
S1005075
€550.80
(excl. btw)
add to cart
4898
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' 230 V AC Welding SW
271233023010
S1005076
€555.90
(excl. btw)
add to cart
4899
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' 230 V AC Welding SW
271234023010
S1005077
€561.00
(excl. btw)
add to cart
4900
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 230 V AC Welding SW
271235023010
S1005078
€571.20
(excl. btw)
add to cart
4901
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 230 V AC Welding SW
271236023010
S1005079
€624.24
(excl. btw)
add to cart
4902
BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' 230 V AC Welding SW
271237023010
S1005080
€744.60
(excl. btw)
add to cart
