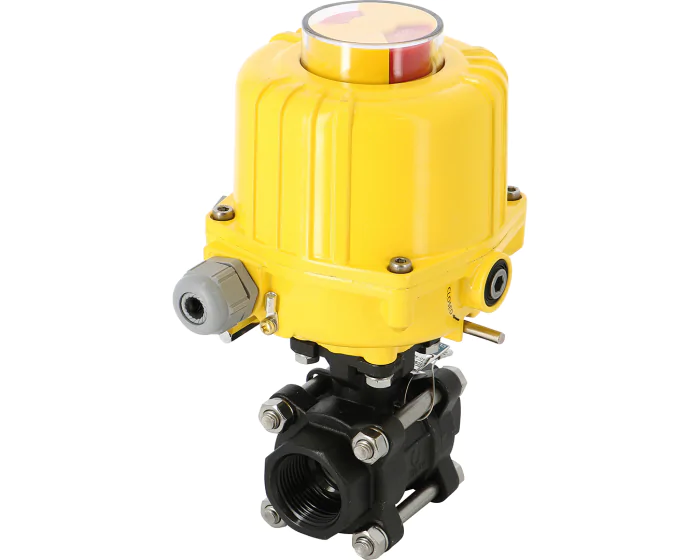

The 3-piece body 737 XS steel ball valve has a 1.0619 steel body, a stainless steel ball and PTFE/stainless steel seats. It is actuated with an SA electric actuator. PS: 63 bar, TS: -25/+220°C. Threaded or weldable.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Manual override | By key |
| Declutchable | Yes |
| DN | DN15 - 1/2'' |
| Duty service | S4 duty service - 50% |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 63 |
| Power (W) | 18 |
| Connections | BSP FF |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | SA 03 |
| Electric actuator series | SA/NA series |
| Seats | PTFE-Stainless steel |
| Operating time (s) | 12.0 |
| Voltage | 230 V AC |
| TS max (°C) | 220 |
| TS min (°C) | -25 |
| Ball valve design | 3-piece body |
| Warranty period | 1 year |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' BSP FF SA 03 | 271202023000D | S1004701 |
€335.00
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' BSP FF SA 03 | 271203023000D | S1004702 |
€346.53
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' BSP FF SA 03 | 271204023000D | S1004703 |
€360.49
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 BSP FF SA 05 | 271205023010D | S1004704 |
€543.39
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 BSP FF SA 05 | 271206023010D | S1004705 |
€589.31
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' BSP FF SA 05 | 271207023010D | S1004706 |
€630.94
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' Welding BW SA 03 | 271212023000D | S1004707 |
€335.00
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' Welding BW SA 03 | 271213023000D | S1004708 |
€346.53
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' Welding BW SA 03 | 271214023000D | S1004709 |
€360.49
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 Welding BW SA 05 | 271215023010D | S1004710 |
€543.39
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 Welding BW SA 05 | 271216023010D | S1004711 |
€589.31
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' Welding BW SA 05 | 271217023010D | S1004712 |
€630.94
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' Welding SW SA 03 | 271232023000D | S1004713 |
€335.00
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' Welding SW SA 03 | 271233023000D | S1004714 |
€346.53
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' Welding SW SA 03 | 271234023000D | S1004715 |
€360.49
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 Welding SW SA 05 | 271235023010D | S1004716 |
€543.39
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 Welding SW SA 05 | 271236023010D | S1004717 |
€589.31
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' Welding SW SA 05 | 271237023010D | S1004718 |
€630.94
(excl. btw)
|
add to cart |
