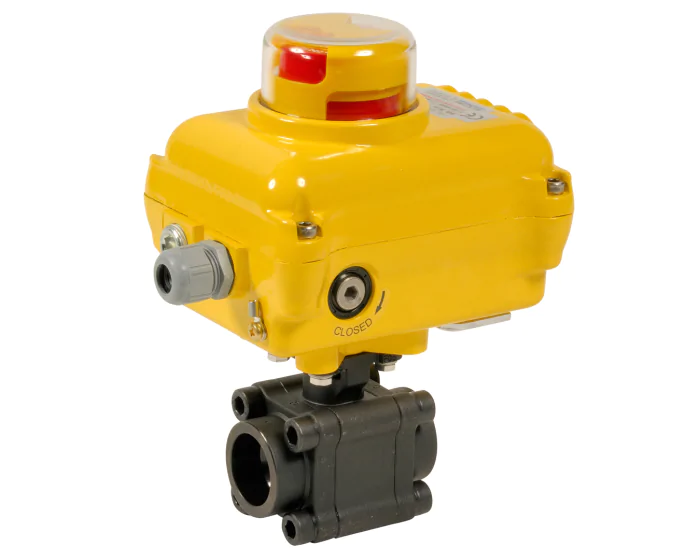

The 702 3-piece body ball valve has a WCB steel body, stainless steel ball and PTFE/carbon seats. It is actuated with an SA electric actuator. PS: 100 bar, TS: 220°C. Threaded G or welding BW.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 316 |
| Manual override | By key |
| Declutchable | No |
| DN | DN8 - 1/4'' |
| Duty service | S4 duty service - 50% |
| Face to Face (mm) | 64.8 |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 137 |
| Power (W) | 6 |
| Connections | BSP FF |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | SA 05 |
| Electric actuator series | SA/NA series |
| Seats | PTFE-Carbon |
| Operating time (s) | 17.0 |
| Voltage | 230 V AC |
| TS max (°C) | 220 |
| TS min (°C) | -20 |
| Ball valve design | 3-piece body |
| Warranty period | 1 year |
| CE | Risk category III |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body BSP FF DN8 - 1/4'' | 271540023010 | S1005256 |
€579.29
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body BSP FF DN10 - 3/8'' | 271541023010 | S1005257 |
€580.26
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' BSP FF | 271542023010 | S1005258 |
€583.44
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' BSP FF | 271543023010 | S1005259 |
€594.06
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' BSP FF | 271544023010 | S1005260 |
€648.26
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 BSP FF | 271545023010 | S1005261 |
€639.66
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 BSP FF | 271546023010 | S1005262 |
€669.39
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' BSP FF | 271547023010 | S1005263 |
€927.73
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN8 - 1/4'' Welding BW | 271560023010 | S1005264 |
€579.29
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body Welding BW DN10 - 3/8'' | 271561023010 | S1005265 |
€580.26
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' Welding BW | 271562023010 | S1005266 |
€583.44
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' Welding BW | 271563023010 | S1005267 |
€594.06
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' Welding BW | 271564023010 | S1005268 |
€648.26
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 Welding BW | 271565023010 | S1005269 |
€639.66
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 Welding BW | 271566023010 | S1005270 |
€669.39
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' Welding BW | 271567023010 | S1005271 |
€927.73
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN8 - 1/4'' Welding SW | 271580023010 | S1005272 |
€579.29
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN10 - 3/8'' Welding SW | 271581023010 | S1005273 |
€580.26
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' Welding SW | 271582023010 | S1005274 |
€583.44
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' Welding SW | 271583023010 | S1005275 |
€594.06
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' Welding SW | 271584023010 | S1005276 |
€648.26
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 Welding SW | 271585023010 | S1005277 |
€639.66
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 Welding SW | 271586023010 | S1005278 |
€669.39
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' Welding SW | 271587023010 | S1005279 |
€927.73
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body NPT FF DN8 - 1/4'' | 271590023010 | S1005280 |
€579.29
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body NPT FF DN10 - 3/8'' | 271591023010 | S1005281 |
€580.26
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' NPT FF | 271592023010 | S1005282 |
€583.44
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' NPT FF | 271593023010 | S1005283 |
€594.06
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' NPT FF | 271594023010 | S1005284 |
€648.26
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 NPT FF | 271595023010 | S1005285 |
€639.66
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 NPT FF | 271596023010 | S1005286 |
€669.39
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' NPT FF | 271597023010 | S1005287 |
€927.73
(excl. btw)
|
add to cart |
