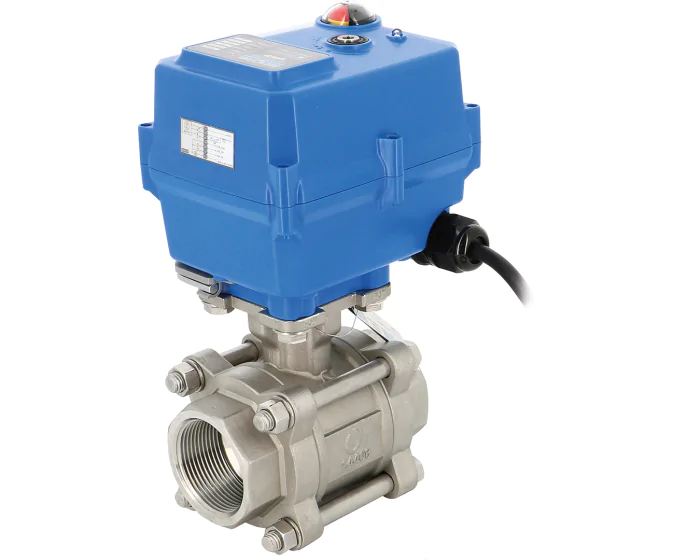

3-piece stainless steel ball valve designed with stainless steel body and ball, PTFE seats and PTFE/FKM shaft tightness. Full bore. G threaded fittings. PS: 64 bar. TCR-N-KT32 230V electric actuator with capacitor return.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Manual override | By key |
| Declutchable | No |
| DN | DN8 - 1/4'' |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| PS (bar) | 64 |
| Connections | BSP FF |
| Anti-condensation heater | Standard |
| Positive safety | Yes |
| Function | On-off |
| Electric actuator type | TCR-02N-KT32 |
| Electric actuator series | TCR Series |
| Seats | PTFE-Glass |
| Voltage | 95-265 V AC/DC |
| TS max (°C) | 180 |
| TS min (°C) | -40 |
| Ball valve design | 3-piece body |
| Positive safety type | Super capacitor |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body BSP FF DN8 - 1/4'' 95-265 V AC/DC | 272500024120 | S1005289 |
€362.37
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body BSP FF DN8 - 1/4'' 24 V AC/DC | 272500024121 | S1005290 |
€362.37
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body BSP FF DN10 - 3/8'' 95-265 V AC/DC | 272501024120 | S1005291 |
€362.39
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body BSP FF DN10 - 3/8'' 24 V AC/DC | 272501024121 | S1005292 |
€362.39
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' BSP FF 95-265 V AC/DC | 272642024120 | S1005293 |
€362.39
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' BSP FF 24 V AC/DC | 272642024121 | S1005294 |
€362.39
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' BSP FF 95-265 V AC/DC | 272643024120 | S1005295 |
€371.97
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' BSP FF 24 V AC/DC | 272643024121 | S1005296 |
€371.97
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' BSP FF 95-265 V AC/DC | 272644024120 | S1005297 |
€396.39
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' BSP FF 24 V AC/DC | 272644024121 | S1005298 |
€396.39
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 BSP FF 95-265 V AC/DC | 272645024320 | S1005299 |
€476.81
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 BSP FF 24 V AC/DC | 272645024321 | S1005300 |
€476.81
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 BSP FF 95-265 V AC/DC | 272646024320 | S1005301 |
€532.21
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 BSP FF 24 V AC/DC | 272646024321 | S1005302 |
€532.21
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' BSP FF 95-265 V AC/DC | 272647024320 | S1005303 |
€581.06
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' BSP FF 24 V AC/DC | 272647024321 | S1005304 |
€581.06
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN65 - 2''1/2 BSP FF 95-265 V AC/DC | 272648024620 | S1005305 |
€997.16
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN65 - 2''1/2 BSP FF 24 V AC/DC | 272648024621 | S1005306 |
€997.16
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN80 - 3'' BSP FF 95-265 V AC/DC | 272649024620 | S1005307 |
€1,166.89
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN80 - 3'' BSP FF 24 V AC/DC | 272649024621 | S1005308 |
€1,166.89
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN100 - 4'' BSP FF 95-265 V AC/DC | 272650024620 | S1005309 |
€1,516.94
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN100 - 4'' BSP FF 24 V AC/DC | 272650024621 | S1005310 |
€1,516.94
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN8 - 1/4'' Welding BW 95-265 V AC/DC | 272660024120 | S1005311 |
€362.37
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN8 - 1/4'' Welding BW 24 V AC/DC | 272660024121 | S1005312 |
€362.37
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body Welding BW DN10 - 3/8'' 95-265 V AC/DC | 272661024120 | S1005313 |
€362.39
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body Welding BW DN10 - 3/8'' 24 V AC/DC | 272661024121 | S1005314 |
€362.39
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' Welding BW 95-265 V AC/DC | 272662024120 | S1005315 |
€362.39
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' Welding BW 24 V AC/DC | 272662024121 | S1005316 |
€362.39
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' Welding BW 95-265 V AC/DC | 272663024120 | S1005317 |
€371.97
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' Welding BW 24 V AC/DC | 272663024121 | S1005318 |
€371.97
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' Welding BW 95-265 V AC/DC | 272664024120 | S1005319 |
€396.39
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' Welding BW 24 V AC/DC | 272664024121 | S1005320 |
€396.39
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 Welding BW 95-265 V AC/DC | 272665024320 | S1005321 |
€476.81
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 Welding BW 24 V AC/DC | 272665024321 | S1005322 |
€476.81
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 Welding BW 95-265 V AC/DC | 272666024320 | S1005323 |
€532.21
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 Welding BW 24 V AC/DC | 272666024321 | S1005324 |
€532.21
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' Welding BW 95-265 V AC/DC | 272667024320 | S1005325 |
€581.06
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' Welding BW 24 V AC/DC | 272667024321 | S1005326 |
€581.06
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN65 - 2''1/2 Welding BW 95-265 V AC/DC | 272668024620 | S1005327 |
€997.16
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN65 - 2''1/2 Welding BW 24 V AC/DC | 272668024621 | S1005328 |
€997.16
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN80 - 3'' Welding BW 95-265 V AC/DC | 272669024620 | S1005329 |
€1,166.89
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN80 - 3'' Welding BW 24 V AC/DC | 272669024621 | S1005330 |
€1,166.89
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN100 - 4'' Welding BW 95-265 V AC/DC | 272670024620 | S1005331 |
€1,516.94
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN100 - 4'' Welding BW 24 V AC/DC | 272670024621 | S1005332 |
€1,335.66
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' Welding SW 95-265 V AC/DC | 272682024120 | S1005333 |
€362.39
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' Welding SW 24 V AC/DC | 272682024121 | S1005334 |
€362.39
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' Welding SW 95-265 V AC/DC | 272683024120 | S1005335 |
€371.97
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' Welding SW 24 V AC/DC | 272683024121 | S1005336 |
€371.97
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' Welding SW 95-265 V AC/DC | 272684024120 | S1005337 |
€396.39
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' Welding SW 24 V AC/DC | 272684024121 | S1005338 |
€396.39
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 Welding SW 95-265 V AC/DC | 272685024320 | S1005339 |
€476.81
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 Welding SW 24 V AC/DC | 272685024321 | S1005340 |
€476.81
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 Welding SW 95-265 V AC/DC | 272686024320 | S1005341 |
€532.21
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 Welding SW 24 V AC/DC | 272686024321 | S1005342 |
€532.21
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' Welding SW 95-265 V AC/DC | 272687024320 | S1005343 |
€581.06
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' Welding SW 24 V AC/DC | 272687024321 | S1005344 |
€581.06
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN65 - 2''1/2 Welding SW 95-265 V AC/DC | 272688024620 | S1005345 |
€997.16
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN65 - 2''1/2 Welding SW 24 V AC/DC | 272688024621 | S1005346 |
€997.16
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN80 - 3'' Welding SW 95-265 V AC/DC | 272689024620 | S1005347 |
€1,166.89
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN80 - 3'' Welding SW 24 V AC/DC | 272689024621 | S1005348 |
€1,166.89
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN100 - 4'' Welding SW 95-265 V AC/DC | 272690024620 | S1005349 |
€1,516.94
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN100 - 4'' Welding SW 24 V AC/DC | 272690024621 | S1005350 |
€1,335.66
(excl. btw)
|
add to cart |
