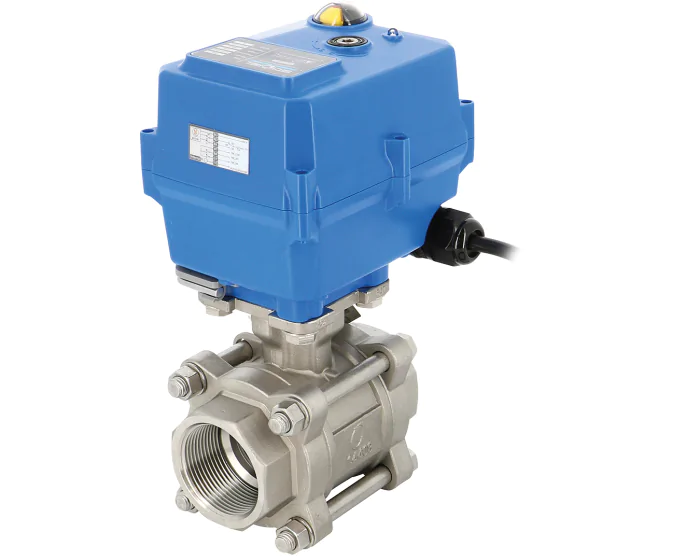

3-piece stainless steel ball valve designed with stainless steel body and ball, PTFE seats and PTFE/FKM shaft tightness. Full bore. G threaded fittings. PS: 64 bar. TCR-NH 230V fast electric actuator.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Manual override | By key |
| Declutchable | No |
| DN | DN8 - 1/4'' |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| PS (bar) | 64 |
| Connections | BSP FF |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | TCR-05NH |
| Electric actuator series | TCR Series |
| Seats | PTFE-Glass |
| Voltage | 95-265 V AC/DC |
| TS max (°C) | 180 |
| TS min (°C) | -40 |
| Ball valve design | 3-piece body |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body BSP FF DN8 - 1/4'' 95-265 V AC/DC | 272500024330 | S1004969 |
€454.91
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body BSP FF DN8 - 1/4'' 24 V AC/DC | 272500024331 | S1004970 |
€454.91
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body BSP FF DN10 - 3/8'' 95-265 V AC/DC | 272501024330 | S1004971 |
€456.14
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body BSP FF DN10 - 3/8'' 24 V AC/DC | 272501024331 | S1004972 |
€456.14
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' BSP FF 95-265 V AC/DC | 272642024330 | S1004973 |
€475.63
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' BSP FF 24 V AC/DC | 272642024331 | S1004974 |
€475.63
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' BSP FF 95-265 V AC/DC | 272643024330 | S1004975 |
€484.71
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' BSP FF 24 V AC/DC | 272643024331 | S1004976 |
€484.71
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' BSP FF 95-265 V AC/DC | 272644024330 | S1004977 |
€485.46
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' BSP FF 24 V AC/DC | 272644024331 | S1004978 |
€485.46
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 BSP FF 95-265 V AC/DC | 272645024330 | S1004979 |
€485.46
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 BSP FF 24 V AC/DC | 272645024331 | S1004980 |
€485.46
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 BSP FF 95-265 V AC/DC | 272646024330 | S1004981 |
€522.19
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 BSP FF 24 V AC/DC | 272646024331 | S1004982 |
€522.19
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' BSP FF 95-265 V AC/DC | 272647024330 | S1004983 |
€571.03
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' BSP FF 24 V AC/DC | 272647024331 | S1004984 |
€571.03
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN65 - 2''1/2 BSP FF 95-265 V AC/DC | 272648024630 | S1004985 |
€991.86
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN65 - 2''1/2 BSP FF 24 V AC/DC | 272648024631 | S1004986 |
€991.86
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN80 - 3'' BSP FF 95-265 V AC/DC | 272649024630 | S1004987 |
€1,161.59
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN80 - 3'' BSP FF 24 V AC/DC | 272649024631 | S1004988 |
€1,161.59
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN100 - 4'' BSP FF 95-265 V AC/DC | 272650024630 | S1004989 |
€1,506.34
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN100 - 4'' BSP FF 24 V AC/DC | 272650024631 | S1004990 |
€1,506.34
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN8 - 1/4'' Welding BW 95-265 V AC/DC | 272660024330 | S1004991 |
€454.91
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN8 - 1/4'' Welding BW 24 V AC/DC | 272660024331 | S1004992 |
€454.91
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body Welding BW DN10 - 3/8'' 95-265 V AC/DC | 272661024330 | S1004993 |
€456.14
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body Welding BW DN10 - 3/8'' 24 V AC/DC | 272661024331 | S1004994 |
€456.14
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' Welding BW 95-265 V AC/DC | 272662024330 | S1004995 |
€475.63
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' Welding BW 24 V AC/DC | 272662024331 | S1004996 |
€475.63
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' Welding BW 95-265 V AC/DC | 272663024330 | S1004997 |
€484.71
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' Welding BW 24 V AC/DC | 272663024331 | S1004998 |
€484.71
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' Welding BW 95-265 V AC/DC | 272664024330 | S1004999 |
€485.46
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' Welding BW 24 V AC/DC | 272664024331 | S1005000 |
€485.46
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 Welding BW 95-265 V AC/DC | 272665024330 | S1005001 |
€485.46
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 Welding BW 24 V AC/DC | 272665024331 | S1005002 |
€485.46
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 Welding BW 95-265 V AC/DC | 272666024330 | S1005003 |
€522.19
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 Welding BW 24 V AC/DC | 272666024331 | S1005004 |
€522.19
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' Welding BW 95-265 V AC/DC | 272667024330 | S1005005 |
€571.03
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' Welding BW 24 V AC/DC | 272667024331 | S1005006 |
€571.03
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN65 - 2''1/2 Welding BW 95-265 V AC/DC | 272668024630 | S1005007 |
€991.86
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN65 - 2''1/2 Welding BW 24 V AC/DC | 272668024631 | S1005008 |
€991.86
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN80 - 3'' Welding BW 95-265 V AC/DC | 272669024630 | S1005009 |
€1,161.59
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN80 - 3'' Welding BW 24 V AC/DC | 272669024631 | S1005010 |
€1,161.59
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN100 - 4'' Welding BW 95-265 V AC/DC | 272670024630 | S1005011 |
€1,506.34
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN100 - 4'' Welding BW 24 V AC/DC | 272670024631 | S1005012 |
€1,319.39
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' Welding SW 95-265 V AC/DC | 272682024330 | S1005013 |
€475.63
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' Welding SW 24 V AC/DC | 272682024331 | S1005014 |
€475.63
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' Welding SW 95-265 V AC/DC | 272683024330 | S1005015 |
€484.71
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' Welding SW 24 V AC/DC | 272683024331 | S1005016 |
€484.71
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' Welding SW 95-265 V AC/DC | 272684024330 | S1005017 |
€485.46
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' Welding SW 24 V AC/DC | 272684024331 | S1005018 |
€485.46
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 Welding SW 95-265 V AC/DC | 272685024330 | S1005019 |
€485.46
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 Welding SW 24 V AC/DC | 272685024331 | S1005020 |
€485.46
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 Welding SW 95-265 V AC/DC | 272686024330 | S1005021 |
€522.19
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 Welding SW 24 V AC/DC | 272686024331 | S1005022 |
€522.19
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' Welding SW 95-265 V AC/DC | 272687024330 | S1005023 |
€571.03
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' Welding SW 24 V AC/DC | 272687024331 | S1005024 |
€571.03
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN65 - 2''1/2 Welding SW 95-265 V AC/DC | 272688024630 | S1005025 |
€991.86
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN65 - 2''1/2 Welding SW 24 V AC/DC | 272688024631 | S1005026 |
€991.86
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN80 - 3'' Welding SW 95-265 V AC/DC | 272689024630 | S1005027 |
€1,161.59
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN80 - 3'' Welding SW 24 V AC/DC | 272689024631 | S1005028 |
€1,161.59
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN100 - 4'' Welding SW 95-265 V AC/DC | 272690024630 | S1005029 |
€1,506.34
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN100 - 4'' Welding SW 24 V AC/DC | 272690024631 | S1005030 |
€1,319.39
(excl. btw)
|
add to cart |
