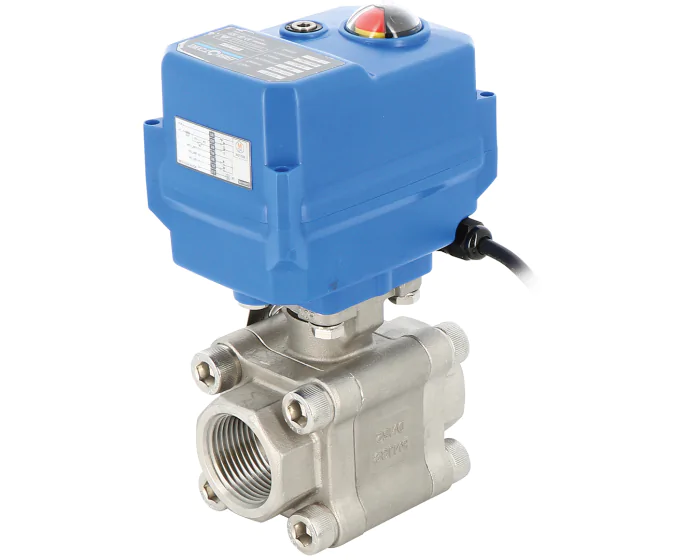

The 3-piece body and ball valve 703 XS is made of stainless steel CF8M (1.4408), with PTFE seats. Actuation fail safe TCR-N-KT32. PS: 137 bar, TS: -30/+180°C. Fire safe. Threaded G or BW.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Manual override | By key |
| Declutchable | No |
| DN | DN15 - 1/2'' |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| PS (bar) | 137 |
| Connections | BSP FF |
| Anti-condensation heater | Standard |
| Positive safety | Yes |
| Function | On-off |
| Electric actuator type | TCR-02N-KT32 |
| Electric actuator series | TCR Series |
| Seats | PTFE-Glass |
| Voltage | 95-265 V AC/DC |
| TS max (°C) | 180 |
| TS min (°C) | -40 |
| Ball valve design | 3-piece body |
| Positive safety type | Super capacitor |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' BSP FF 95-265 V AC/DC | 271372024120 | S1005794 |
€369.61
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' BSP FF 24 V AC/DC | 271372024121 | S1005795 |
€369.61
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' BSP FF 95-265 V AC/DC | 271373024120 | S1005796 |
€386.03
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' BSP FF 24 V AC/DC | 271373024121 | S1005797 |
€386.03
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' BSP FF 95-265 V AC/DC | 271374024120 | S1005798 |
€410.96
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' BSP FF 24 V AC/DC | 271374024121 | S1005799 |
€410.96
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 BSP FF 95-265 V AC/DC | 271375024320 | S1005800 |
€518.20
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 BSP FF 24 V AC/DC | 271375024321 | S1005801 |
€518.20
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 BSP FF 95-265 V AC/DC | 271376024320 | S1005802 |
€562.21
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 BSP FF 24 V AC/DC | 271376024321 | S1005803 |
€562.21
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' BSP FF 95-265 V AC/DC | 271377024320 | S1005804 |
€712.20
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' BSP FF 24 V AC/DC | 271377024321 | S1005805 |
€712.20
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' Welding BW 95-265 V AC/DC | 271382024120 | S1005806 |
€369.61
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' Welding BW 24 V AC/DC | 271382024121 | S1005807 |
€369.61
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' Welding BW 95-265 V AC/DC | 271383024120 | S1005808 |
€386.03
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' Welding BW 24 V AC/DC | 271383024121 | S1005809 |
€386.03
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' Welding BW 95-265 V AC/DC | 271384024120 | S1005810 |
€410.96
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' Welding BW 24 V AC/DC | 271384024121 | S1005811 |
€410.96
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 Welding BW 95-265 V AC/DC | 271385024320 | S1005812 |
€518.20
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 Welding BW 24 V AC/DC | 271385024321 | S1005813 |
€518.20
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 Welding BW 95-265 V AC/DC | 271386024320 | S1005814 |
€562.21
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 Welding BW 24 V AC/DC | 271386024321 | S1005815 |
€562.21
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' Welding BW 95-265 V AC/DC | 271387024320 | S1005816 |
€712.20
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' Welding BW 24 V AC/DC | 271387024321 | S1005817 |
€712.20
(excl. btw)
|
add to cart |
