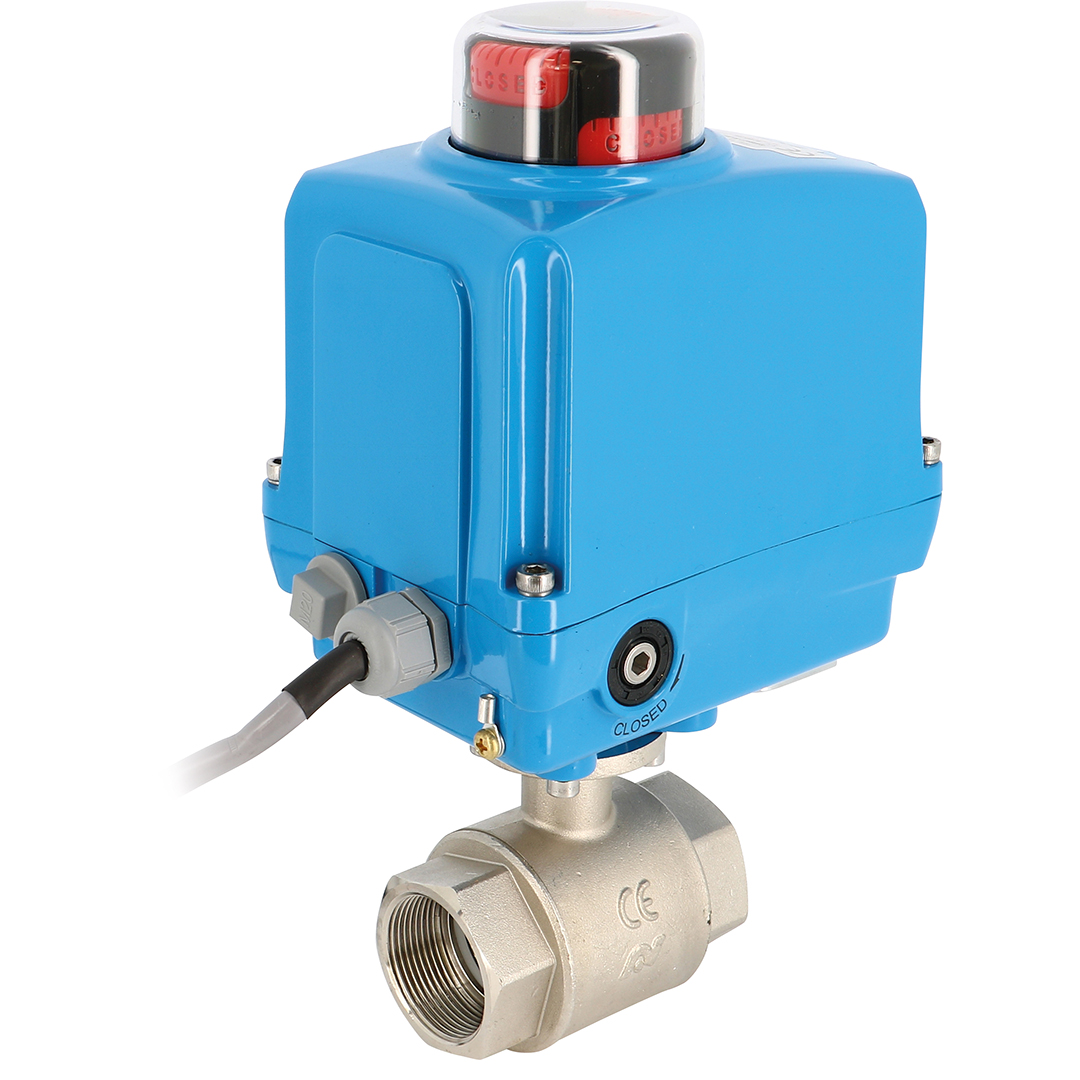

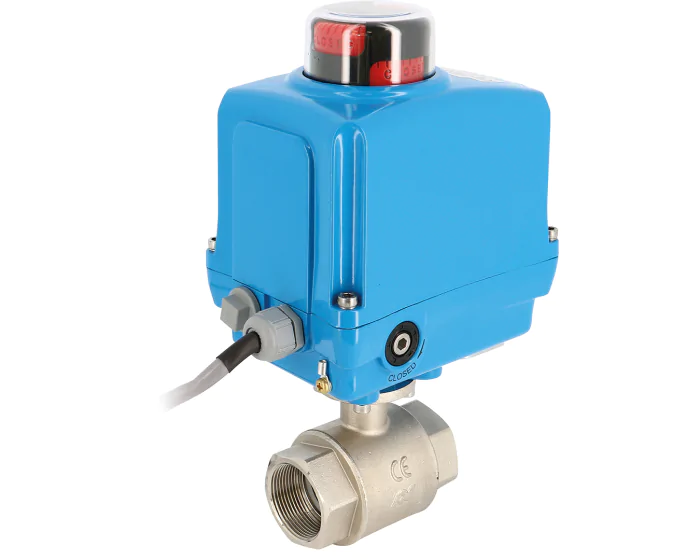

The 2-way brass ball valve 502XS with SA electric actuator features a CW617N brass body, PTFE seats, and full bore design. Equipped with capacitor return for reliable automation, it ensures precise control and durability in fluid systems.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Manual override | By key |
| Declutchable | No |
| DN | DN25 - 1'' |
| Duty service | S4 duty service - 50% |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Brass CW617N |
| Number of ways | 2 |
| Bore | Full |
| PS (bar) | 16 |
| Connections | BSP FF |
| Anti-condensation heater | Standard |
| Positive safety | Yes |
| Function | On-off |
| Electric actuator type | SA05 SCP |
| Electric actuator series | SA/NA series |
| Seats | PTFE |
| Operating time (s) | 8 |
| Voltage | 230 V AC |
| TS max (°C) | 100 |
| TS min (°C) | -10 |
| Ball valve design | 2-piece body |
| Positive safety type | Super capacitor |
| Warranty period | 1 year |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Brass CW617N Full 2-piece body DN25 - 1'' | 270004023065 | S1004367 |
€1,371.47
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN32 - 1''1/4 | 270005023065 | S1004368 |
€1,386.41
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN40 - 1''1/2 | 270006023065 | S1004369 |
€1,408.16
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN50 - 2'' | 270007023065 | S1004370 |
€1,433.76
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN8 - 1/4'' | 270090023065 | S1004371 |
€1,383.63
(excl. btw)
|
add to cart |
