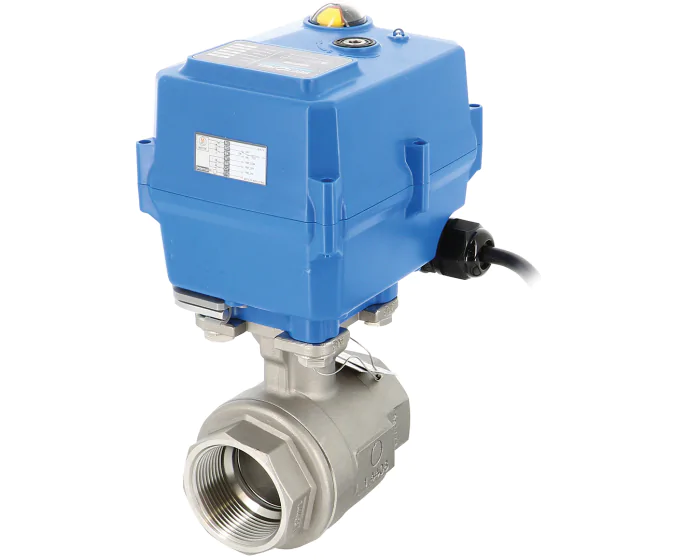

The 715XS 2-piece stainless steel ball valve, full bore with PTFE seats, is paired with the TCR-NH 230V fast actuator. Designed for rapid opening and closing, it ensures efficient automation of fluid control in demanding networks, reliable
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Manual override | By key |
| Declutchable | No |
| DN | DN15 - 1/2'' |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| PS (bar) | 63 |
| Connections | BSP FF |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | TCR-02NH |
| Electric actuator series | TCR Series |
| Seats | PTFE-Glass |
| Voltage | 95-265 V AC/DC |
| TS max (°C) | 180 |
| TS min (°C) | -10 |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN15 - 1/2'' 95-265 V AC/DC | 272402024130 | S1004912 |
€365.64
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN15 - 1/2'' 24 V AC/DC | 272402024131 | S1004913 |
€365.64
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN20 - 3/4'' 95-265 V AC/DC | 272403024130 | S1004914 |
€378.14
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN20 - 3/4'' 24 V AC/DC | 272403024131 | S1004915 |
€378.14
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN25 - 1'' 95-265 V AC/DC | 272404024130 | S1004916 |
€403.10
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN25 - 1'' 24 V AC/DC | 272404024131 | S1004917 |
€403.10
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN32 - 1''1/4 95-265 V AC/DC | 272405024130 | S1004918 |
€406.19
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN32 - 1''1/4 24 V AC/DC | 272405024131 | S1004919 |
€406.19
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN40 - 1''1/2 95-265 V AC/DC | 272406024330 | S1004920 |
€481.07
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN40 - 1''1/2 24 V AC/DC | 272406024331 | S1004921 |
€481.07
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN50 - 2'' 95-265 V AC/DC | 272407024330 | S1004922 |
€536.60
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN50 - 2'' 24 V AC/DC | 272407024331 | S1004923 |
€536.60
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN65 - 2''1/2 95-265 V AC/DC | 272408024630 | S1004924 |
€784.99
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN65 - 2''1/2 24 V AC/DC | 272408024631 | S1004925 |
€784.99
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN80 - 3'' 95-265 V AC/DC | 272409024630 | S1004926 |
€928.20
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN80 - 3'' 24 V AC/DC | 272409024631 | S1004927 |
€928.20
(excl. btw)
|
add to cart |
