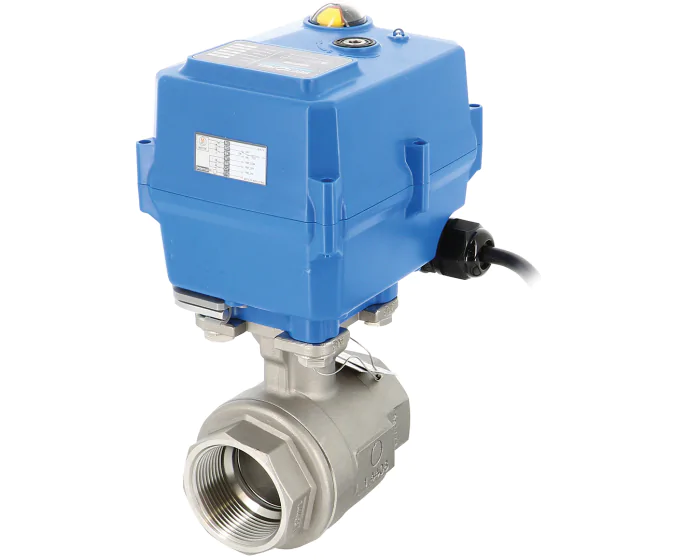

The 715XS 2-piece stainless steel ball valve, full bore with PTFE seats, is equipped with a TCR-N 3-wire 230V actuator. This system ensures precise open/close control, reliable automation in industrial networks, and safe operation under 63
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Manual override | By key |
| Declutchable | No |
| DN | DN15 - 1/2'' |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| PS (bar) | 63 |
| Connections | BSP FF |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | TCR-02N |
| Electric actuator series | TCR Series |
| Seats | PTFE-Glass |
| Voltage | 95-265 V AC/DC |
| TS max (°C) | 180 |
| TS min (°C) | -10 |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Range | Industry |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN15 - 1/2'' 95-265 V AC/DC | 272402024110 | S1004779 |
€280.97
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN15 - 1/2'' 24 V AC/DC | 272402024111 | S1004780 |
€280.97
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN20 - 3/4'' 95-265 V AC/DC | 272403024110 | S1004781 |
€293.54
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN20 - 3/4'' 24 V AC/DC | 272403024111 | S1004782 |
€293.54
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN25 - 1'' 95-265 V AC/DC | 272404024110 | S1004783 |
€304.66
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN25 - 1'' 24 V AC/DC | 272404024111 | S1004784 |
€304.66
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN32 - 1''1/4 95-265 V AC/DC | 272405024110 | S1004785 |
€321.51
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN32 - 1''1/4 24 V AC/DC | 272405024111 | S1004786 |
€321.51
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN40 - 1''1/2 95-265 V AC/DC | 272406024310 | S1004787 |
€405.46
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN40 - 1''1/2 24 V AC/DC | 272406024311 | S1004788 |
€405.46
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN50 - 2'' 95-265 V AC/DC | 272407024310 | S1004789 |
€472.06
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN50 - 2'' 24 V AC/DC | 272407024311 | S1004790 |
€472.06
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN65 - 2''1/2 95-265 V AC/DC | 272408024610 | S1004791 |
€753.17
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN65 - 2''1/2 24 V AC/DC | 272408024611 | S1004792 |
€753.17
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN80 - 3'' 95-265 V AC/DC | 272409024610 | S1004793 |
€880.31
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN80 - 3'' 24 V AC/DC | 272409024611 | S1004794 |
€880.31
(excl. btw)
|
add to cart |
