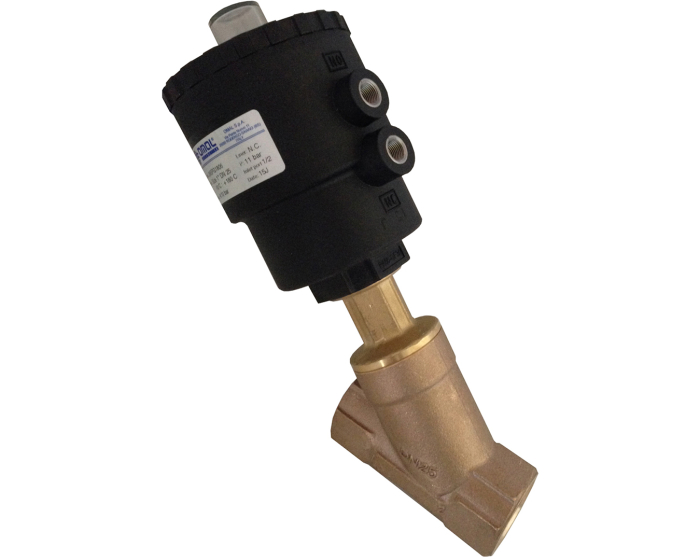

The ZEUS Type 1424 pneumatic valve is a normally open (NO) bronze valve for all compatible fluids.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 16 |
| ATEX compatible | No |
| DN | DN10 - 3/8'' |
| Gasket | PTFE |
| Kv (m³/h) | 4.90 |
| Body material | Bronze CB 491K |
| Bearing | PTFE |
| Position | Normally open |
| PS (bar) | 16 |
| Connections | BSP FF |
| Control head | 50 |
| TS max (°C) | 180 |
| TS min (°C) | -10 |
| Flow entry | Below the seat |
| Solenoid pilot valve ways | 2/2 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Bronze CB 491K 50 DN10 - 3/8'' | 1424303 | S1000410 |
€0.00
(excl. btw)
|
add to cart |
| BSP FF Bronze CB 491K 50 DN15 - 1/2'' | 1424304 | S1000411 |
€148.51
(excl. btw)
|
add to cart |
| BSP FF Bronze CB 491K 50 DN20 - 3/4'' | 1424305 | S1000412 |
€148.91
(excl. btw)
|
add to cart |
| BSP FF Bronze CB 491K 63 DN25 - 1'' | 1424406 | S1000413 |
€186.67
(excl. btw)
|
add to cart |
| BSP FF Bronze CB 491K 63 DN32 - 1''1/4 | 1424407 | S1000414 |
€201.37
(excl. btw)
|
add to cart |
| BSP FF Bronze CB 491K 90 DN40 - 1''1/2 | 1424508 | S1000415 |
€279.91
(excl. btw)
|
add to cart |
| BSP FF Bronze CB 491K 110 DN50 - 2'' | 1424609 | S1000416 |
€388.26
(excl. btw)
|
add to cart |
