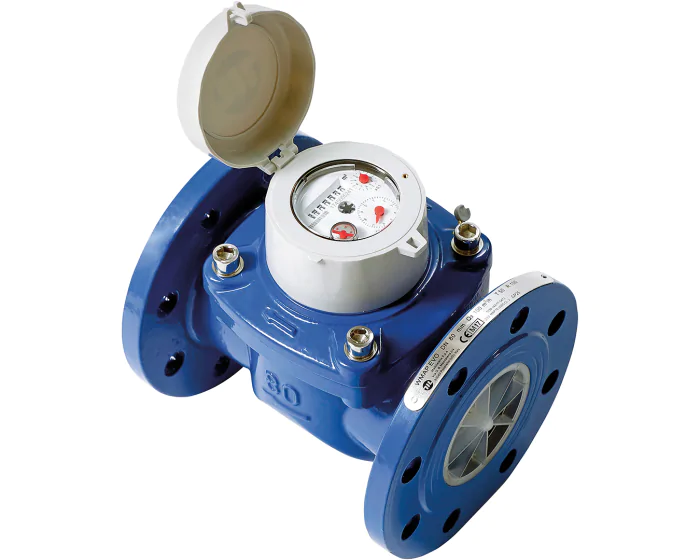

Woltmann PN16 MID R100 meter, cold water model, pre-equipped, ACS certified, 4MS, with dry dial IP68, protective cover, cast iron body for water distribution networks.
| Specification | Value |
|---|---|
| Construction standard | MID 2014/32/UE - EN 14154 - ISO 4064 |
| Horizontal transition flow rate (L/h) | 500 |
| Meter type | Flanged water meter |
| Type of transmission | Pulse outlet |
| Horizontal/vertical mounting | Horizontal and vertical |
| Brand | MADDALENA |
| Transmission | On-site reading |
| Dial | Dry |
| Jet | Woltmann |
| Application | Water supply and distribution network |
| DN | DN50 - 2'' |
| Face to Face (mm) | 200.0 |
| Body material | Cast iron |
| PS (bar) | 16 |
| Connections | A Flanges |
| TS max (°C) | 0 |
| TS min (°C) | 50 |
| Warranty period | 2 years |
| Nominal flow rate (m³/h) | 40.00 |
| Accuracy class meters | MID R100H - MID R100VH |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| A Flanges Cast iron DN50 - 2'' | 2738050 | S1013410 |
€483.41
(excl. btw)
|
add to cart |
| A Flanges Cast iron DN65 - 2''1/2 | 2738065 | S1013411 |
€525.03
(excl. btw)
|
add to cart |
| A Flanges Cast iron DN80 - 3'' | 2738080 | S1013412 |
€556.39
(excl. btw)
|
add to cart |
| A Flanges Cast iron DN100 - 4'' | 2738100 | S1013413 |
€637.47
(excl. btw)
|
add to cart |
| A Flanges Cast iron DN125 - 5'' | 2738125 | S1013414 |
€774.06
(excl. btw)
|
add to cart |
| A Flanges Cast iron DN150 - 6'' | 2738150 | S1013415 |
€1,106.79
(excl. btw)
|
add to cart |
| A Flanges Cast iron DN200 - 8'' | 2738200 | S1013416 |
€1,349.86
(excl. btw)
|
add to cart |
