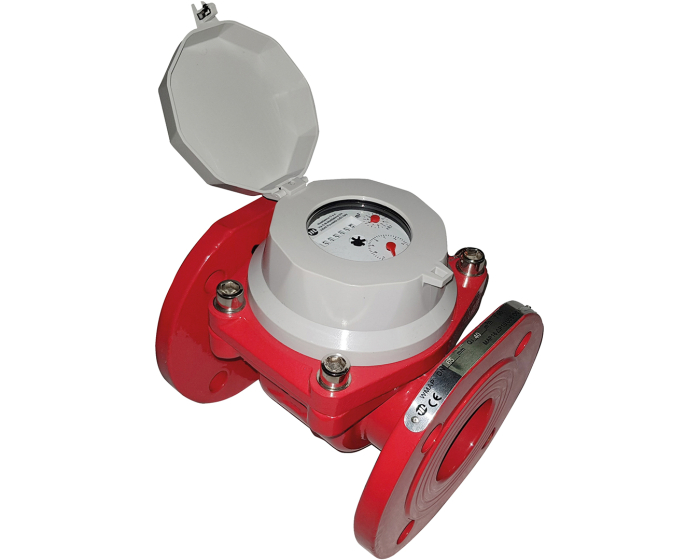

Woltmann PN16 MID R100 meter, hot water model, pre-equipped, ACS certified, 4MS, with dry dial IP68, protective cover, cast iron body for water distribution networks.
| Specification | Value |
|---|---|
| Horizontal transition flow rate (L/h) | 500 |
| Meter type | Flanged water meter |
| Type of transmission | Pulse outlet |
| Horizontal/vertical mounting | Horizontal and vertical |
| Brand | MADDALENA |
| Transmission | On-site reading |
| Dial | Dry |
| Jet | Woltmann |
| Application | Heating / Sanitary / Drinking water / Air conditioning / Irrigation |
| DN | DN50 - 2'' |
| Face to Face (mm) | 200.0 |
| Body material | Cast iron |
| PS (bar) | 16 |
| Connections | A Flanges |
| TS max (°C) | 30 |
| TS min (°C) | 90 |
| Warranty period | 2 years |
| Nominal flow rate (m³/h) | 40.00 |
| Accuracy class meters | MID R80H - MID R40VH |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| A Flanges Cast iron DN50 - 2'' | 2739050 | S1013443 |
€531.71
(excl. btw)
|
add to cart |
| A Flanges Cast iron DN65 - 2''1/2 | 2739065 | S1013444 |
€577.53
(excl. btw)
|
add to cart |
| A Flanges Cast iron DN80 - 3'' | 2739080 | S1013445 |
€612.01
(excl. btw)
|
add to cart |
| A Flanges Cast iron DN100 - 4'' | 2739100 | S1013446 |
€701.21
(excl. btw)
|
add to cart |
| A Flanges Cast iron DN125 - 5'' | 2739125 | S1013447 |
€851.49
(excl. btw)
|
add to cart |
| A Flanges Cast iron DN150 - 6'' | 2739150 | S1013448 |
€1,217.44
(excl. btw)
|
add to cart |
| A Flanges Cast iron DN200 - 8'' | 2739200 | S1013449 |
€1,484.83
(excl. btw)
|
add to cart |
