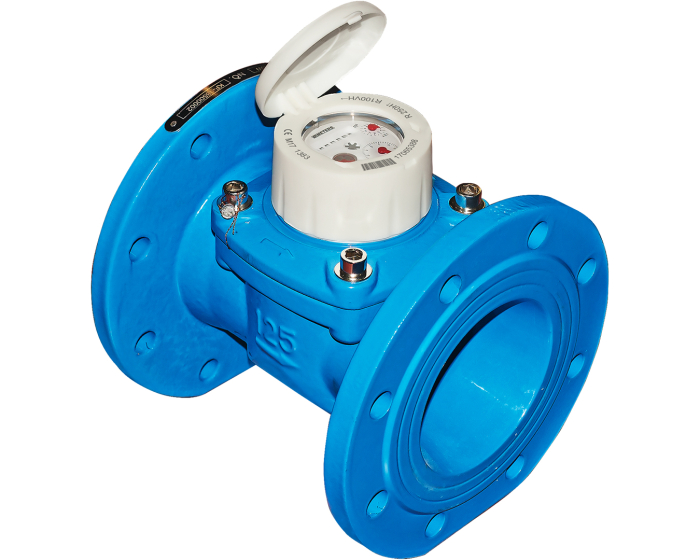

Woltmann flanged meter PN16, cold water model, ACS, large flow turbine with dry dial for water distribution networks.
| Specification | Value |
|---|---|
| Construction standard | MID 2014/32/UE - 2014/32/UE - EN 14154 |
| Horizontal transition flow rate (L/h) | 640 |
| Meter type | Flanged water meter |
| Type of transmission | Pulse outlet / Radio / Wired M-Bus |
| Horizontal/vertical mounting | Horizontal and vertical |
| Brand | B METERS |
| Transmission | Radio Walk By / Fixed / wired M-Bus |
| Dial | Dry |
| Jet | Woltmann |
| Application | Water supply and distribution network |
| DN | DN50 - 2'' |
| Face to Face (mm) | 200.0 |
| Body material | Cast iron |
| PS (bar) | 16 |
| Connections | A Flanges |
| TS max (°C) | 0 |
| TS min (°C) | 30 |
| Warranty period | 2 years |
| Nominal flow rate (m³/h) | 40.00 |
| Accuracy class meters | MID R100H - MID R100VH |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| A Flanges Cast iron DN50 - 2'' | 1738050 | S1013347 |
€423.17
(excl. btw)
|
add to cart |
| A Flanges Cast iron DN65 - 2''1/2 | 1738065 | S1013348 |
€478.39
(excl. btw)
|
add to cart |
| A Flanges Cast iron DN80 - 3'' | 1738080 | S1013349 |
€515.16
(excl. btw)
|
add to cart |
| A Flanges Cast iron DN100 - 4'' | 1738100 | S1013350 |
€625.54
(excl. btw)
|
add to cart |
| A Flanges Cast iron DN125 - 5'' | 1738125 | S1013351 |
€927.29
(excl. btw)
|
add to cart |
| A Flanges Cast iron DN150 - 6'' | 1738150 | S1013352 |
€1,170.16
(excl. btw)
|
add to cart |
| A Flanges Cast iron DN200 - 8'' | 1738200 | S1013353 |
€1,523.41
(excl. btw)
|
add to cart |
