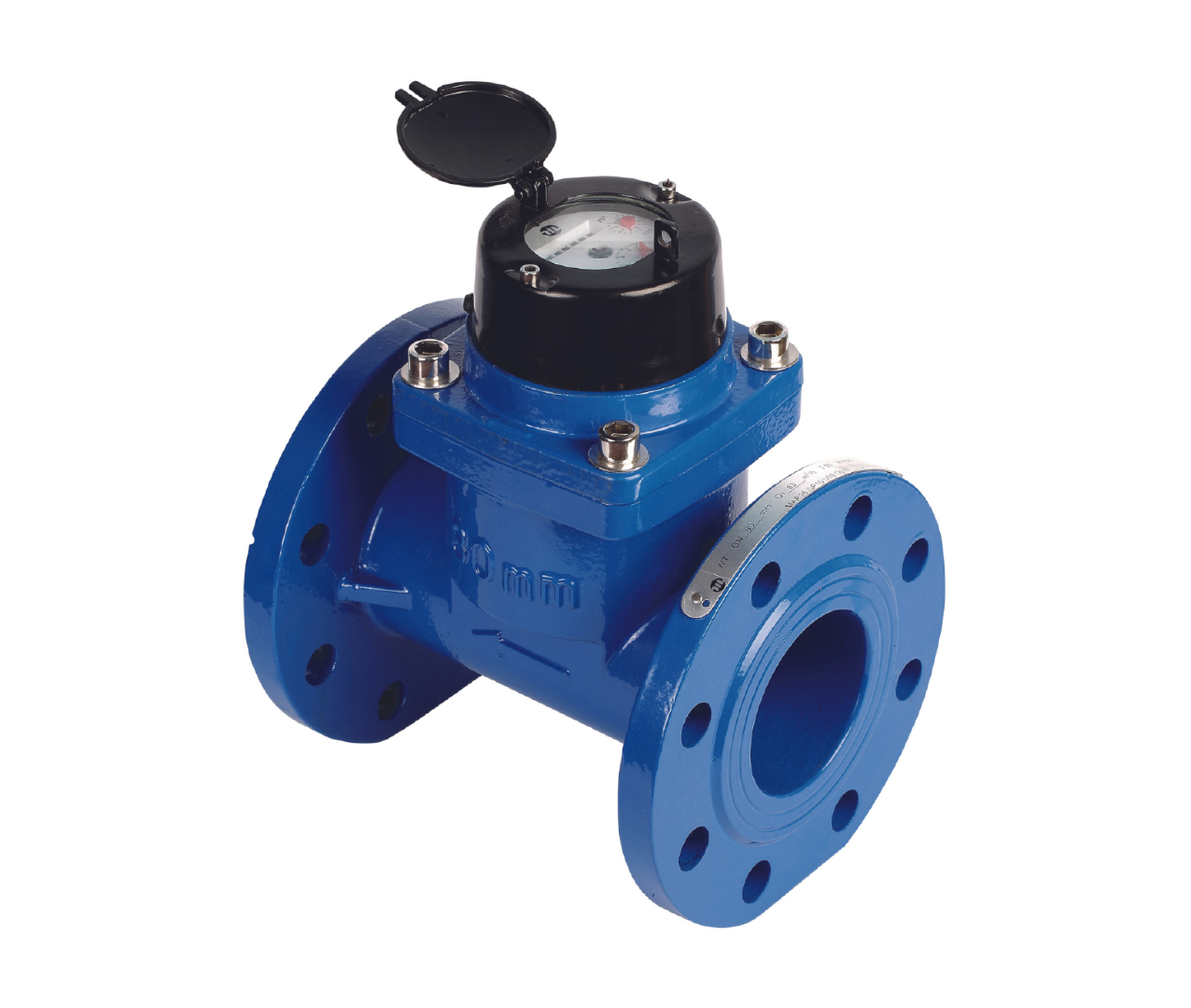

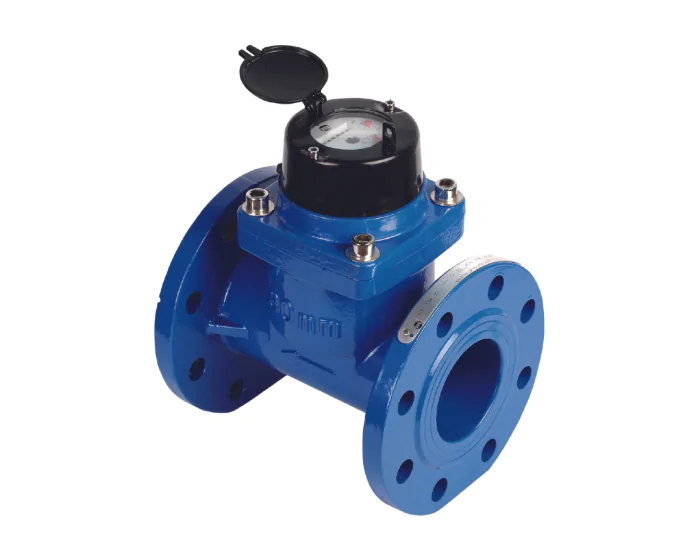

Discover the 2720 tangential turbine irrigation meter, cold water model, PN16, featuring a dry dial, magnetic transmission, and MID R40 certification for irrigation.
| Specification | Value |
|---|---|
| Meter type | Flanged water meter |
| Horizontal/vertical mounting | Horizontal and vertical |
| Brand | MADDALENA |
| Dial | Dry |
| Meter bore (diameter) | 50 |
| DN | DN50 - 2'' |
| Face to Face (mm) | 200 |
| PS (bar) | 16 |
| Connections | A Flanges |
| TS max (°C) | 30 |
| TS min (°C) | 0 |
| Warranty period | 2 years |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| A Flanges 50 | 2720050 | S1013750 |
€0.00
(excl. btw)
|
add to cart |
| A Flanges 65 | 2720065 | S1013751 |
€0.00
(excl. btw)
|
add to cart |
| A Flanges 80 | 2720080 | S1013752 |
€0.00
(excl. btw)
|
add to cart |
| A Flanges 100 | 2720100 | S1013753 |
€0.00
(excl. btw)
|
add to cart |
| A Flanges 125 | 2720125 | S1013754 |
€0.00
(excl. btw)
|
add to cart |
| A Flanges 150 | 2720150 | S1013755 |
€0.00
(excl. btw)
|
add to cart |
| A Flanges 200 | 2720200 | S1013756 |
€0.00
(excl. btw)
|
add to cart |
