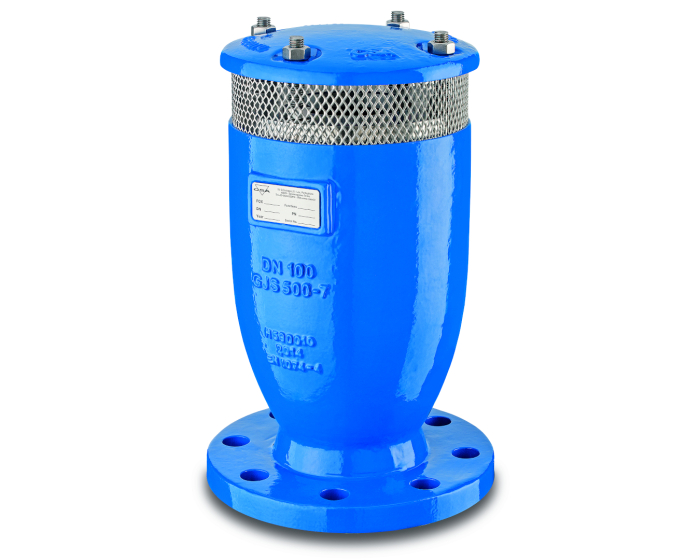

Name: Triple effect full bore ductile iron air release valve 31310
SKU: 10732
Price: 291.32857142857 EUR
Availability: InStock

Triple effect full bore ductile iron air release valve 31310

€291.33 (excl. btw)

Triple effect full bore ductile iron air release valve 31310 1"

In stock Subject prior to sales
Categories : Overig

Documenten:

Specification	Value
DN inches NPS	1''
Construction standard	EN 1074-4
Thread standard	ISO 7-1 Rp
Application	Protection of the drinking water network
DN	DN25 - 1''
Fluid	Hot water / Cold water / Drinking water / Compressed air / Domestic fuel
Body material	Ductile iron
PS (bar)	16
Connections	BSP F
TS max (°C)	60
TS min (°C)	0
Warranty period	2 years

If you have any questions about this product, please feel free to contact us.

Product Name	Product Number	EVAC Number	Price	Add to Cart
10733	BSP F Ductile iron DN25 - 1'' BSP F	3131006	S1010573	€291.33 (excl. btw)	add to cart
10734	BSP F Ductile iron DN50 - 2'' BSP F	3131009	S1010574	€381.50 (excl. btw)	add to cart
10735	BSP F Ductile iron DN50 - 2'' Flanged PN10/16	3131050	S1010575	€468.21 (excl. btw)	add to cart
10736	BSP F Ductile iron DN80 - 3'' Flanged PN10/16	3131080	S1010576	€606.94 (excl. btw)	add to cart
10737	BSP F Ductile iron DN100 - 4'' Flanged PN10/16	3131100	S1010577	€797.69 (excl. btw)	add to cart
10738	BSP F Ductile iron DN150 - 6'' Flanged PN10/16	3131150	S1010578	€1,647.41 (excl. btw)	add to cart
10739	BSP F Ductile iron DN200 - 8'' Flanged PN16	3131200	S1010579	€2,774.59 (excl. btw)	add to cart
