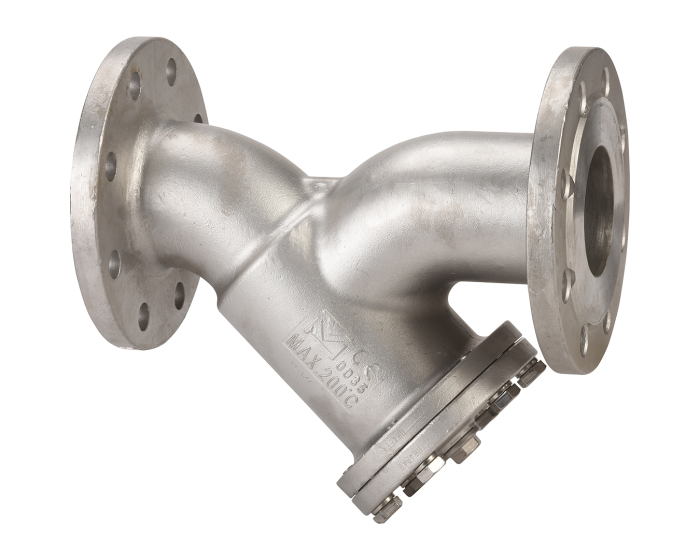

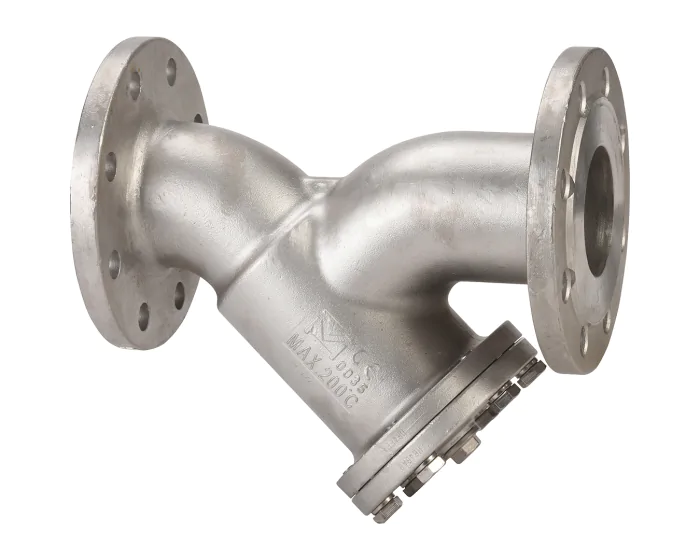

The 240L series Y-strainer consists of a stainless steel body, flanges RF PN16, a bolted bonnet with BSP threaded drain plug and a TFM 4215 gasket. It is suitable for low temperature fluids in chemicals, pharmaceuticals or petrochemicals.
| Specification | Value |
|---|---|
| DN inches NPS | 2'' |
| Option certificate 3.1 | Yes |
| DN metric | 50/60 |
| Bonnet material | Stainless steel ASTM A351 CF8M |
| Mounting direction | Horizontal or vertical |
| Screen material | AISI 304 stainless steel |
| Construction standard | EN 12516-1 |
| CE risk category | III Module H |
| EN face-to-face standard | EN 558 series 1 |
| DIN face-to-face standard | DIN 3202-1 F1 |
| Face to face standard | EN 558 Series 1. DIN 3202-1 F1. NF 29354 |
| Flange type | RF |
| Accessories for flanges | Stainless steel ASTM A351 CF8M |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 130.0 |
| Fluid | Acids |
| Gasket | PTFE |
| Kv (m³/h) | 2.6 |
| Body material | Stainless steel CF8M (1.4408) |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| Screen (mesh) | 8/10° |
| TS max (°C) | 200 |
| TS min (°C) | -40 |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| CE | Yes |
| Filter design | Y |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Stainless steel CF8M (1.4408) DN15 - 1/2'' | 240L015 | S1011320 |
€109.14
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) DN20 - 3/4'' | 240L020 | S1011321 |
€119.06
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) DN25 - 1'' | 240L025 | S1011322 |
€134.94
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) DN32 - 1''1/4 | 240L032 | S1011323 |
€178.60
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) DN40 - 1''1/2 | 240L040 | S1011324 |
€245.84
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) DN50 - 2'' | 240L050 | S1011325 |
€281.80
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) DN65 - 2''1/2 | 240L065 | S1011326 |
€406.64
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) DN80 - 3'' | 240L080 | S1011327 |
€515.90
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) DN100 - 4'' | 240L100 | S1011328 |
€743.73
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) DN125 - 5'' | 240L125 | S1011329 |
€992.13
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) DN150 - 6'' | 240L150 | S1011330 |
€1,488.20
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) DN200 - 8'' | 240L200 | S1011331 |
€2,379.33
(excl. btw)
|
add to cart |
