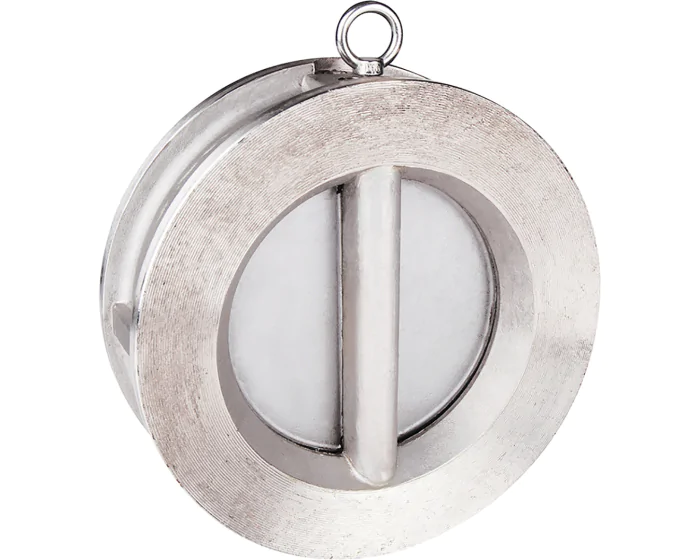

The 372 wafer swing check valve consists of a stainless steel body and dual plates, and a FKM seat. It complies with EN 558 Series 50 face-to-face. It is suitable for the chemical, pharmaceutical, petrochemical and hydraulic industries.
| Specification | Value |
|---|---|
| DN inches NPS | 2'' |
| Option certificate 3.1 | Yes |
| Mounting direction | Horizontal or vertical upward flow |
| Construction standard | API 594 |
| CE risk category | III Module H |
| EN face-to-face standard | EN 558 series 50 |
| Tightness test standard | API 598. table 6 |
| Closure member material | Stainless steel ASTM A351 CF8M |
| Application | Industry |
| DN | DN50 - 2'' |
| Face to Face (mm) | 54.0 |
| Fluid | Acids |
| Gasket | FKM |
| Body material | Stainless steel CF8M (1.4408) |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16/25/40 #150 |
| Seats | FKM |
| TS max (°C) | 180 |
| TS min (°C) | -10 |
| CE | Yes |
| Obturator type | Plate |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16/25/40 #150 Stainless steel CF8M (1.4408) Plate DN50 - 2'' Between flanges PN10/16/25/40 #150 | 372050 | S1011058 |
€100.07
(excl. btw)
|
add to cart |
| Between flanges PN10/16/25/40 #150 Stainless steel CF8M (1.4408) Plate DN65 - 2''1/2 Between flanges PN10/16/25/40 #150 | 372065 | S1011059 |
€118.23
(excl. btw)
|
add to cart |
| Between flanges PN10/16/25/40 #150 Stainless steel CF8M (1.4408) Plate DN80 - 3'' Between flanges PN10/16/25/40 #150 | 372080 | S1011060 |
€178.89
(excl. btw)
|
add to cart |
| Between flanges PN10/16/25/40 #150 Stainless steel CF8M (1.4408) Plate DN100 - 4'' Between flanges PN10/16/25/40 #150 | 372100 | S1011061 |
€224.64
(excl. btw)
|
add to cart |
| Between flanges PN10/16/25/40 #150 Stainless steel CF8M (1.4408) Plate DN125 - 5'' Between flanges PN10/16/25/40 #150 | 372125 | S1011062 |
€291.39
(excl. btw)
|
add to cart |
| Between flanges PN10/16/25/40 #150 Stainless steel CF8M (1.4408) Plate DN150 - 6'' Between flanges PN25 | 372150 | S1011063 |
€451.16
(excl. btw)
|
add to cart |
| Between flanges PN10/16/25/40 #150 Stainless steel CF8M (1.4408) Plate DN150 - 6'' Between flanges PN10/16 #150 | 372151 | S1011064 |
€451.16
(excl. btw)
|
add to cart |
| Between flanges PN10/16/25/40 #150 Stainless steel CF8M (1.4408) Plate DN200 - 8'' Between flanges PN25 | 372200 | S1011065 |
€841.74
(excl. btw)
|
add to cart |
| Between flanges PN10/16/25/40 #150 Stainless steel CF8M (1.4408) Plate DN200 - 8'' Between flanges PN10/16 #150 | 372201 | S1011066 |
€841.74
(excl. btw)
|
add to cart |
| Between flanges PN10/16/25/40 #150 Stainless steel CF8M (1.4408) Plate DN250 - 10'' Between flanges PN10/16 #150 | 372250 | S1011067 |
€1,150.06
(excl. btw)
|
add to cart |
| Between flanges PN10/16/25/40 #150 Stainless steel CF8M (1.4408) Plate DN300 - 12'' Between flanges PN10/16 #150 | 372300 | S1011068 |
€1,547.73
(excl. btw)
|
add to cart |
| Between flanges PN10/16/25/40 #150 Stainless steel CF8M (1.4408) Plate DN350 - 14'' Between flanges PN10/16 #150 | 372350 | S1011069 |
€3,288.93
(excl. btw)
|
add to cart |
| Between flanges PN10/16/25/40 #150 Stainless steel CF8M (1.4408) Plate DN400 - 16'' Between flanges PN10/16 #150 | 372400 | S1011070 |
€4,299.24
(excl. btw)
|
add to cart |
| Between flanges PN10/16/25/40 #150 Stainless steel CF8M (1.4408) Plate DN450 - 18'' Between flanges PN10/16 #150 | 372450 | S1011071 |
€5,715.84
(excl. btw)
|
add to cart |
| Between flanges PN10/16/25/40 #150 Stainless steel CF8M (1.4408) Plate DN500 - 20'' Between flanges PN10/16 #150 | 372500 | S1011072 |
€7,953.61
(excl. btw)
|
add to cart |
| Between flanges PN10/16/25/40 #150 Stainless steel CF8M (1.4408) Plate DN600 - 24'' Between flanges PN10/16 #150 | 372600 | S1011073 |
€9,263.06
(excl. btw)
|
add to cart |
