Name: Stainless steel solenoid valve SPU 225 servo-assisted normally closed
SKU: 5663
Price: 111.94285714286 EUR
Availability: InStock

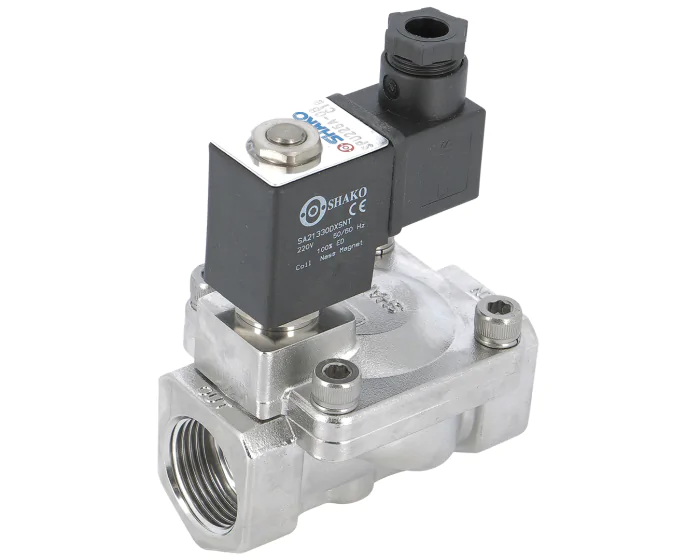

Stainless steel solenoid valve SPU 225 servo-assisted normally closed

€111.94 (excl. btw)

The solenoid valve type SPU 225 is a stainless steel 2/2-way normally closed (NC) servo-assisted solenoid valve, all voltages.

In stock Subject prior to sales
Categories : Magneetventielen

Documenten:

Certificate of conformity	Download
Technical datasheet	Download
Technical datasheet FR	Download
Technical datasheet FR	Download

Description
Technical Specifications

Specification	Value
Option certificate 3.1	No
Maximum delta P (bar)	10
Minimum delta P (bar)	0.5
Connector	T30
DN	DN10 - 3/8''
Face to Face (mm)	66.5
Protection index (IP)	IP 65
Kv (m³/h)	2.82
Body material	Stainless steel CF8M (1.4408)
Membrane material	FKM
Position	Normally closed
PS (bar)	10
Connections	BSP FF
Voltage	230 V AC
TS max (°C)	90
TS min (°C)	-10
Solenoid valve type	Servo-assisted
Solenoid pilot valve ways	2/2
Warranty period	1 year
CE	Excluded (Article 4. §3)

If you have any questions about this product, please feel free to contact us.

Product Name	Product Number	EVAC Number	Price	Add to Cart
5664	BSP FF Stainless steel CF8M (1.4408) 230 V AC DN10 - 3/8''	080001	S1005884	€111.94 (excl. btw)	add to cart
5665	BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' 230 V AC	080002	S1005885	€129.83 (excl. btw)	add to cart
5666	BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' 230 V AC	080003	S1005886	€197.13 (excl. btw)	add to cart
5667	BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' 230 V AC	080004	S1005887	€198.90 (excl. btw)	add to cart
5668	BSP FF Stainless steel CF8M (1.4408) DN32 - 1''1/4 230 V AC	080005	S1005888	€259.84 (excl. btw)	add to cart
5669	BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 230 V AC	080006	S1005889	€261.41 (excl. btw)	add to cart
5670	BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' 230 V AC	080007	S1005890	€360.41 (excl. btw)	add to cart
5671	BSP FF Stainless steel CF8M (1.4408) 24 V AC DN10 - 3/8''	080011	S1005891	€111.94 (excl. btw)	add to cart
5672	BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' 24 V AC	080012	S1005892	€129.83 (excl. btw)	add to cart
5673	BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' 24 V AC	080013	S1005893	€197.13 (excl. btw)	add to cart
5674	BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' 24 V AC	080014	S1005894	€198.90 (excl. btw)	add to cart
5675	BSP FF Stainless steel CF8M (1.4408) DN32 - 1''1/4 24 V AC	080015	S1005895	€259.84 (excl. btw)	add to cart
5676	BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 24 V AC	080016	S1005896	€261.41 (excl. btw)	add to cart
5677	BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' 24 V AC	080017	S1005897	€360.41 (excl. btw)	add to cart
5678	BSP FF Stainless steel CF8M (1.4408) 24 V DC DN10 - 3/8''	080051	S1005898	€111.94 (excl. btw)	add to cart
5679	BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' 24 V DC	080052	S1005899	€129.83 (excl. btw)	add to cart
5680	BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' 24 V DC	080053	S1005900	€197.13 (excl. btw)	add to cart
5681	BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' 24 V DC	080054	S1005901	€198.90 (excl. btw)	add to cart
5682	BSP FF Stainless steel CF8M (1.4408) DN32 - 1''1/4 24 V DC	080055	S1005902	€259.84 (excl. btw)	add to cart
5683	BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 24 V DC	080056	S1005903	€261.41 (excl. btw)	add to cart
5684	BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' 24 V DC	080057	S1005904	€360.41 (excl. btw)	add to cart
