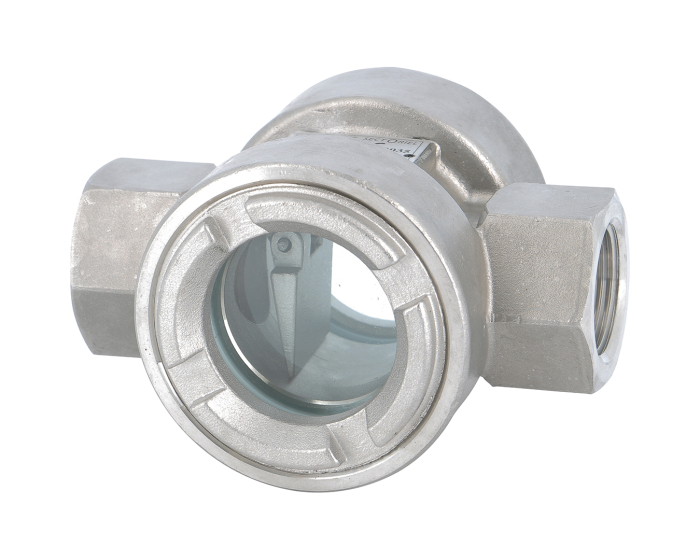

Sight glass flow controller, stainless steel body CF8M (1.4408), PS: 16 bar, TS: 180°C, ATEX approval, G or NPT threaded.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 105.0 |
| Gasket | PTFE |
| Body material | Stainless steel CF8M (1.4408) |
| ATEX protection mode | Ex c |
| PS (bar) | 16 |
| Connections | NPT FF |
| Surface temperature | TX |
| TS max (°C) | 180 |
| TS min (°C) | -20 |
| Sight glass type | With flapper |
| Direction | Unidirectional |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
| CE | Risk category II |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| NPT FF Stainless steel CF8M (1.4408) DN15 - 1/2'' NPT FF | 223804 | S1013618 |
€152.49
(excl. btw)
|
add to cart |
| NPT FF Stainless steel CF8M (1.4408) DN20 - 3/4'' NPT FF | 223805 | S1013619 |
€161.14
(excl. btw)
|
add to cart |
| NPT FF Stainless steel CF8M (1.4408) DN25 - 1'' NPT FF | 223806 | S1013620 |
€167.46
(excl. btw)
|
add to cart |
| NPT FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 NPT FF | 223808 | S1013621 |
€257.29
(excl. btw)
|
add to cart |
| NPT FF Stainless steel CF8M (1.4408) DN50 - 2'' NPT FF | 223809 | S1013622 |
€277.79
(excl. btw)
|
add to cart |
| NPT FF Stainless steel CF8M (1.4408) DN15 - 1/2'' BSP FF | 224004A | S1013623 |
€145.07
(excl. btw)
|
add to cart |
| NPT FF Stainless steel CF8M (1.4408) DN20 - 3/4'' BSP FF | 224005A | S1013624 |
€170.83
(excl. btw)
|
add to cart |
| NPT FF Stainless steel CF8M (1.4408) DN25 - 1'' BSP FF | 224006A | S1013625 |
€184.93
(excl. btw)
|
add to cart |
| NPT FF Stainless steel CF8M (1.4408) DN32 - 1''1/4 BSP FF | 224007A | S1013626 |
€277.51
(excl. btw)
|
add to cart |
| NPT FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 BSP FF | 224008A | S1013627 |
€278.50
(excl. btw)
|
add to cart |
| NPT FF Stainless steel CF8M (1.4408) DN50 - 2'' BSP FF | 224009A | S1013628 |
€350.79
(excl. btw)
|
add to cart |
