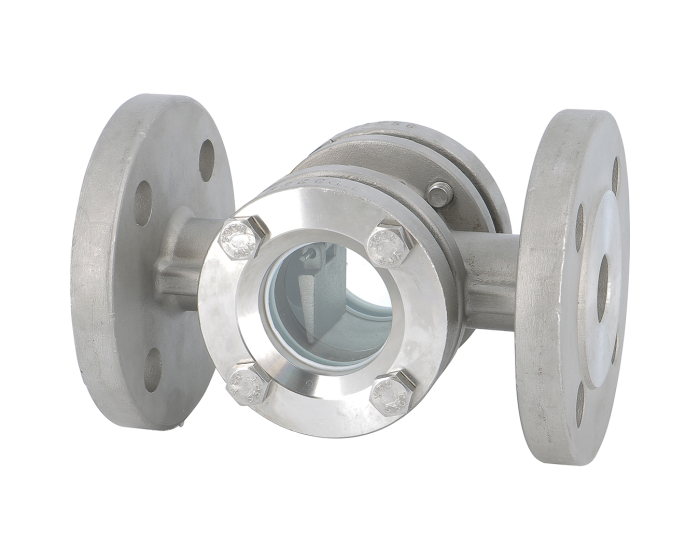

Swinging sight glass controller, stainless steel body CF8M (1.4408), double tempered glass, PS: 16 bar, TS: 180°C, with flanges PN16 RF or ANSI 150.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 130.0 |
| Gasket | PTFE |
| Body material | Stainless steel CF8M (1.4408) |
| ATEX protection mode | Ex c |
| PS (bar) | 16 |
| Connections | Flanged PN16 |
| Surface temperature | TX |
| TS max (°C) | 180 |
| TS min (°C) | -20 |
| Sight glass type | With flapper |
| Direction | Unidirectional |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16 Stainless steel CF8M (1.4408) DN15 - 1/2'' Flanged PN16 | 2245015A | S1013651 |
€227.93
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) DN20 - 3/4'' Flanged PN16 | 2245020A | S1013652 |
€257.13
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) DN25 - 1'' Flanged PN16 | 2245025A | S1013653 |
€348.50
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) DN32 - 1''1/4 Flanged PN16 | 2245032A | S1013654 |
€446.56
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) DN40 - 1''1/2 Flanged PN16 | 2245040A | S1013655 |
€473.86
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) DN50 - 2'' Flanged PN16 | 2245050A | S1013656 |
€580.31
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) DN65 - 2''1/2 Flanged PN16 | 2245065A | S1013657 |
€752.99
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) DN80 - 3'' Flanged PN16 | 2245080A | S1013658 |
€810.23
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) DN100 - 4'' Flanged PN16 | 2245100A | S1013659 |
€1,104.54
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) DN125 - 5'' Flanged PN16 | 2245101A | S1013660 |
€2,216.31
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) DN150 - 6'' Flanged PN16 | 2245102A | S1013661 |
€2,831.96
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) DN15 - 1/2'' Flanged #150 PN20 | 2246015 | S1013662 |
€217.84
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) DN20 - 3/4'' Flanged #150 PN20 | 2246020 | S1013663 |
€241.53
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) DN25 - 1'' Flanged #150 PN20 | 2246025 | S1013664 |
€312.56
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) DN40 - 1''1/2 Flanged #150 PN20 | 2246040 | S1013665 |
€397.80
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) DN50 - 2'' Flanged #150 PN20 | 2246050 | S1013666 |
€520.93
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) DN80 - 3'' Flanged #150 PN20 | 2246080 | S1013667 |
€828.83
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) DN100 - 4'' Flanged #150 PN20 | 2246100 | S1013668 |
€1,121.60
(excl. btw)
|
add to cart |
