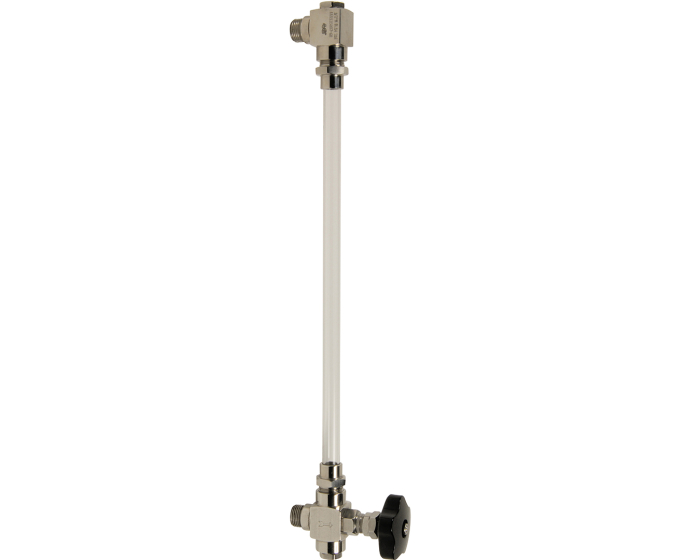

Body in stainless steel 1.4401. Needle valve and drain plug. PS: 16 bar - TS: -50 / +200°C. Threaded and smooth tube fittings.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Tube diameter (mm) | 14 |
| DN | DN10 - 3/8'' |
| Gasket | PTFE/FKM |
| Body material | Stainless steel 316 (1.4401) |
| PS (bar) | 16 |
| Connections | BSP MM |
| TS max (°C) | 200 |
| TS min (°C) | -50 |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP MM Stainless steel 316 (1.4401) DN10 - 3/8'' 14 | 23125314N | S1013461 |
€236.79
(excl. btw)
|
add to cart |
| BSP MM Stainless steel 316 (1.4401) DN15 - 1/2'' 14 | 23125414N | S1013462 |
€236.79
(excl. btw)
|
add to cart |
| BSP MM Stainless steel 316 (1.4401) DN15 - 1/2'' 16 | 23125416N | S1013463 |
€236.79
(excl. btw)
|
add to cart |
| BSP MM Stainless steel 316 (1.4401) DN15 - 1/2'' 24 | 23125424N | S1013464 |
€350.44
(excl. btw)
|
add to cart |
| BSP MM Stainless steel 316 (1.4401) DN25 - 1'' 20 | 23125620N | S1013465 |
€464.10
(excl. btw)
|
add to cart |
