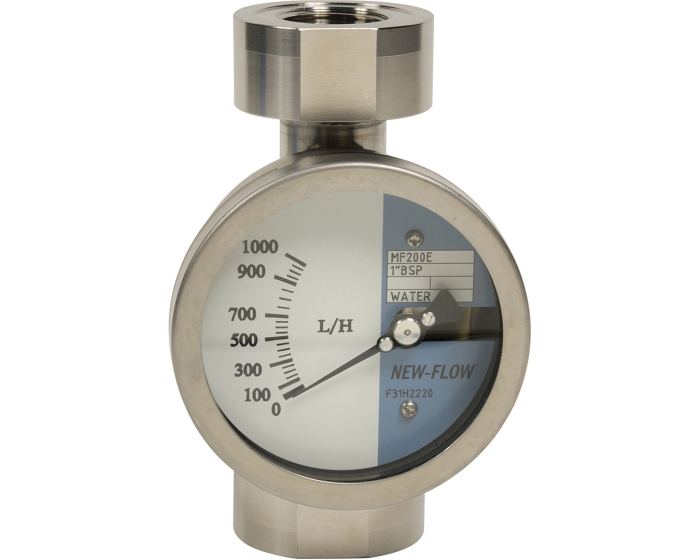

316 stainless steel body and float. Graduation for liquid in L/h. Accuracy: +/-2 %. PS : 10 bar - TS : -40 / +180°C. Vertical upflow mounting. Threaded G.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Dial (mm) | 100 |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 160.0 |
| Fluid | Water |
| Protection index (IP) | IP 65 |
| Housing material | Stainless steel 316 |
| Body material | Stainless steel 316 (1.4401) |
| Accuracy | 0.0 |
| PS (bar) | 10 |
| Connections | BSP FF |
| TS max (°C) | 180 |
| TS min (°C) | -40 |
| Direction | Unidirectional |
| Warranty period | 1 year |
| CE | Risk category II |
| Total height (mm) | 160 |
| Flow rate range (L/h) | 15 / 150 |
| Maximum range (bar) | 10 |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel 316 (1.4401) DN15 - 1/2'' 15 / 150 | 2284001 | S1013466 |
€336.63
(excl. btw)
|
add to cart |
| BSP FF Stainless steel 316 (1.4401) DN15 - 1/2'' 40 / 400 | 2284002 | S1013467 |
€336.63
(excl. btw)
|
add to cart |
| BSP FF Stainless steel 316 (1.4401) DN15 - 1/2'' 60 / 600 | 2284003 | S1013468 |
€336.63
(excl. btw)
|
add to cart |
| BSP FF Stainless steel 316 (1.4401) DN20 - 3/4'' 75 / 750 | 2284004 | S1013469 |
€400.91
(excl. btw)
|
add to cart |
| BSP FF Stainless steel 316 (1.4401) DN25 - 1'' 100 / 1000 | 2284005 | S1013470 |
€403.86
(excl. btw)
|
add to cart |
| BSP FF Stainless steel 316 (1.4401) DN40 - 1''1/2 200 / 2000 | 2284006 | S1013471 |
€405.83
(excl. btw)
|
add to cart |
| BSP FF Stainless steel 316 (1.4401) DN40 - 1''1/2 400 / 4000 | 2284007 | S1013472 |
€405.83
(excl. btw)
|
add to cart |
